Model ATF™ End Control with Sensor Plus™

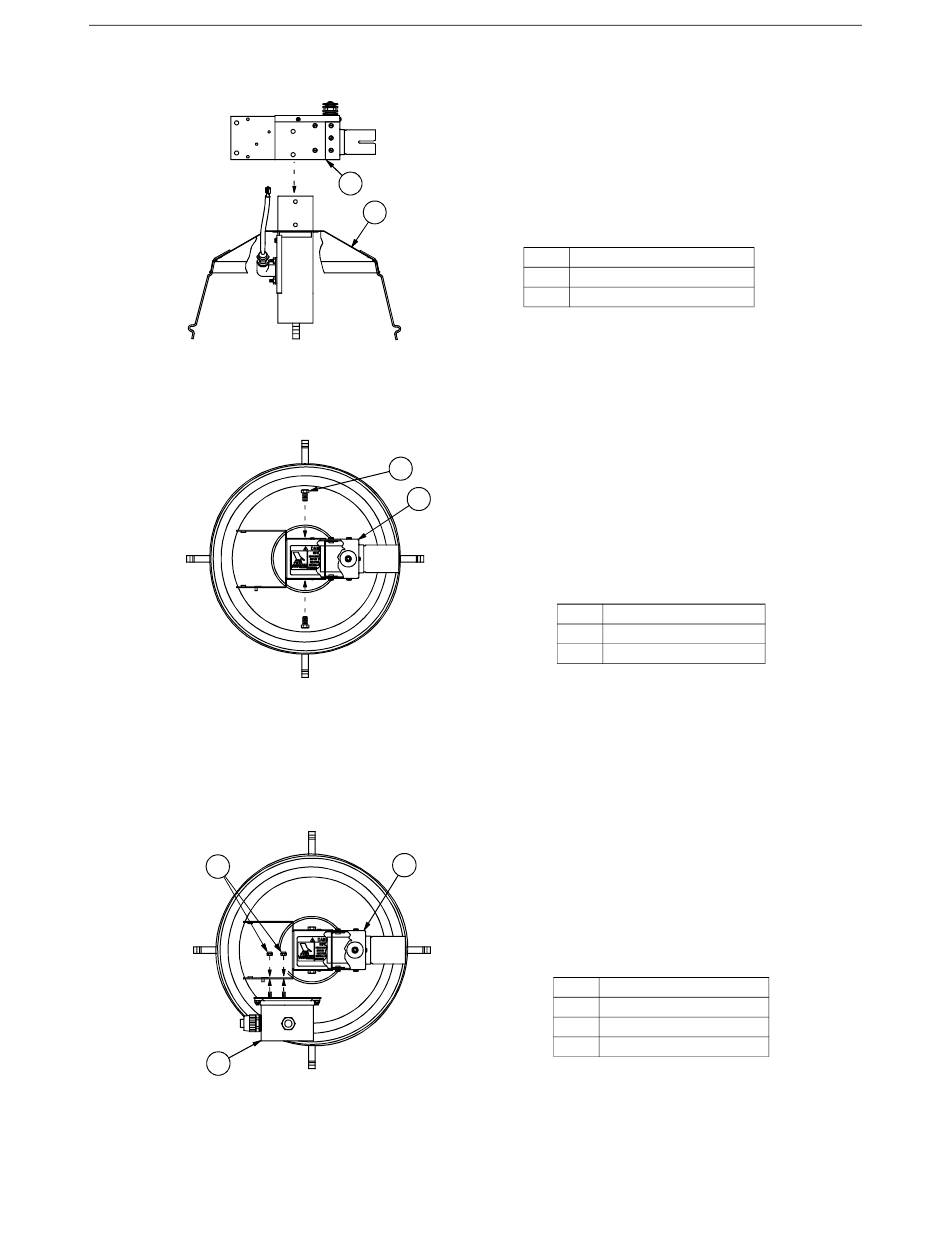

4. Assemble the ATF End Control Body (item 1) to the Drop Tube with Pan Shield (item 2) by sliding the
ATF End Control Body (item 1) into the top of the Drop Tube with Pan Shield (item 2).
Figure 4. Assembling the ATF End Control to the Drop Tube Assembly
5. Secure the ATF End Control Body (item 2) to the Drop Tube Assembly using the included 1/4-20 Hex
Head Bolts (item 1).
6. Route the Sensor Switch Assembly Cord up through the black Water Tight Connector on the bottom of
the Relay Box (item 1). Tighten the Water Tight Connector around the Sensor Switch Assembly Cord
making sure there is enough cord inside the Relay Box (item 1) to plug into the Socket on the Circuit
Board. Mount the Relay Box to the side of the ATF End Control Body (item 3) and secure using the
included #10-32 Hex Lock Nuts (item 2).
2
1
Figure 6. Installing the Relay Box to the ATF End Control Body
2
1
2
1630-4 11/99
1
2
1630-5 11/99
Figure 5. Securing the ATF End Control Body
3
1630-6 11/99
Item Description
1 ATF End Control Body
2 Drop Tube with Pan Shield
Item Description
1 1/4-20 Hex Head Bolts
2 ATF End Control Body
Item Description
1 Relay Box
2 #10-32 Hex Lock Nuts
3 ATF End Control Body
MF1630B
