Model ATF End Control Update Kit
The Model ATF End Control Update Kit is designed to replace an existing mechanical switch with a Sensor
Plus switch.
1. Disconnect the power at the circuit breaker. Remove and discard the Power Cord (item 6), 90° Romex
Connector (item 1) on the Motor, Motor Wires (item 3), Flex Conduit (item 2), Switch Box (item 4),
and Switch Box Mounting Plate (item 5).
1
2 3
4 5
2. Swing the Feeder Pan (item 5) down out of the way and remove the Drop Tube Assembly (item 3),
Feed Level Tube (item 1), and Feed Level Ring (item 2). Remove and discard the Switch Assembly
(item 4).
1
3. Reassemble following the instructions for the Model ATF End Control with Sensor Plus.
MF1630B
6
ELECTROCUTION
HAZARD
Do not open this c on-
tro l box u ntil e lectrical
power i s disconnected
at circuit breakers.
2527-25

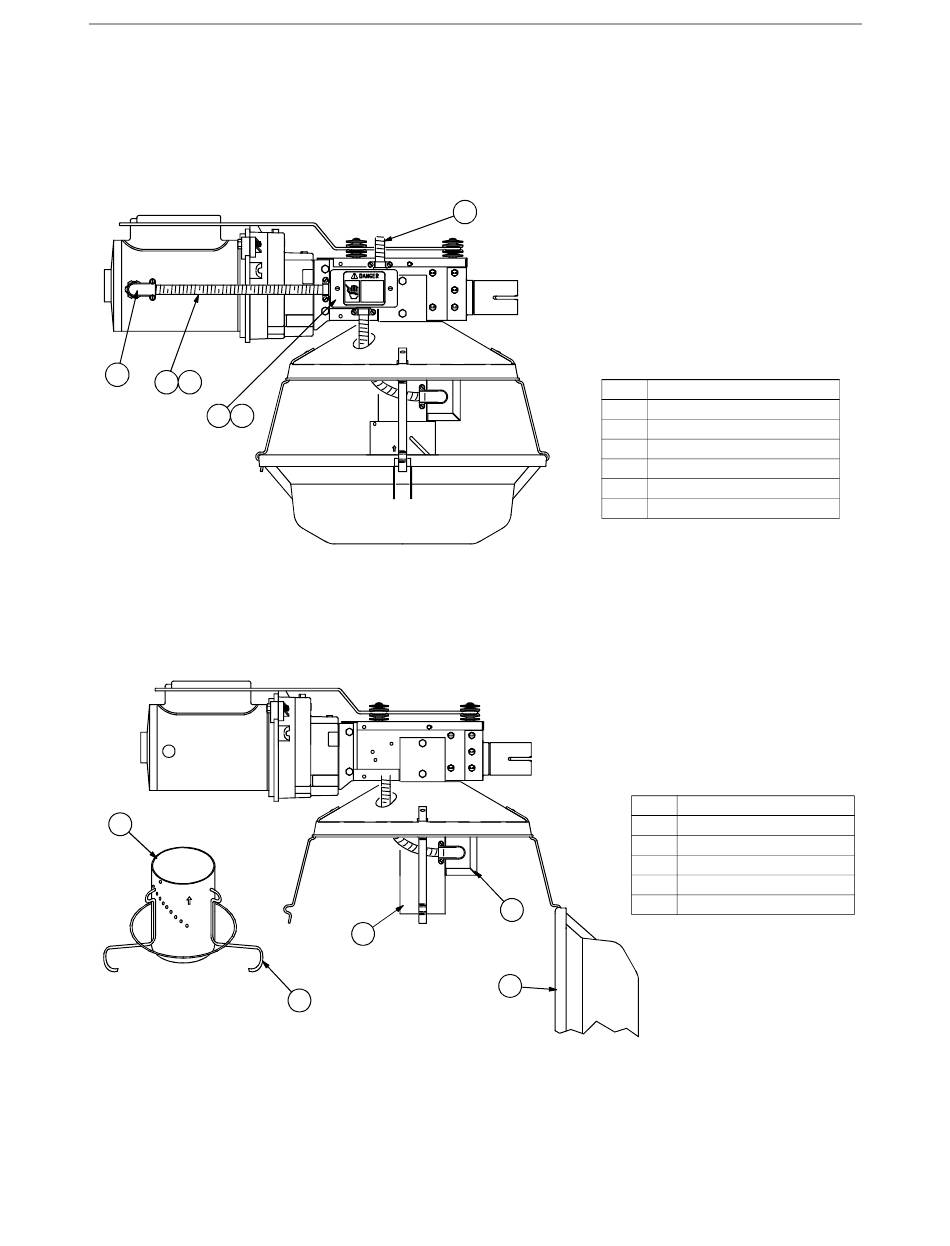

Figure ?. Removing parts that will be replaced
3
2
Figure ?. Removing the Switch Assembly
Model ATF™ End Control with Sensor Plus™
Item Description
1 90° Romex Connector
2 Flex Conduit
3 Motor Wires
4 Switch Box
5 Switch Box Mounting Plate
6 Power Cord
MF1630-12 8/2000
Item Description
1 Feed Level Tube
2 Feed Level Ring
3 Drop Tube Assembly
4 Switch Assembly
5 Feeder Pan
4
5
MF1630-13 8/2000
