7. Install the Anchor Plate (item 2) to the Drive Unit (item 1) using the included 1/4-20 Hex Head Bolts
(item 3).
8. Connect the Plug (item 8) from the Sensor Switch Assembly into the Socket (item 7) on the Circuit
Board (item 9). See Figure 8.
Install the Pan Shield Assembly onto the Feeder Pan (item 6) by hooking the Swing Down Pan Support
through the hole in the Feeder Pan (item 6). Install the Feed Level Tube (item 4) and the Feed Level
Ring (item 5) then swing the pan up and snap the remaining Pan Supports over the lip of the Feeder Pan
(item 6). See Figure 8.
Important Do not bend the Pan Supports during assembly.
Install the Drive Unit and Anchor Plate (item 1) to the ATF End Control Body (item 3) using the
included 1/4-20 Hex Head Bolts (item 2). See Figure 8.
1
2
2
MF1630B
1
2
3
1630-7 11/99

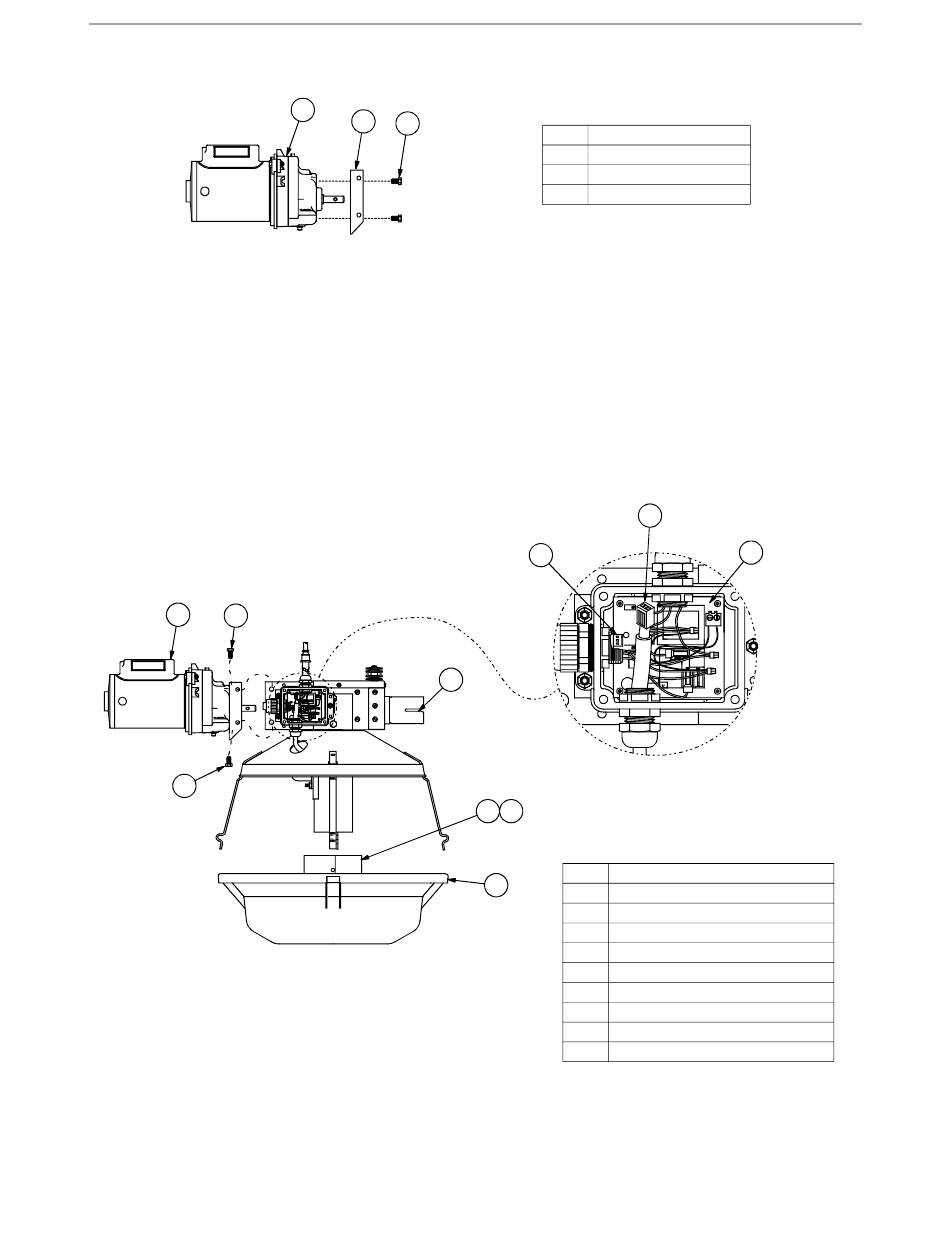

Figure 7. Installing the Anchor Plate to the Drive Unit
3
1630-8 8/2000
Figure 8. Assembling the components
Model ATF™ End Control with Sensor Plus™
Item Description
1 Drive Unit
2 Anchor Plate
3 1/4-20 Hex Head Bolts
8
7
4 5
Item Description
6
1 Drive Unit and Anchor Plate
2 1/4-20 Hex Head Bolt
3 ATF End Control Body
4 Feed Level Tube
5 Feed Level Ring
6 Feeder Pan
7 Socket
8 Plug
9 Circuit Board with Heater
9
3
