Model ATF™ End Control with Sensor Plus™

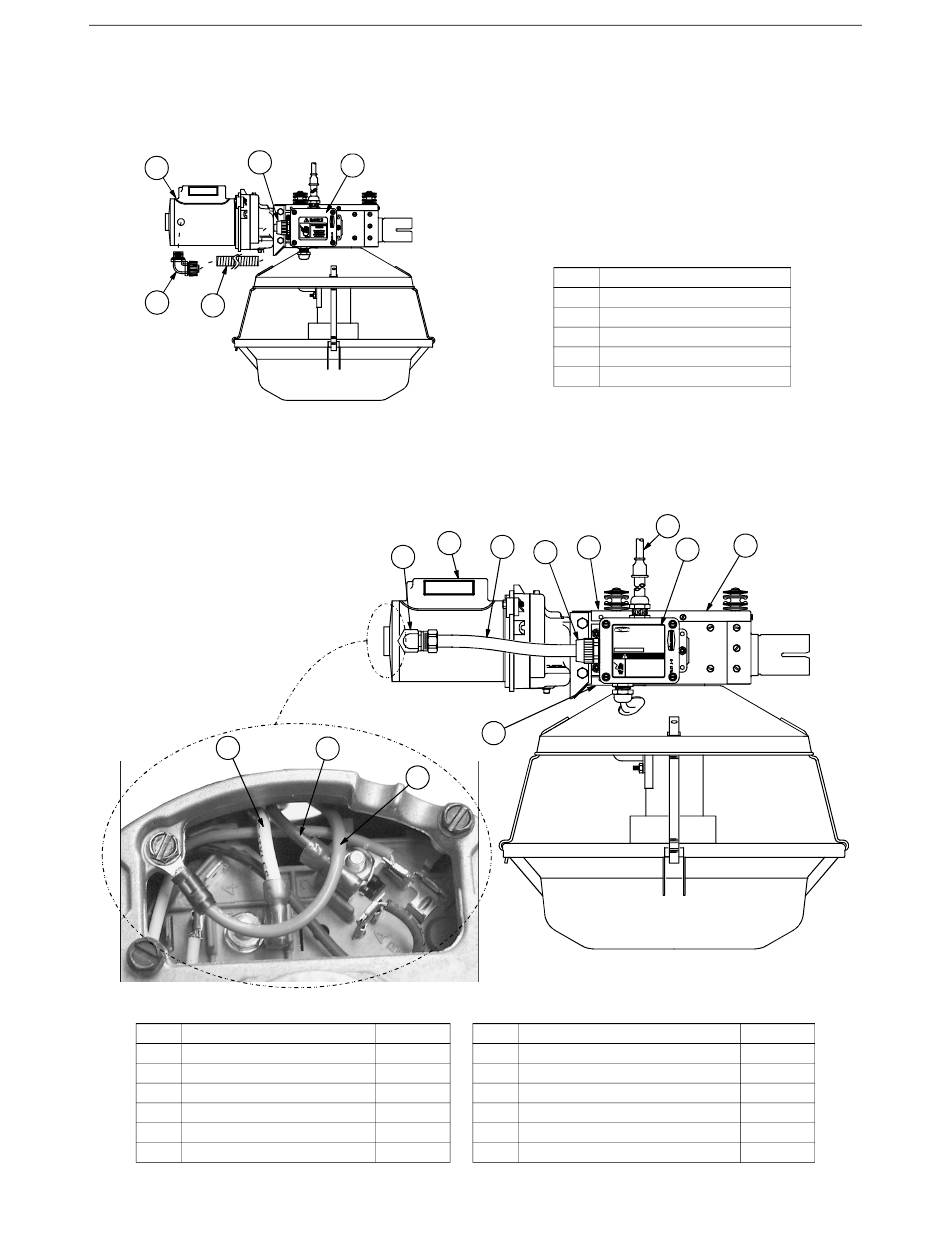

9. Install the 90° Metal Conduit Connector (item 1) to the Motor (item 3). Cut the Flex Conduit (item 2)
to length and assemble with the 90° Metal Conduit Connector (item 1). Route the three wires through
the Flex Conduit (item 2) into the Motor (item 3) and assemble the Flex Conduit (item 2) with the
Conduit Connector (item 4) at the Relay Box (item 5). Wire the Motor (item 3) in accordance with the
motor plate.
4
3
1
2
10. Install the Metal Water Tight Connector (item 1) in the Feed Line Motor (item 2). Cut the Flex Conduit
(item 3) to length. Slide the wires from the end control through the Flex Conduit (item 3). Install the
Flex Conduit (item 3) in the connectors. Connect the wires to the Feed Line Motor (item 2).
10
Item Description
1 Metal Water Tight Connector
2 Feed Line Motor
3 Flexible Conduit
4 Water Tight Connector
5 Safety Cover Assembly
6 Cord Assembly
4
5
1630-9 11/99
Figure 9. Wiring the ATF End Control
2
3
1
9
11
12
Part No. Item Description
23810 7
——— 8
26982-1 9
26980 10
27941 11
4999-100 12
Figure 4. Wiring the Motor
Item Description
1 90° Metal Conduit Connector
2 Flex Conduit
3 Motor
4 Conduit Connector
5 Relay Box
6
5
7
4
& + 2 5 (  7 , 0 ( ( 4 8 , 3 0 ( 1 7
$ ' , 9 , 6 , 2 1 2 ) & 7 % , 1 &
0 , / ) 2 5 ' , 1 ' , $ 1 $
     7 8 5 . ( < ( 1 ' & 2 1 7 5 2 /      7 8 5 . ( < ( 1 ' & 2 1 7 5 2 /      7 8 5 . ( < ( 1 ' & 2 1 7 5 2 /      7 8 5 . ( < ( 1 ' & 2 1 7 5 2 /
: , 7 + 6 ( 1 6 2 5 3 / 8 6 : , 7 + 6 ( 1 6 2 5 3 / 8 6
: , 7 + 6 ( 1 6 2 5 3 / 8 6 : , 7 + 6 ( 1 6 2 5 3 / 8 6
& 2 1 7 5 2 / 5 $ 7 , 1 * 6 , 1 3 8 7    9 $ &      + =
& 2 1 7 $ & 7 5 $ 7 , 1 * 6  + 3  #    9 $ &

D A N G E R
( / ( & 7 5 2 & 8 7 , 2 1 + $ = $ 5 '
Do not open this control box
until electrical power is
disconnected at circuit
breakers.
Product Identification Decal
Body Cover
Bottom Plate
White Wire
Black Wire
Green Wire
8
1630-14 8/2000
Part No.
2529-734
27942
27893
———
———
———
MF1630B
