Rola 59004 Instructions

Rola 59004 Instructions

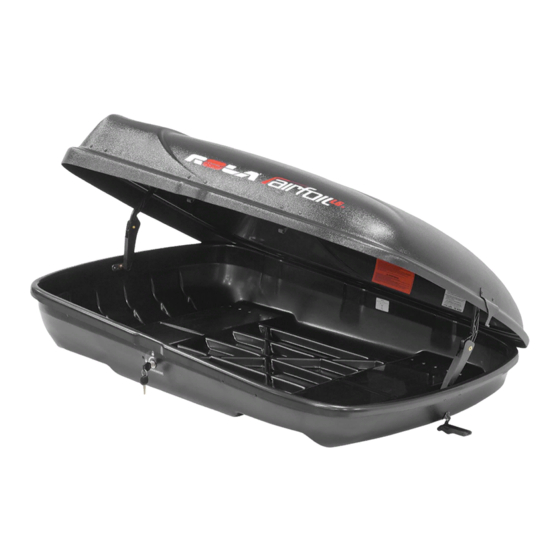

Roof top cargo box

Advertisement

Quick Links

Please read all instructions carefully before assembly, installation and/or use of this product.
DO NOT EXCEED the lowest of vehicle manufacturer's cross bar rating or cargo box weight limit of 110 Lb / 50 Kg.
DO NOT transport people, animals, or flammable liquids.
Before Transport You MUST: Securely fasten all loads in cargo box. Make sure all bolts, straps, knobs, and
locks are firmly attached and locked before every trip.
Distribute your cargo evenly inside the cargo box. Heavier items should be placed in the center.
Check the security of load, bolts, straps, knobs, and locks at fuel and rest stops.
Check for proper clearance between sunroof and cargo box before operating sunroof (if equipped).
THIS PRODUCT 23 Lbs. / 10 Kg
PARTS LIST:
ITEM
NO.
QTY.
PART NO.
1
4
117930
2
8
117931
3
4
117932
4
4
117933
5
2
117935
6
12
117964
1
2
Product Name:
WARNING
MAXIMUM LOAD LIMITS:
+
DESCRIPTION
U‐Bolt, M8 x 1.25 x 75mm
Clamping Knob, M8‐1.25
Clamp Block
Rubber Gasket
Nylon Strap
Hole Plug
Roof Top Cargo Box
Product Code:
Weight of Cargo
IMPORTANT NOTE:
This product will not fit vehicle:
• If vehicle cross bar size exceeds:
‐ width of 3‐1/4" (82mm)
‐ height of 1‐1/4" (32mm)
• If cross bars will not adjust to:
‐ 27‐1/2" (700mm) Minimum Spacing
‐ 34‐1/2" (876mm) Maximum Spacing
See step 3 for bar spacing
Unpack cargo box.
Open cargo box and remove mounting
hardware, keys, & instruction sheet.
With the help of another person place
cargo box on top of roof rack.
Line up the mounting holes in bottom of
cargo box with vehicle cross bars.
59004
Total Weight
=
DO NOT EXCEED
Your Rack's Limit
TOOLS REQUIRED:
Tape Measure

Advertisement

loading
Need help?

Need help?

Do you have a question about the 59004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rola 59004

  • Page 1 Roof Top Cargo Box Product Name: Product Code: 59004 Please read all instructions carefully before assembly, installation and/or use of this product. WARNING DO NOT EXCEED the lowest of vehicle manufacturer’s cross bar rating or cargo box weight limit of 110 Lb / 50 Kg.
  • Page 2 Roof Top Cargo Box Product Name: Product Code: 59004 Please read all instructions carefully before assembly, installation and/or use of this product. • If cross bars are adjustable, set to widest Minimum bar spacing = 27-1/2” (700mm) position of 34-1/2” (876mm) center to center of cross bar.
  • Page 3 All cargo can affect the vehicles driving behavior. • Never drive with any lock, lid, or knob in the unlocked or open position. • Remove your cargo box and gear before entering an automatic car wash or when not in use. ROLA CARGO CARRIERS ROOF RACKS...
