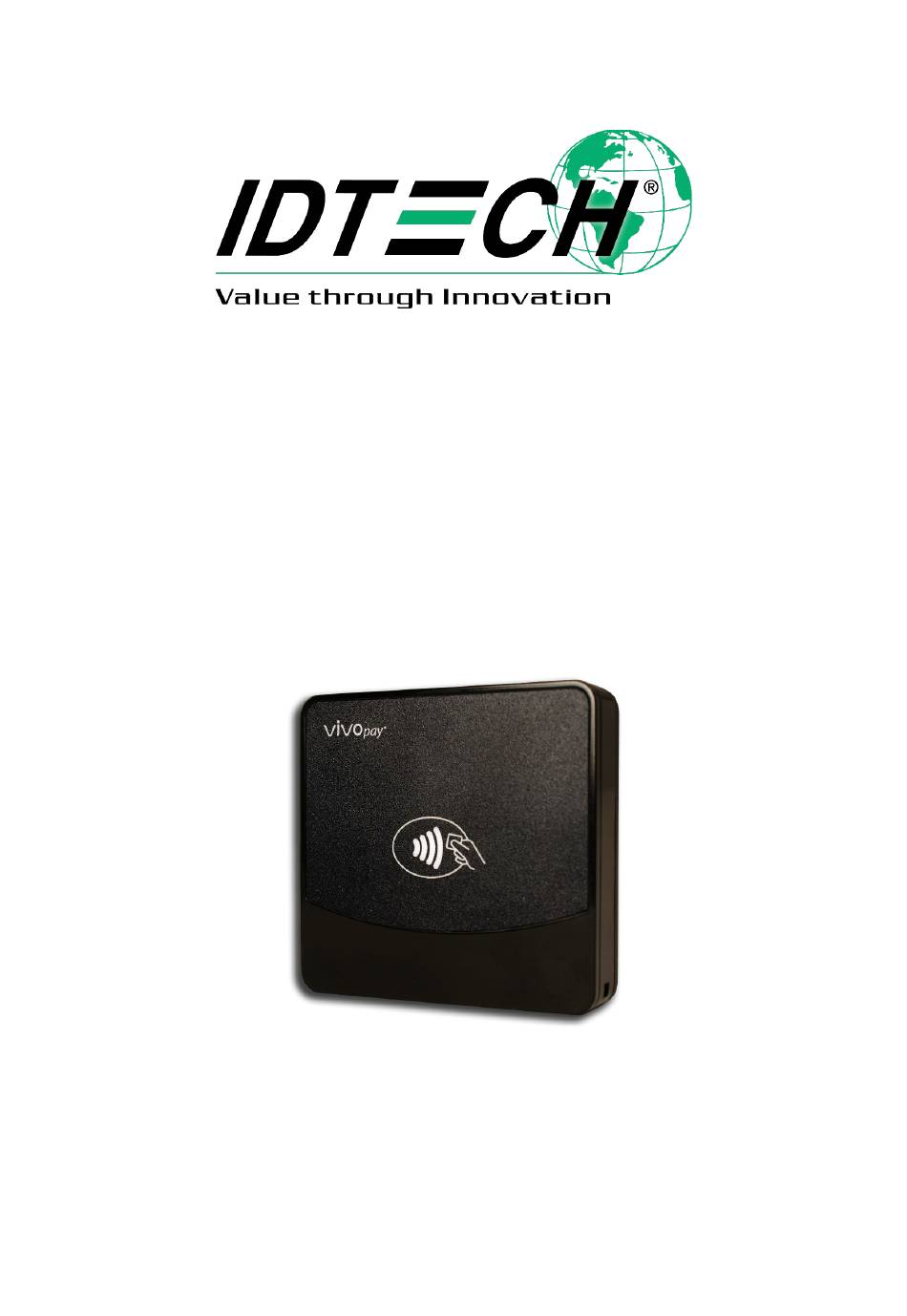

- Page 1 ViVOpay VP3320 User Manual Rev. D 21 September 2020 ID TECH 10721 Walker Street, Cypress, CA 90630-4720 Tel: (714) 761-6368 Fax (714) 761-8880 www.idtechproducts.com...
- Page 2 ID TECH ViVOpay VP3320 User Manual Copyright © 2019 ID TECH. All rights reserved. This document, as well as the software and hardware described in it, is furnished under license and may be used or copied online in accordance with the terms of such license. The content of this document is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by ID TECH.
- Page 3 ID TECH ViVOpay VP3320 User Manual FCC warning statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 ID TECH ViVOpay VP3320 User Manual Internal Rechargeable Battery Warning Danger: Do not attempt to replace the internal rechargeable lithium ion battery. Replacing the original battery with an incompatible type may result in an increased risk of personal injury or property damage due to explosion, excessive heat, or other risks.
-
Page 5: Table Of Contents
ID TECH ViVOpay VP3320 User Manual Table of Contents 1. INTRODUCTION ..................................6 2. MAJOR FEATURES OF VP3320 ............................. 6 2.1. Contactless NFC Features............................7 3. OTHER AGENCY APPROVALS AND COMPLIANCES ......................7 4. BEFORE YOU START USING VP3320 ..........................8 4.1. -
Page 6: Introduction
ID TECH ViVOpay VP3320 User Manual 1. Introduction The ViVOpay VP3320 is ID TECH's first SCRP (Secure Card Reader-PIN) developed to be used in SPoC standard (Software PIN on Consumer-off-the-Shelf Devices). The VP3320 supports EMV contact and contactless, Bluetooth, and micro-USB connections. -
Page 7: Contactless Nfc Features
ID TECH ViVOpay VP3320 User Manual 2.1. Contactless NFC Features • ISO 14443 Type A&B • ISO 18092 (P2P) • MasterCard® MChip 3.1 (Formerly PayPass) • Visa payWave/VCPS 2.2 • Visa IRWIN • Discover® DPAS • American Express® ExpressPay •... -
Page 8: Before You Start Using Vp3320
ID TECH ViVOpay VP3320 User Manual 4. Before You Start Using VP3320 The VP3320 is a mobile device for reading ICC ("chip") cards. The VP3320 is designed to operate in conjunction with certified third-party payment software and compatible host devices such as Bluetooth- or USB- equipped tablets and smartphones. -
Page 9: Vp3320 Led And Sound State Indicators
ID TECH ViVOpay VP3320 User Manual 4.3. VP3320 LED and Sound State Indicators The VP3320 uses the following LEDs and sounds to indicate various statuses, including power management, Bluetooth, transactions, and security. Device State LED1 LED2 LED3 LED4 Sound ●... -
Page 10: 24-Hour Device Reboot
ID TECH ViVOpay VP3320 User Manual a device is selected by its "friendly" name (see the next paragraph), the Apple iOS calculates a unique identifier to allow any that device to make further connections directly. The VP3320 has a default friendly name of IDT + the last four digits of the device’s serial number (for example, IDT1701). -
Page 11: Operation And Storage: Environmental Limits
ID TECH ViVOpay VP3320 User Manual 5. Operation and Storage: Environmental Limits Item Specification Note Operating Temperature 0 °C to 55 °C Non-condensing. Product operation temperature is limited to this 32°F to 131°F range due to constraints of the Li-Battery specification. -
Page 12: Demo App
ID TECH ViVOpay VP3320 User Manual 8. Demo App The Universal SDK comes with a rich, fully featured demo app that allows users to run the VP3320 in USB mode. Visit the VP3320 product page to download the Universal SDK Demo app as a standalone executable, separate from the SDK;... -
Page 13: Updating Vp3320 Firmware
ID TECH ViVOpay VP3320 User Manual 8.2. Updating VP3320 Firmware The steps below describe the process for updating VP3320 firmware via the Universal SDK Demo. Note: Before you begin, contact your ID TECH representative to receive the most recent VP3320 firmware. Download the ZIP file and extract it to your computer. - Page 14 ID TECH ViVOpay VP3320 User Manual 4. Under Device, select Update Device K81 Firmware, then click Execute Command. 5. Navigate to and select the VP3320 firmware file you downloaded earlier and click Open. 6. The VP3320 reboots and enters the bootloader, at which point the USDK Demo app begins updating the device.
-
Page 15: For More Information
ID TECH ViVOpay VP3320 User Manual 9. For More Information To learn more about VP3320 and other ID TECH products, visit the ID TECH Knowledge • Base. To learn more about EMV app development with the Universal SDK, see •...
