SPEEDEO CONNECT
Wi-Fi

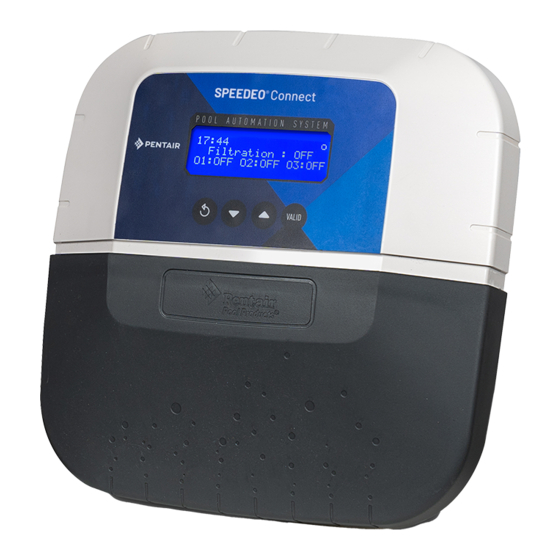

SPEEDEO® Connect
P O O L
A U T O M A T I O N
S Y S T E M
01:03 Water:+24.3°C
Filtration:
V2
S1:OFF S2:ON
S3:OFF
AIR:+25.9°C
VALID

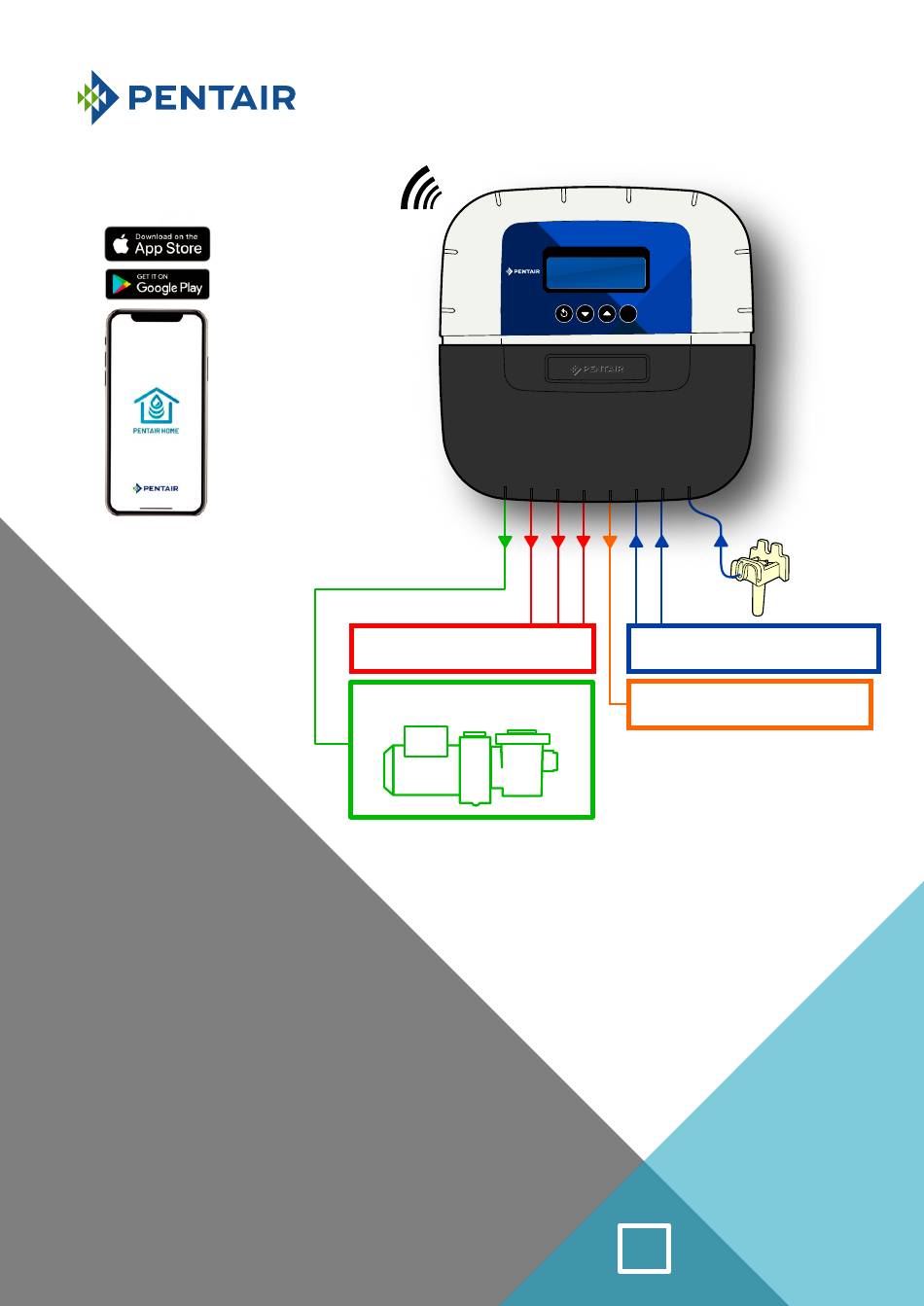

3 assignable outlets
2 assignable inputs
1 Intelli RS-485
4 controllable speeds
VS
* Speedeo Connect optimises the speed variation of the IntelliFlo pump
and is compatible with variable speed pumps with an external
connection which permits them to be externally controlled.
The list of compatible pumps is constantly changing in
accordance with releases of new models.
SB-PF-SPO-004A
INSTALLATION AND USER MANUAL
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
EN
PENTAIR AQUATIC SYSTEMS SB-CU-IMP-069
(Rev. 11/2022)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEEDEO CONNECT and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair SPEEDEO CONNECT

  • Page 1 2 assignable inputs 1 Intelli RS-485 4 controllable speeds * Speedeo Connect optimises the speed variation of the IntelliFlo pump and is compatible with variable speed pumps with an external connection which permits them to be externally controlled. The list of compatible pumps is constantly changing in accordance with releases of new models.
  • Page 2 Speedeo Connect will start up the correct speed of the connected variable speed pump according to the hydraulic requirements linked to the event. Please carefully read this user manual to fully benefit from all of the functions of Speedeo Connect. Store it carefully so that it can be consulted at any time.
  • Page 3: Table Of Contents

    Summary PRESENTATION > Possibilities for a pump with variable speeds p 04 > Packaging contents / Functions of the device p 06 > Description p 06 INSTALLATION - SPECIFIC POINTS > Fixing connections / hygiene p 07 > Examples of installation types p 09 >...
  • Page 4 IMPORTANT SAFETY GUIDELINES, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS GENERAL POINTS - DANGER - INSTALLERS, POOL SPECIALISTS AND OWNERS MUST CAREFULLY READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. - WARNING - Most countries regulate the construction, installation and operation of public swimming pools and spas, and the construction of residential pools and spas.
  • Page 5 - DANGER - DO NOT LET CHILDREN OPERATE THIS EQUIPMENT. - WARNING – Strictly respect the safety and handling procedures from the acid manufacturers, including protective measures for hands, body and eyes during transferring and using acid. Follow the prescribed safety precautions for handling muriatic acid intended for checking the water pH. Muriatic acid may cause serious physical harm and may damage the swimming pool equipment.
  • Page 6 There are usually 4 speeds: V1, V2, V3, V4. Speedeo Connect makes it possible to launch up to 3 pieces of equipment, whose operation is linked to a speed. The rotation speeds at different speeds are directly pre- set on the control unit (drive) of the pump.
  • Page 7 - Possibility to select the start time and end time of the filtration in automatic mode (to prevent noise at night). If Speedeo Connect is connected to a SOLEO, this function is found on SOLEO. - Possibility to increase or reduce the filtration time according to the use of the swimming pool (economical mode = pool with a low number of visitors, turbo mode = pool with a high number of visitors) or by default + or - 30% (value can be adjusted).
  • Page 8: Description P

    Description Speedeo Connect automatically controls the pump rotation speed with variable speed, enabling the function of programmed or activated events. FRONT VIEW Backlit screen SPEEDEO® Connect (4 x 20 characters) Status light P O O L A U T O M A T I O N...
  • Page 9 Wall fixing - This device is intended to be used inside, installed in a technical room which cannot be accessed by children. - Set the device at a height lower than 2 m using three screws (4 to 5 mm diameter) in appropriate plugs for the type of support and fix the device vertically on a clean support which is able to bear a minimum vertical load of 5 kg.
  • Page 10 Electrical connections regulation - The device must be installed by a qualified technician according to valid local regulation - This device is permanently connected. - The 2 poles of the power supply of the device is cut by its interrupter, which must be close and must remain accessible at all times.
  • Page 11: Examples Of Installation Types P

    S3:OFF AIR:+25.9°C VALID Controlling a solenoid valve with Speedeo Connect makes it possible to benefit from full power for activities using V3. Opening the solenoid valve will stop the flows in the main circuit and cut the flow-switch of the devices with this safety device (electrolyser, heating).
  • Page 12: Water And Air Temperature Probes P

    Water and air temperature probes. Speedeo Connect is supplied with a temperature probe which is suitable for water. It is possible to mount a second temperature probe for the air temperature used to manage the frost protection process of heated technical rooms.
  • Page 13 3 - On the Filtration Speed / Type sub-menu, select 4 speeds and hold down Valid. 4 - Connect wires to dedicated terminal block. PENTAIR VS2 (Superflo, SuperMax, Ultraflow, S5P2R, Challenger & Whisperflo): Connections and functions Control the speeds S1 < S2 < S3 < S4 and S4 at 100% on the pump drive.
  • Page 14 PENTAIR VS1 (Superflo, Ultraflow, SuperMax and S5P2R): Connections and functions Control the speeds S1 < S2 < S3 < S4 and S4 at 100% on the pump drive. Set the DIP switches 1, 2, 3, 4 on the pump drive to ON.
  • Page 15 SPECK 90 Eco Motion: Connections and functions On the pump, control the speeds N1 < N2 < N3 < N4 and N4 at 100% / ‘EXTERNAL = FIX SPEED’ and ‘SIGNAL = CONTINUED’. - The pump functions for 5 minutes at maximum speed after starting. Commun = 50 Commun = 50 Vitesse 1 = 51...
  • Page 16: Main Menu / Radio Menu P

    The default radio channel is Channel 01 (same for SPEEDEO). The devices have a range of 30 m. A SOLEO and a Speedeo Connect set on the same radio channel and at a distance maximum 30 m will automatically be paired. If several different Combi installations are close to each other, it is possible to shift the radio channel of one of the installations to one of the other 9 channels (2 to 10) to prevent interference.
  • Page 17: Install / Heating Pump / Information Menu P

    Access to restricted access mode ‘Install’ Speedeo Connect controls the equipment in the technical room, and the wrong settings may have serious consequences for the safety of the pool. Because of this, access to certain initial configuration functions is reserved for professionals, or people whose experience enables them to modify these parameters while being fully aware of the consequences.
  • Page 18 Speedeo Connect proposes 4 different algorithms to suit different preferences concerning the ratio of the number of hours for filtration according to the water temperature. - Once the Speedeo Connect is linked to a SOLEO, this menu Filtration time disappears. The SOLEO will manage the Filtration time.
  • Page 19 Menu: Filtration time / Auto/On/Off/Timer/Shock Mode - Once the Speedeo Connect is linked to a SOLEO, this menu Filtration time disappears. The SOLEO will manage the Filtration time. Home menu > Filtration time menu: Select current mode: AUTO = Automatically calculates the Filtration time according to the water -Filtration : ON temperature.
  • Page 20: Inlet: Connection For The End Of A Cover Line / Switch Or Remote Control P

    Inlet: connection for the end of a cover line 230 V ~ The contact is closed when the cover is covering the pool 1 - Connect the cables in accordance with the diagram. 2 - Start the secured Install menu (from the main menu, simultaneously hold down Esc and Valid for 3 secs. A star appears in the top right corner of the home screen).
  • Page 21 This contact is closed (active outlet) while the filtration is running, whatever the rotation speed. The connected control is guaranteed to function while the filtration pump is running. PENTAIR IntelliChlor: Connections and functions Connect the pump to the 230 V, connect to the 10-m long IntelliFlo cable (ref 350122), the green/ yellow to the ‘RS-485’, adhering to the colours.
  • Page 22 Outlet: heating connection Connection Connection Connection via a dedicated contact via a contactor via the safety shutdown (contact automation) (flow switch) ON / OFF An outlet is a dry contact and does not supply any voltage. 1 - Connect the cables in accordance with the chosen diagram. 2 - Start the secured Install menu (from the main menu, simultaneously hold down Esc and Valid for 3 secs.
  • Page 23 :-2°C Delta heating: Decreases T° set point for non-solar heating, so that solar heating can be the primary type used. Preferred T° Set point T° for Delta heating Speedeo Connect for solar power heating Current T° Current T° Temp. difference...
  • Page 24 Outlet: connection for lighting below 1,600 W An outlet is a dry contact and does not supply any voltage. 230 V ~ PHASE (L) < 1600W NEUTRE (N) 1 - Connect the cables in accordance with the diagram. 2 - Start the secured Install menu (from the main menu, simultaneously hold down Esc and Valid for 3 secs. A star appears in the top right corner of the home screen).
  • Page 25 6 - On the Filter backwash > Washing: 70 secs sub-menu, modify the filtration washing time. Automatic Filter backwash with pneumatic valve Speedeo Connect enables the filter to be cleaned automatically if a pneumatic valve is connected. However, an operator can force Filter backwash. Rinsing is not controlled by a pneumatic valve.
  • Page 26 Put the 6-way valve in the ‘Rinsing’ position and then hold down VALID. !Put into position ! backwash +‘Valid.’! !!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!! Washing in Speedeo Connect starts the filtration pump for the length of time entered into the Washing: progress 7secs! XX secs. !!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!
  • Page 27: Wi-Fi Installation P

    # 1: Establish the electrical connections according to your configuration and start your Speedeo Connect. # 2: Open the Pentair Home application under your account. In the setup menu of a new device, choose Speedeo Connect, on the next screen asking if you are using a gateway to connect your Speedeo Connect to Wi-Fi, select “No, I will connect Speedeo directly to Wi-Fi”.
  • Page 28 = Accessible via the Install menu (p15) Navigation menus (1/2) IF= IntelliFlo - Filtration Time (Even if connected to Soleo, Speedeo Connect is the master) Filtration: AUTO, SHOCK, TIMER, OFF, ON Start: 07h00 End: Auto Algorithm: t=T VS, BlueVS, T/2Cla, BluCla Frost-free: +3°C...
  • Page 29 S2: LIGHTING, NC, WEEKLY SHOCK, OTHER, Filter backwash, CONTROL, HEATING, SOLAR S3: LIGHTING, NC, WEEKLY SHOCK, OTHER, Filter backwash, CONTROL, HEATING, SOLAR - Setting the time Time: 11 hrs Minute: 55 min. - Information Speedeo Connect Sever connected Firmware V1.17 (001) http://www.pentairpooleurope.eu - Languages LANGUAGE: FRANCAIS, ENGLISH, NL...
  • Page 30 How to update the internal firmware 1.1 - Unzip the MAJ_SpeedeoC.zip file to obtain the SpeedeoC.bin file. reconnu 1.2 - Copy the SpeedeoC.bin file to the main folder of the USB stick formatted in FAT 16 or FAT 32. 2.1 - Remove the soft cover, then remove the orange cover SPEEDEO®...
  • Page 31 Variations in the RedOx (ORP) according to the pH and the chlorine rate in water without a stabiliser at a temperature of 18°C.
  • Page 32 Copyright - Begrenzte Lizenz: Sofern dieses Dokument keine ausdrückliche Genehmigung enthält, dürfen keine Bestandteile der Inhalte des vorliegenden Dokuments in jeglicher Form oder mit Hilfe jeglicher Mittel ohne die vorherige schriftliche Zustimmung von Pentair International SRL vervielfältigt werden. Ave. de Sévelin 20, CH-1004 - LAUSANNE, Suiza Copyright –...
