- Page 1 AWZ 523 v.2.1 AWZ 24VAC/0,4A/M PSU module for CCTV. Edition: 5 from 16.09.2013 Supersedes the edition: 4 from 07.03.2012...
- Page 2 AWZ523 Features: output voltage 24VAC/0,4A protections: power supply 230VAC SCP short-circuit protection thermostat-operated heater OLP overload protection mounting in a CCTV camera enclosure surge protection LED indication warranty – 5 year from the production date CONTENTS: 1.

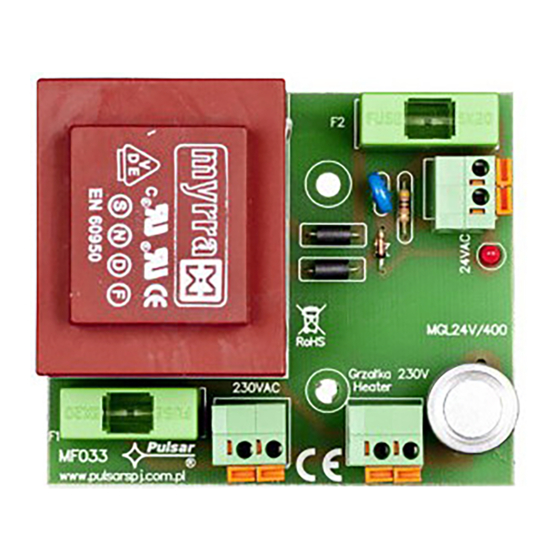

- Page 3 AWZ523 1.3 Description of components and connectors Table 1. The components of the PSU module (see fig. 2). Element no. Description F1 fuse in the primal circuit of the transformer and the enclosure’s heater 230V /AC L-N 230V/AC power output HEATER 230V/AC N-H power output of the transformer’s heater, the supply voltage...
- Page 4 AWZ523 HEATER: T 500mA fuse, damage requires fuse-element replacement 24V/AC: T 500mA fuse, damage requires fuse-element replacement Overload protection OLP HEATER: T 500mA fuse, damage requires fuse-element replacement Heater’s circuit specifications: -mains supply 230V/AC (-15%/+10%) -output current 0,4A max.
- Page 5 AWZ523 Typical application AWZ523 (fig.3). Fig.3. PSU module connection: 12VDC camcorder and 230VAC heater in an external enclosure. 2.2 Installation in a CCTV camera enclosure 1. Before installation, make sure that the voltage in the 230V power-supply circuit is cut off.
- Page 6 WEEE separately. GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
