Getting Started (Cont.)
Assembly

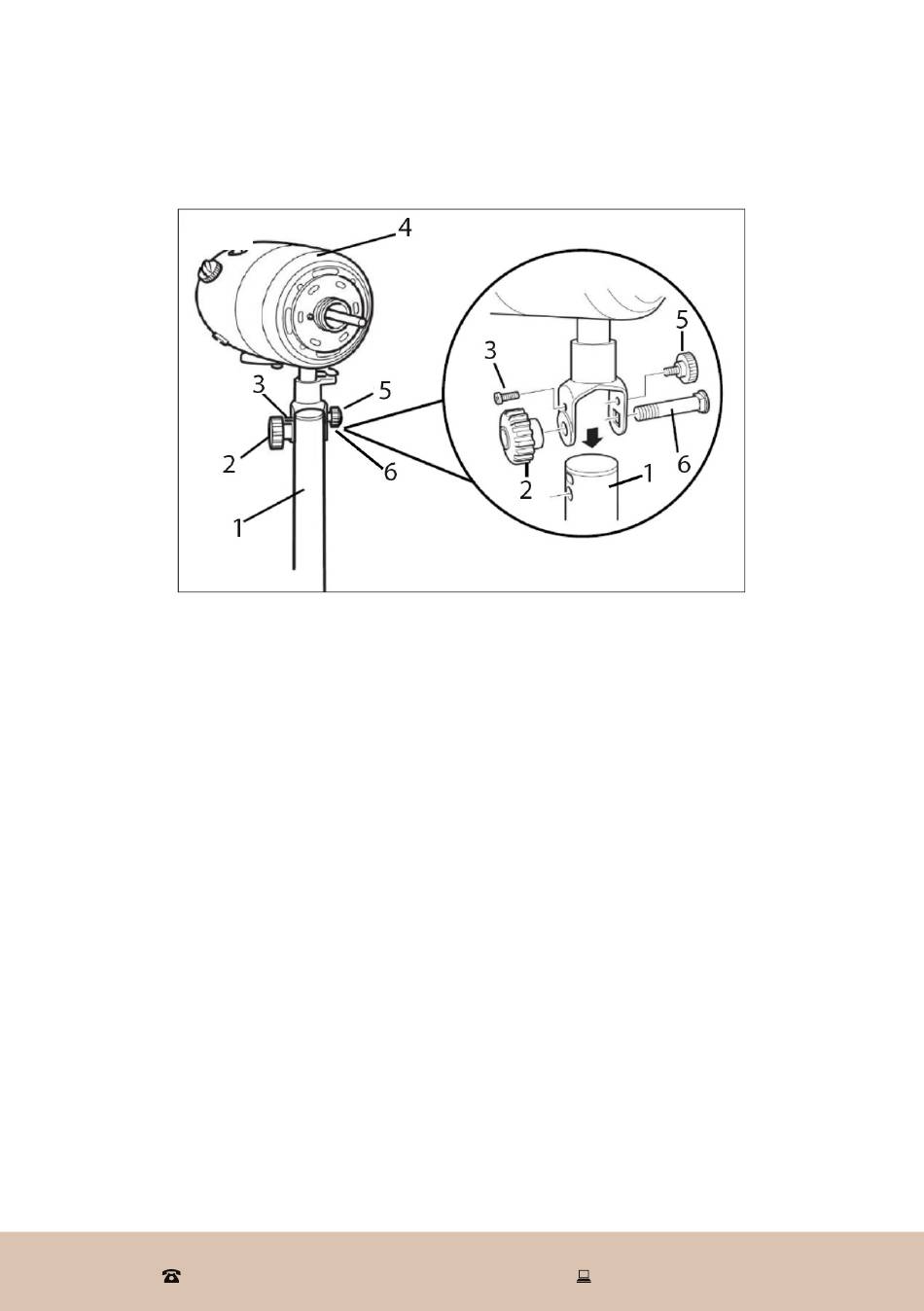

Fig. 3
1 Telescopic stand
2 Pivot knob
3 Neck retaining screw
4 Motor housing
5 Small adjustment knob
6 Large pivot bolt
• First remove the pivot knob (2) and the large pivot bolt (6) from the top of
the telescopic stand, then remove the neck retaining screw (3) and small
adjustment knob (5) from the motor housing bracket.
• Place the fan head and motor assembly on the top of the stand and
thread the large pivot bolt (6) through the bracket. Screw in the neck
retaining screw (3) and tighten, but do not overtighten.
• Fit the large pivot knob (2) onto the end of the bolt (6) and the small
adjustment knob (5) at the other side above the bolt. Tighten the knobs
while holding the fan motor upright.
(AU) 1300 886 649 (NZ) 0800 836 761 |
NOTE: The illustration above
shows the motor housing
without the fan head. On the
fan model you purchased, the
fan head is already assembled
to the motor housing.
