Summary of Contents for Click FT-30MD

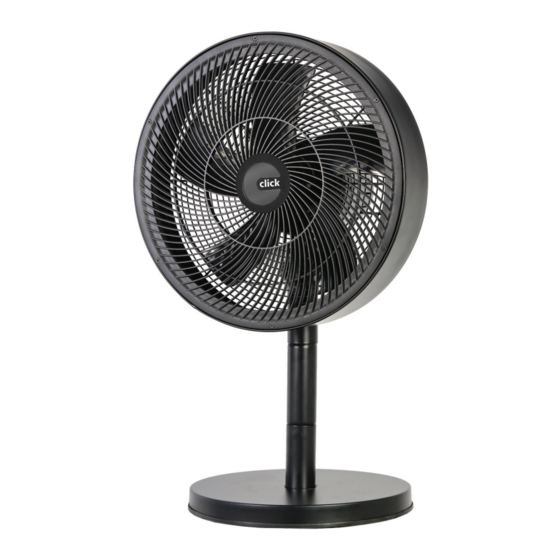

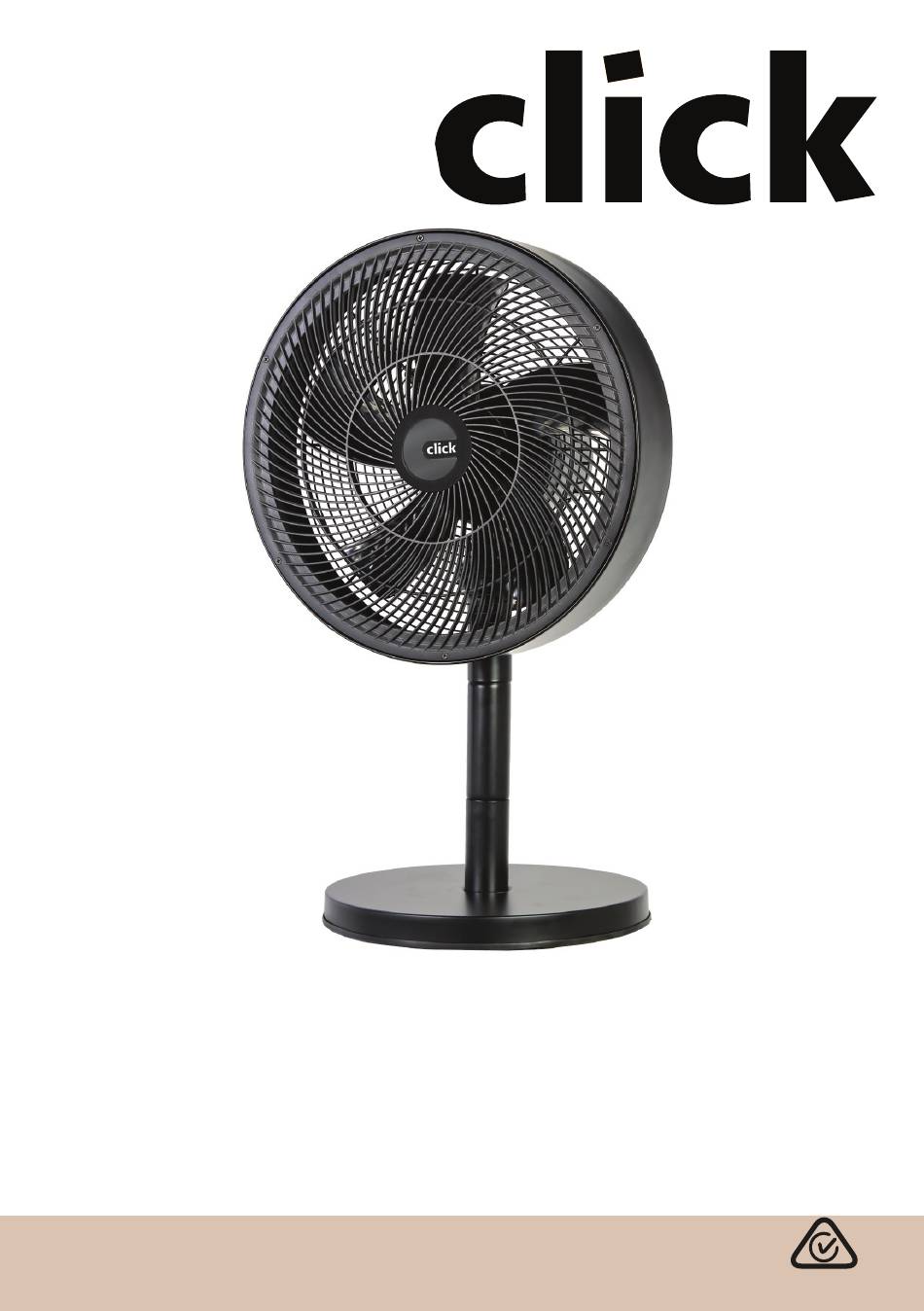

- Page 1 30cm Drum Table Fan USER MANUAL Model Number: FT-30MD AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 E209...
-
Page 2: Table Of Contents
Contents Page Important Safety Instructions Product Overview Getting Started Instructions Other Useful Information AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 4 Important Safety Instructions (Cont.) • WARNING! Electric shock hazard! Do not plug in the fan until fully assembled. • RCD: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30mA to provide additional safety protection when using electrical appliances.
-
Page 5: Product Overview
Product Overview Parts list Fan head assembly Fan blade Motor with oscillation knob and speed control (at the back, not visible here) Safety guards (front and rear grilles) Pivot knob (see page 8 for details) Post Base NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. -
Page 6: Getting Started
Getting Started Before first use • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 7 Getting Started (Cont.) Assembly Fig. 2: Attaching the post to the base • The bolt is attached to the post, or supplied separately. Unscrew the bolt, if applicable, and remove it from the bottom of the post. • Turn over the stand base and thread the bolt from the underside of the base into the thread in the post.
- Page 8 Getting Started (Cont.) Fig. 3: Attaching the fan head and motor assembly to the post Fig. 3 Post NOTE: The illustration above Pivot knob shows the motor housing Neck retaining screw without the fan head. On the Motor housing fan model you purchased, the Small adjustment knob fan head is already assembled Large pivot bolt...
-
Page 9: Instructions
Instructions The fan is equipped with 3 speeds and an oscillation option. To use the fan, follow the simple instructions below. Place the fan on a dry, level surface where it will not overturn during use. Make sure the speed control at the back of the motor housing is in the OFF [ 0 ] position, then insert the power plug into an appropriate electrical outlet. -
Page 10: Other Useful Information
Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, and before removing a front or rear guard, switch off the fan and unplug it from the wall outlet. • Do not immerse the fan in water or other liquids. Do not spray it with liquids. - Page 11 Other Useful Information (Cont.) • Stubborn stains: Use a slightly damp, soapy cloth for stubborn stains but be sure the cloth is not too wet. Use caution around the motor housing. Do not allow the motor or other electrical components to be exposed to water.
- Page 12 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
