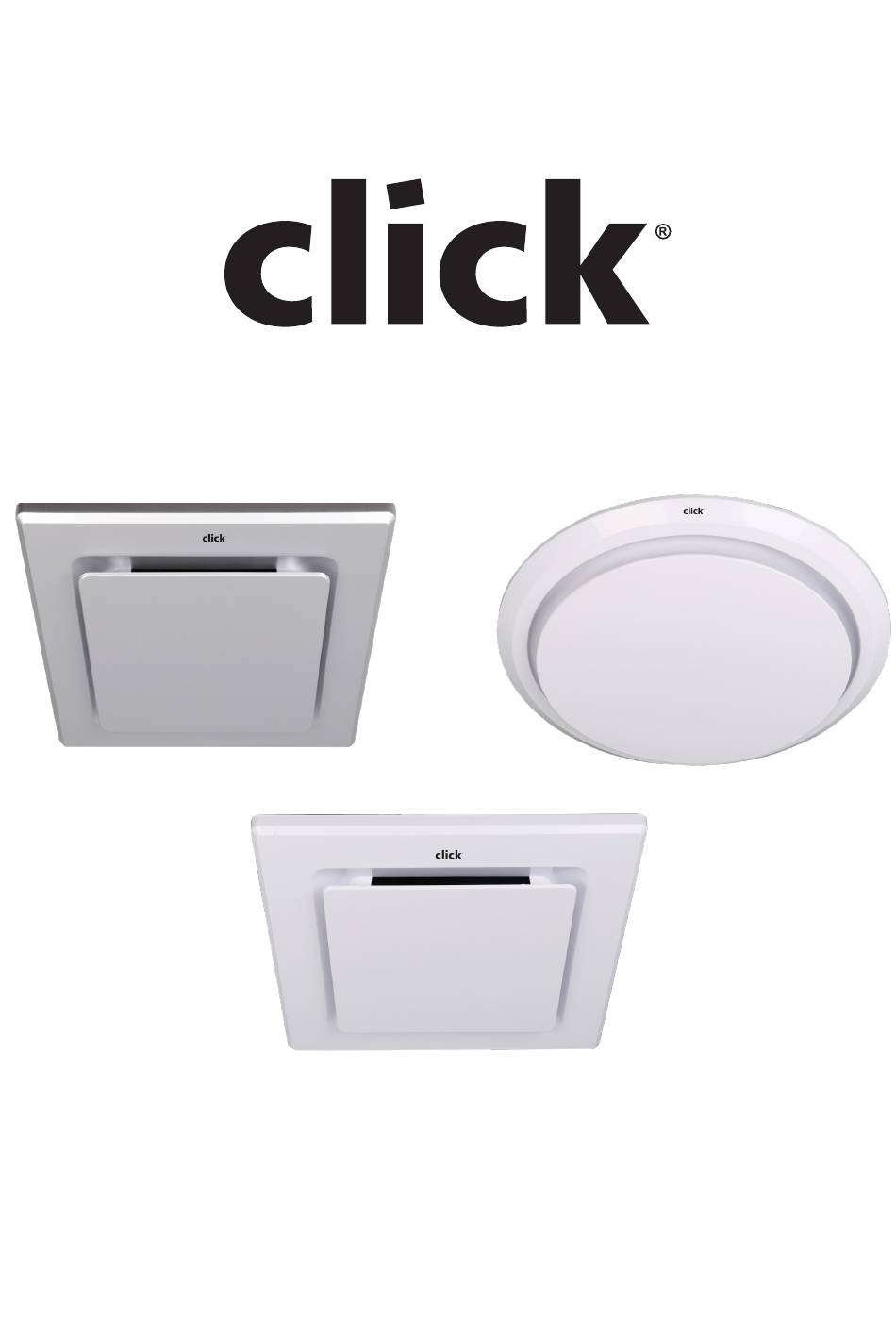

- Page 1 INSTALLATION USE AND CARE INSTRUCTIONS 250mm VENTILATING DUCTED EXHAUST FAN Model: CSEF200S, CSEF250RW, CSEF250W BEFORE OPERATING THIS PRODUCT READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS Save these instructions for future reference...
- Page 2 Thank you for selecting a Click Exhaust Fan. Please read all instructions thoroughly before com- mencing installation. Important: This Exhaust Fan must be installed to comply with the appropriate local council building regulations, and the Australian and New Zealand wiring rules AS/NZS 3000 latest edition thereof.
- Page 3 iMPORTANT CONSIDERATIONS BEFORE INSTALLING A few minutes planning can make a significant difference to the installation time and also to your satisfaction with the functionality of your unit. 1. The unit should be mounted outside the shower cubicle. 2. For the exhaust fan to work efficiently, replacement air of a volume equivalent to what is being extracted must be able to enter the room.
- Page 4 5. Cut the mounting hole as describe in 1. Plug into the existing main socket outlet or a mains socket prepared by your licenced electrician. 6. Carefully push the exhaust fan body into the cut out hole, and push the 4 clips out to secure the fan to the ceiling.
- Page 5 NOTE: Pictures are for illustration only. Product may vary due to continuous development. Dimensions and installation dimensions Model / Dimension CSEF200W, CSEF200S, CSEF250W, CSEF250S, CSEF200RW, CSEF200RS CSEF250RW, CSEF250RS 265mm 320mm 195mm 195mm 270mm 325mm 270mm 325mm Cut-out diameter 240mm 290mm...
- Page 6 Specifications Model Rate Voltage Rated Power Air flow (m³/h) CSEF200S (200mm) 220-240V AC CSEF250W, CSE- 220-250V AC F250RW Care Instructions Dust will build up in the unit, this may be cleaned by: Ensuring the unit is turned off at the switch first and is isolated from the power supply.
- Page 7 Customer Service Click is a trademark of Bunnings Group. Australian Customer Service GAF Control (Sales) Pty Ltd P.O Box 19 Altona North, Victoria 3025 Phone: 1300 659 489 Hours 9AM- 5PM (EST) Monday - Friday www.gafcontrol.com.au...
