Summary of Contents for Click FT-40MD

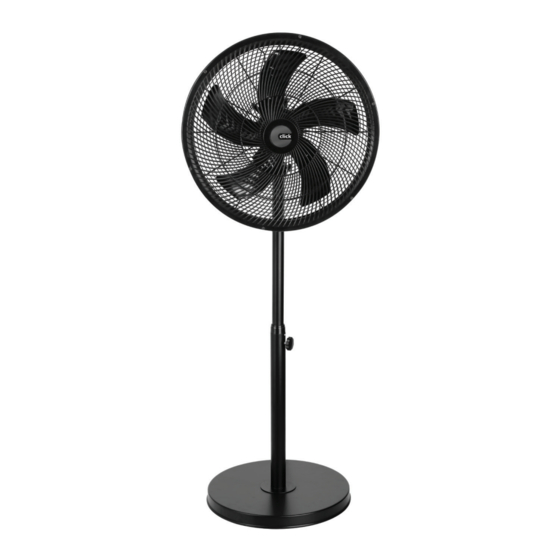

- Page 1 40cm Drum Pedestal Fan USER MANUAL Model Number: FT-40MD AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 E209...
-
Page 2: Table Of Contents
Important Safety Instructions Product Overview Getting Started Instructions Other Useful Information AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you under- stand all instructions and warnings. - Page 4 Important Safety Instructions (Cont.) • Disconnection: Unplug the appliance from the power outlet when it is not in use and before cleaning, servicing, moving or storing the appli- ance. Grasp the plug and remove it from the outlet, do not pull the cord when disconnecting.
- Page 5 Important Safety Instructions (Cont.) • WARNING! DO NOT use the fan in the following areas: - Near an open flame, a hot burner, oven or other source of high heat. - On a soft surface (such as carpet) or where it may tip over during use. - Outdoors or in areas of high humidity without suitable ventilation (e.g., in a bathroom, laundry area), near a sink, washer, pool or any source of water.
-
Page 6: Product Overview
Parts List Parts list Safety guards (front and rear grilles) Fan blade Motor with speed control and oscillation knob (at the back, not visible here) Pivot knob (see page 8 for details) Oscillation knob Extension pole Height adjustment knob Stand base NOTE: Due to continued product improvement, images and illustrations... -
Page 7: Getting Started
Getting Started Before first use • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 8 Getting Started (Cont.) Assembly Fig. 2: Attaching the telescopic stand to the stand base • The washer and L-shaped screw are attached to the lower column, or supplied separately. Unscrew the bolt, if applicable, and remove both from the bottom of the lower column. •...
- Page 9 Getting Started (Cont.) Assembly Fig. 3 Telescopic stand NOTE: The illustration above Pivot knob shows the motor housing Neck retaining screw without the fan head. On the Motor housing fan model you purchased, the Small adjustment knob fan head is already assembled Large pivot bolt to the motor housing.
-
Page 10: Instructions
Instructions The fan is equipped with 3 speeds and an oscillation option. To use the fan, follow the simple instructions below. Place the fan on a dry, level surface where it will not overturn during use. Make sure the speed control at the back of the motor housing is in the OFF [ 0 ] position, then insert the power plug into an appropriate electrical outlet. - Page 11 Instructions (Cont.) Tilt adjustment The fan head assembly can be tilted to direct the breeze upwards or downwards to your desired angle. • CAUTION: Make sure the fan is unplugged from the power supply before adjusting the tilt angle. • Loosen both the larger tilt adjustment knob and the smaller tilt range knob.
-
Page 12: Other Useful Information
Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, and before removing a front or rear guard, switch off the fan and unplug it from the wall outlet. • Do not immerse the fan in water or other liquids. Do not spray it with liquids. - Page 13 Other Useful Information (Cont.) • Service/repair: The appliance requires no maintenance and contains no user-serviceable parts. Do not attempt to take the motor housing apart. Do not try to repair or modify the appliance. Do not operate the fan if its power cord or plug is damaged, or when it is working abnormally.
- Page 14 AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
- Page 15 AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
- Page 16 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
