Getting Started (Cont.)
Assembly

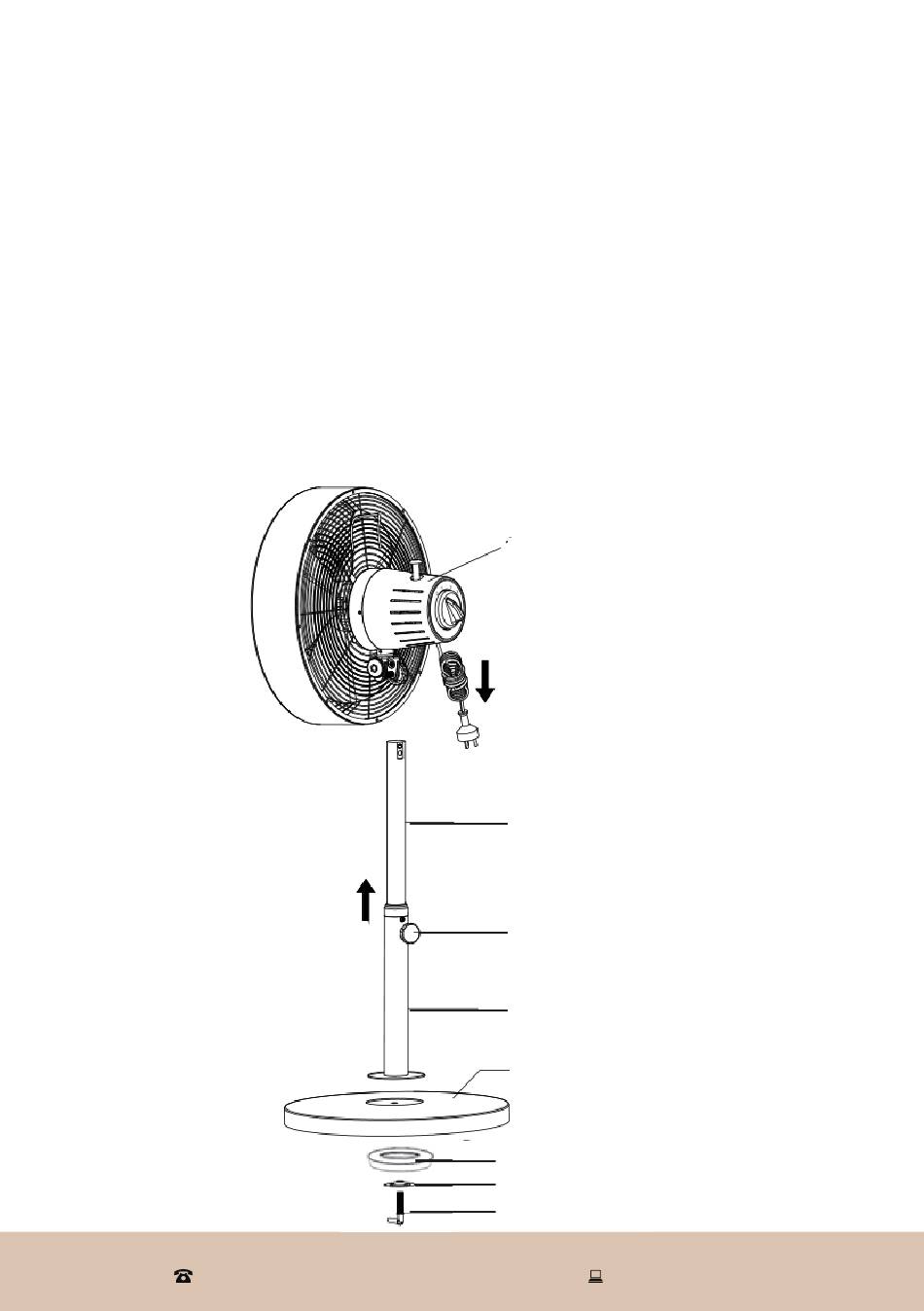

Fig. 2: Attaching the telescopic stand to the stand base
• The washer and L-shaped screw are attached to the lower column, or
supplied separately. Unscrew the bolt, if applicable, and remove both
from the bottom of the lower column.
• Turn over the stand base. Place the weighted base centre in its place on
the underside of the base and the washer in the centre of the weighted
base. Then thread the L-shaped screw through the assembly and into the
thread in the lower column. Tighten firmly, but do not overtighten.
• Loosen the height adjustment knob and pull out the extension pole to
the desired height, then retighten the knob.
8
Fig. 2
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 |
Fan head assem-
bly
Extension pole
Height adjustment
knob
Lower column
Stand base
Weight
Washer
L-shaped screw
