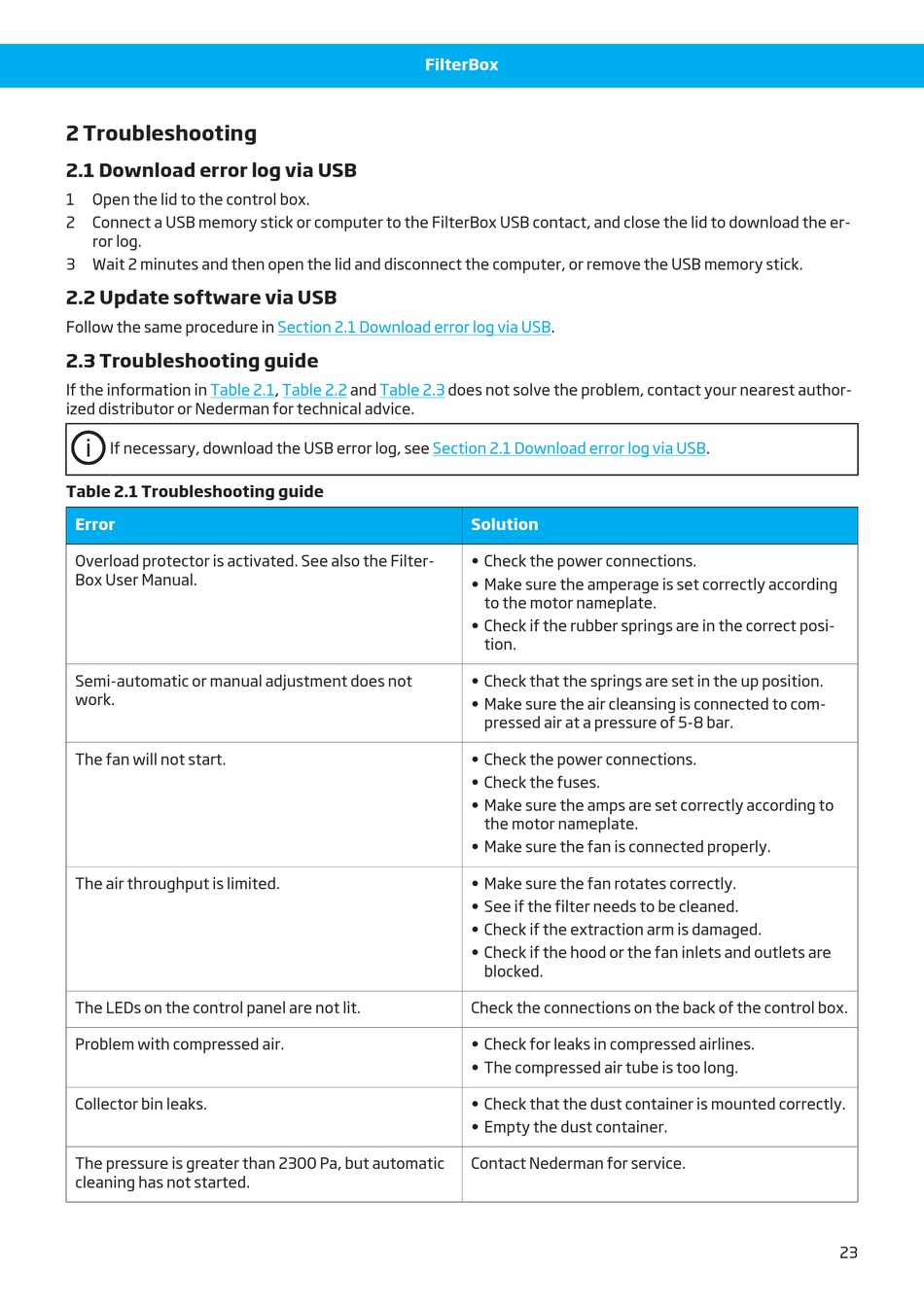

2 Troubleshooting
2.1 Download error log via USB
1 Open the lid to the control box.
2 Connect a USB memory stick or computer to the FilterBox USB contact, and close the lid to download the er-
ror log.
3 Wait 2 minutes and then open the lid and disconnect the computer, or remove the USB memory stick.
2.2 Update software via USB
Follow the same procedure in
2.3 Troubleshooting guide
If the information in Table 2.1,
ized distributor or Nederman for technical advice.
If necessary, download the USB error log, see
Table 2.1 Troubleshooting guide
Error
Overload protector is activated. See also the Filter-
Box User Manual.
Semi-automatic or manual adjustment does not
work.
The fan will not start.
The air throughput is limited.
The LEDs on the control panel are not lit.
Problem with compressed air.
Collector bin leaks.
The pressure is greater than 2300 Pa, but automatic
cleaning has not started.
FilterBox
Section 2.1 Download error log via
Table 2.2 and Table 2.3 does not solve the problem, contact your nearest author-
Section 2.1 Download error log via
USB.
Solution
• Check the power connections.
• Make sure the amperage is set correctly according
to the motor nameplate.
• Check if the rubber springs are in the correct posi-
tion.
• Check that the springs are set in the up position.
• Make sure the air cleansing is connected to com-
pressed air at a pressure of 5-8 bar.
• Check the power connections.
• Check the fuses.
• Make sure the amps are set correctly according to
the motor nameplate.
• Make sure the fan is connected properly.
• Make sure the fan rotates correctly.
• See if the filter needs to be cleaned.
• Check if the extraction arm is damaged.
• Check if the hood or the fan inlets and outlets are
blocked.
Check the connections on the back of the control box.
• Check for leaks in compressed airlines.
• The compressed air tube is too long.
• Check that the dust container is mounted correctly.
• Empty the dust container.
Contact Nederman for service.
USB.
23
