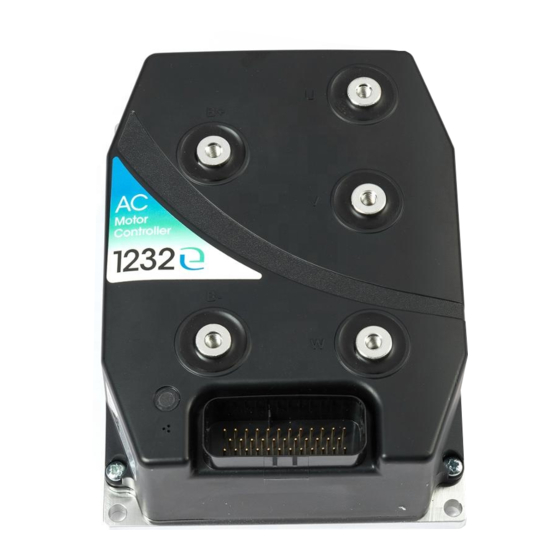

Manual
DUAL DRIVE OPERATION
for Controller Models
1232E / 34E / 36E / 38E / 39E
1232SE / 34SE / 36SE / 38SE
and
» Software Version OS 31.0 «
Read Instructions Carefully!
Specifications are subject to change without notice.
© 2016 Curtis Instruments, Inc. ® Curtis is a registered trademark of Curtis Instruments, Inc.
© The design and appearance of the products depicted herein are the copyright of Curtis Instruments, Inc.
Curtis Instruments, Inc.
200 Kisco Avenue
Mt. Kisco, NY 10549
www.curtisinstruments.com
53097 DD Supplement, os31 May 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1232E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Curtis 1232E

Summary of Contents for Curtis 1232E

  • Page 1 Specifications are subject to change without notice. © 2016 Curtis Instruments, Inc. ® Curtis is a registered trademark of Curtis Instruments, Inc. © The design and appearance of the products depicted herein are the copyright of Curtis Instruments, Inc. 53097 DD Supplement, os31 May 2017...

  • Page 2: Table Of Contents

    Figure 5: Ratio of inner-wheel speed to outer-wheel speed..............Figure 6: Inner-wheel and outer-wheel speed maps................Figure 7a: Motor command diagram, master controller..............Figure 7b: Motor command diagram, slave controller................. pg. ii Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2016...

  • Page 3: 1-Overview

    Return to TOC 1—OVERVIEW The Dual Drive feature of Curtis 1232E/SE, 1234E/SE, 1236E/SE, 1238E/SE, and 1239E controllers allows two controllers to work together in vehicles with dual fixed-axle drive motors, a steered wheel or axle, and an analog steer-angle sensor.

  • Page 4: 2: Wiring

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC 2 — WIRING One of the two controllers is designated the master and the other the slave. The master controller operates the left motor and the slave operates the right motor. The throttle and brake inputs go to the master. The steering pot input goes to the Pot2 input on the slave controller.

  • Page 5: Figure 2B: Basic Wiring Diagram For Master Controller, Dual Drive Operation

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC The master controller is wired to all the components except those related to the Right motor and the steering pot. to KSI (J1-1) on slave controller J1-1 J1-13 EMERG.

  • Page 6: Figure 2C: Basic Wiring Diagram For Slave Controller, Dual Drive Operation

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC The slave controller is wired only to the Right motor and its encoder and temperature sensor, the steering pot, CAN H, CAN L, KSI, B+/B–, and an electromagnetic brake.

  • Page 7: 3: Programmable Parameters

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC 3 — PROGRAMMABLE PARAMETERS The following programmable parameters are used to configure the Dual Drive feature. With only a very few exceptions, all the parameters on both the master and the slave controller should be set to the same values.
  • Page 8 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC DUAL DRIVE MENU PARAMETER ALLOWABLE RANGE DESCRIPTION Dual Motor Enable On / Off To turn on the Dual Drive feature, set this parameter On in both controllers.
  • Page 9 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC DUAL DRIVE MASTER MENU PARAMETER ALLOWABLE RANGE DESCRIPTION Steer Angle Max (deg) 45 – 90 deg Set this to the maximum steer angle that is physically possible on the vehicle.
  • Page 10 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC DUAL DRIVE SLAVE MENU PARAMETER ALLOWABLE RANGE DESCRIPTION Turn Accel Rate 0.1 – 30.0 s As the steering angle increases from the edge of the deadband to the critical...

  • Page 11: 4: Determining Critical Angle And Inner Wheel Speed

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC 4 — DETERMINING CRITICAL ANGLE AND INNER WHEEL SPEED The first step in setting up the Dual Drive feature is to determine the values of two parameters: Critical Angle, the angle at which the vehicle pivots with its inner wheel stationary, and Inner Wheel Speed, the desired inner-wheel speed at a 90°...

  • Page 12: Figure 3: Typical 3-Wheel Dual Drive Vehicle Geometry

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Figure 3 Typical 3-wheel Dual Drive vehicle geometry. Figure 4 Typical articulated steering Dual Drive vehicle geometry. pg. 10 4 — DETERMINING CRITICAL ANGLE AND INNER WHEEL SPEED...

  • Page 13: Figure 5: Ratio Of Inner-Wheel Speed To Outer-Wheel Speed

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC The inner wheel speed is determined by the outer wheel speed, as shown in Figure 5. It decreases from 100% of the outer wheel speed to zero at the programmed critical angle, and then from zero to the programmed Inner Wheel Speed value at the maximum steering angle.

  • Page 14: 5: Dual Drive Setup

    5 — DUAL DRIVE SETUP First you should complete the setup procedures for the two controllers you are using as outlined in the 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE os31 manuals.. Then proceed with these Dual Drive setup procedures. Before starting the Dual Drive setup procedures, jack the vehicle drive wheels up off the ground so that CAUTION they spin freely.
  • Page 15 Swap Encoder Direction or Swap Two Phases parameters. (Refer to setup procedures in the 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manuals for help resolving encoder issues.) If the motor still does not respond appropriately you should contact your Curtis customer support engineer to resolve any issues before continuing.

  • Page 16: 6: Vehicle Control Language & Can

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC 6 — VEHICLE CONTROL LANGUAGE & CAN The motor command diagrams for the Dual Drive controllers are shown in Figure 7a (for the master controller, which controls the Left traction motor) and Figure 7b (for the slave controller, which controls the Right traction motor).

  • Page 17: Figure 7A: Motor Command Diagram, Master Controller

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC 6 — VEHICLE CONTROL LANGUAGE & CAN pg. 15...

  • Page 18: Figure 7B: Motor Command Diagram, Slave Controller

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC pg. 16 6 — VEHICLE CONTROL LANGUAGE & CAN...
  • Page 19 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC The CAN messages indicated by the A, B, and C points in Figures 7a and 7b are shown in the byte maps below, along with the additional variables that are available (and CAN Index) to Dual Drive applications.

  • Page 20: 7: Troubleshooting

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC 7 — TROUBLESHOOTING With Dual Drive systems there are two traction controllers, and when faults occur they usually affect both of the controllers. The Dual Drive Troubleshooting Chart (Table 2) is written from the perspective of the controller that is issuing the fault.
  • Page 21 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC The fault actions (effect of fault) in Table 2 use the same bit-structure as the User_Fault_Action_xx listed in controller’s manual (OEM-defined User Faults). The variable System_Action (available in the WinVCL Monitor, or TACT) returns the decimal number corresponding to the active fault action bit(s).

  • Page 22: Table 2 Dual Drive Troubleshooting Chart

    Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Controller Overcurrent 1. External short of phase U,V, or W motor Set: Phase current exceeded the current ShutdownMotor;...
  • Page 23 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Severe B+ Overvoltage 1. See Monitor menu » Battery: Capacitor Set: Capacitor bank voltage exceeded the Severe ShutdownMotor;...
  • Page 24 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Digital Out 7 Open/Short 1. External load impedance on Digital...
  • Page 25 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT PD Open/Short 1. Open or short on driver load.
  • Page 26 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Pot2 Wiper High 1. See Monitor menu » Inputs: Pot2 Raw.
  • Page 27 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT VCL Run Time Error 1. VCL code encountered a runtime VCL Set: Runtime VCL code error condition.
  • Page 28 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Fault On Other Traction 1. A fault is active on the other traction...
  • Page 29 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Driver Supply 1. Internal controller fault in the voltage Set: Internal controller fault detection.
  • Page 30 Curtis 1232E/34E/36E/38E/39E & 1232SE/34SE/36SE/38SE Manual, os 31 – May 2017 Return to TOC Table 2 DUAL DRIVE TROUBLESHOOTING CHART cont'd PROGRAMMER LCD DISPLAY CODE POSSIBLE CAUSE SET / CLEAR CONDITIONS EFFECT OF FAULT Motor Type Fault 2. The Motor_Type parameter value is out Set: Motor_Type parameter is set to an illegal ShutdownMotor;...
