Horizon Fitness Elite 1.2E Manual

(E X -2 2 , E X -3 3 , E X -4 4 , C S E 3 . 5 , 4 . 5 , E G 5 , 1 . 2 E, 3 .2 E , 4. 2E)
Tools Required:
• Phillips Screwdriver
• 8mm, 13mm, 17mm Socket and Combination Wrenches
• 5mm Allen Wrench
• Crank Puller
Procedure:
1. 1.2E only-Adjust tension knob to highest setting.
2. Turn on unit and Press start.
3. Set resistance highest level and power off unit.
4. Remove side covers. (Reference side cover replacement in Parts Replacement section.)
4. Loosen the short nut (A), and adjust the long nut (B) clockwise to reduce the brake resistance and counterclockwise
to increase the brake resistance.

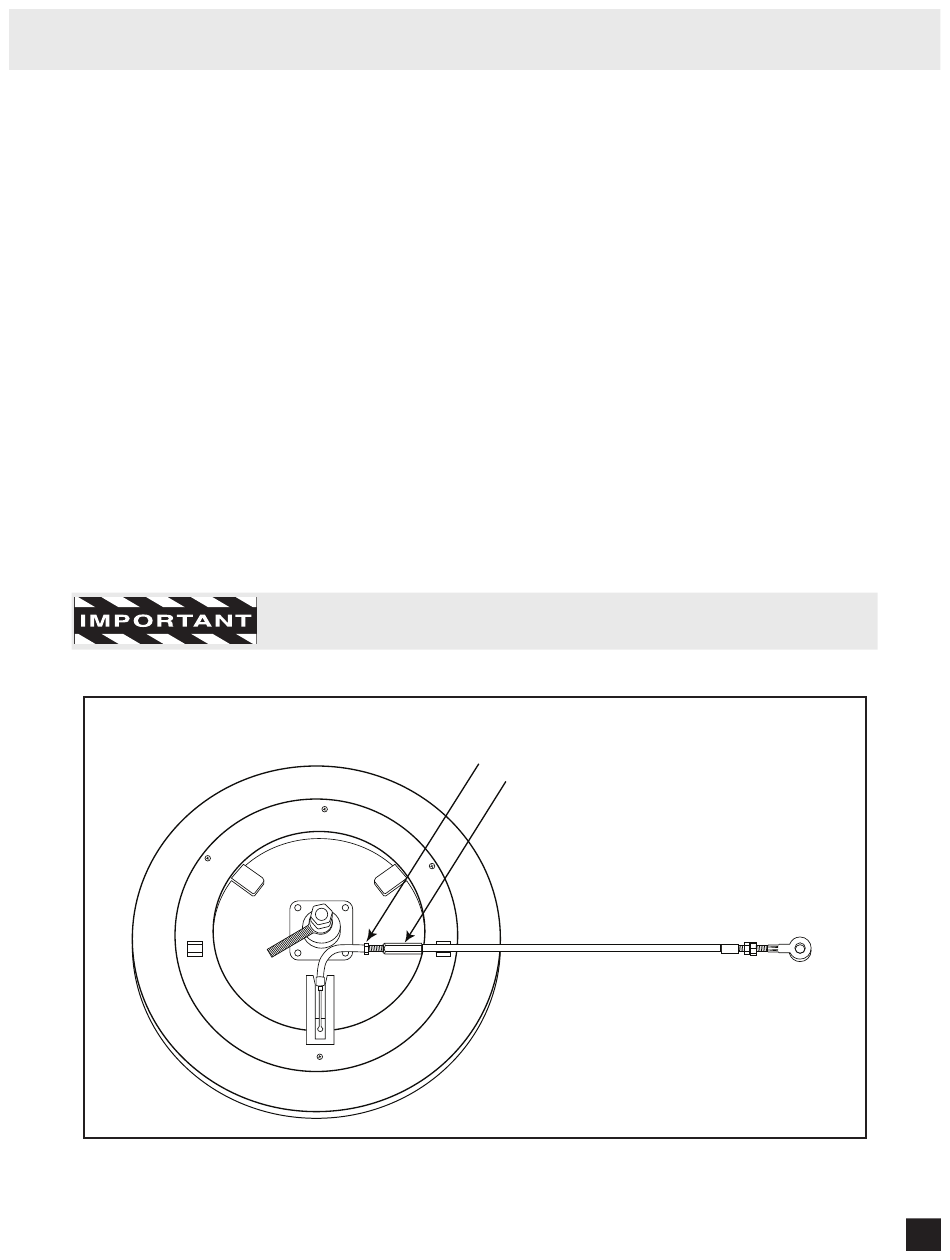

F ig ure 5
Adj usting t he Magne tic B rake
The correct position for the flywheel/brake assembly is 1 -2mm from the flywheel at
the highest resistance level.
A
B
