S&P ALTAIR 120 H Manual

False ceiling mounting
Hide thumbs Also See for ALTAIR 120 H:
Table of Contents

Advertisement

Quick Links

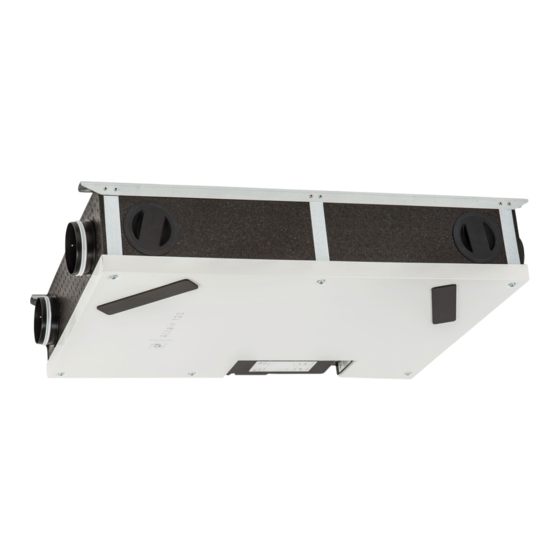

ALTAIR 120 H
False ceiling mounting
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTAIR 120 H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for S&P ALTAIR 120 H

Summary of Contents for S&P ALTAIR 120 H

  • Page 1 ALTAIR 120 H False ceiling mounting...
  • Page 2 1. Heat recovery unit ALTAIR 2. Exhaust air (EHA) 3. Outdoor air (ODA) 4. Extract air (ETA) 5. Supply air (SUP) 6. G4 fi lter (extract air) 7. G4 fi lter (outdoor air) 8. Supply air fan 9. Exhaust air fan 10.

  • Page 3: Safety Instructions

    1. GENERAL 1.1. WARNINGS This product was manufactured according to rigorous technical safety rules in compliance with DC standards. The DC declaration and the manual can be downloaded from the Internet. Before installing and using this product, carefully read these instructions, which contain important indications to ensure your safety and that of the users during the installation, commissioning and servicing of this product.

  • Page 4: Warranty

    1.3. ACCEPTANCE – STORAGE In case of missing, non-conforming, or totally or partially damage delivered products, the purchaser must make written reservation on the transporters receipt and confi rm them within seventy-two (72) hours by sending a recom- mended letter to the transporter, as well as a copy to S&P. Acceptance of the unit without any reservation will deprive the purchaser of anys.
  • Page 5 Outdoor air (ODA): Install the fresh air intake (wall or roof) at a su- ffi cient distance from any source of high pollu- tion (trees, exhaust fumes, roads, etc.) This duct must be sealed and in- sulated to prevent condensation. Supply air (SUP): To avoid thermal losses and optimize the per- formance of the installation, it is recommended...
  • Page 6 2.2. DIMENSIONS AND ELECTRIC CONNECTION 90 mm 360 mm 550 mm 94 mm 30 mm 660 mm 850 mm 30 mm 178 mm 91 mm 208 mm...

  • Page 7: Installation

    2.3. INSTALLATION Ceiling: lateral view 30 mm To avoid the vibration transmission and noise to the duct, we recommend to use fl exible connections. Supply/Extract Air: Installation of fl exible silencers type LAF 95 (article code: 5209358600 / LAF 95 0,5M or 5209358500 / LAF 95 1M) Outdoor/Exhaust Air: connection with fl...
  • Page 8 2.4. START UP Installer The remote control allows to adjust: • Airfl ows (3 speeds) • Period for fi lter maintenance • Balance of supply/extract airfl ow To adjust the speed please turn the corresponding potentiometer with a small screw driver in the wished position. The ALTAIR 120 is working with constant airfl...
  • Page 9 Adjustment of the fi lter maintenance period It is possible to set the period to 6, 9, 12, or 15 months (12 month factory setting). The fi lter clogging depends on the pollution of the area where the unit is installed. We recommend checking the time in which the fi lter clogs and adjus- ting this period.
  • Page 10 Adjustment of the relative humidity % The Altair has as a standard a humidity sensor in the extract air installed. This sensor allows to adjust the velocity in dependence of the relative humidity in the extract air. The upper limit of the relative humidity can be adjusted with the potentiometer as shown below (factory setting position A=84% rH).
  • Page 11 Electronic board description without function without function DIP SWITCH 6: 1 (Default command) - 0 (SPCM) without function Set point humidity sensor. No function in case of connection of the SPCM-1 Module USB connector (for software updates) temperature sensor humidity sensor extract fan supply fan power supply motors (230V/50Hz)
  • Page 12 Remote control adjustments – USER Speed adjustment Pressing the “speed adjustment” buttons you can change the airfl ow. The LED of the active botton will light green (left fan symbol= decrease speed, right fan symbol=increase speed). Automatic mode Pressing the button “A” there can be activated the automatic mode. In the automatic mode works the unit proportio- nal in dependence of the humidity measured in the extract airfl...

  • Page 13: Filter Maintenance

    2.5. FILTER MAINTENANCE We recommend a periodical maintenance of the fi lters (mi- nimum 1x year). After the adjusted period de alarm will be activate. For changing the fi lter, please remove the plastic taps (1) put the fi lters (2) out and substitute them with new ones. After chan- ging the fi...

  • Page 14: Alarm Index

    2.7. ALARM INDEX Through the LED located in the “A” button on the remote control it is possible to supervise the status of the unit. This LED will show the alarm in case of a failure or missfunction on the unit. Depending on the risk level of the generated alarm the unit will stop for safety reasons.
  • Page 15 Waste Management Plant at the end of its ser- vicable life. 2.10. ERP DATA Ecodesign Commission regulation (EU) N°1253/2014 of July 2014 Information requirements (Annex V) ALTAIR 120 H Trade mark S&P Identifi er 5153811000 SEC average climate (kWh/(m2.an))
  • Page 16 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 Fax +34 93 571 93 01 www.solerpalau.com Ref. 9023083901...
