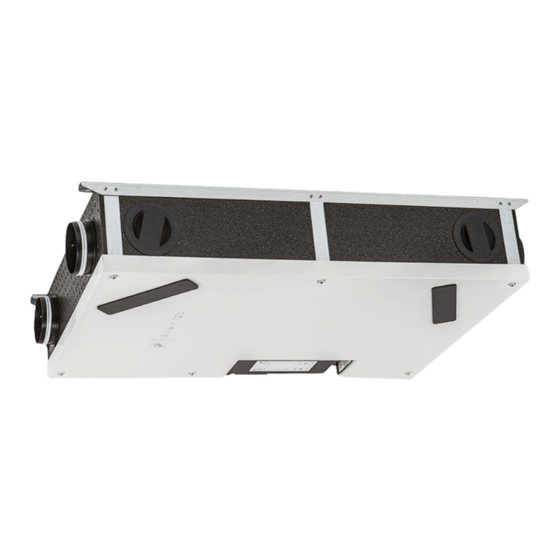

  • Page 1 ALTAIR 120 H ALTAIR 160 H False ceiling mounting...
  • Page 2 1. Heat recovery unit ALTAIR 2. Exhaust air (EHA) 3. Outdoor air (ODA) 4. Extract air (ETA) 5. Supply air (SUP) 6. G4 fi lter (extract air) 7. G4 fi lter (outdoor air) 8. Supply air fan 9. Exhaust air fan 10.

  • Page 3: Safety Instructions

    1. GENERAL 1.1. WARNINGS This product was manufactured according to rigorous technical safety rules in compliance with DC standards. The DC declaration and the manual can be downloaded from the Internet. Before installing and using this product, carefully read these instructions, which contain important indications to ensure your safety and that of the users during the installation, commissioning and servicing of this product.

  • Page 4: Warranty

    Before starting, check the following points: • Make sure that the device does not contain any foreign body. • Make sure that all the components are attached in their original placements. • Check the earthing connection. • Precautions must be taken to avoid the back-fl ow of gases into the room from the open fl ue of gas or other fuel-bur- ning appliances (for duct and partition fans).
  • Page 5 Outdoor air (ODA): Install the fresh air intake (wall or roof) at a su- ffi cient distance from any source of high pollu- tion (trees, exhaust fumes, roads, etc.) This duct must be sealed and in- sulated to prevent condensation. Supply air (SUP): To avoid thermal losses and optimize the per- formance of the installation, it is recommended...

  • Page 6: Remote Control

    2.2. DIMENSIONS AND ELECTRIC CONNECTION Dim. ALTAIR ALTAIR 120 H 160 H 90 mm 106 mm 360 mm 313 mm 550 mm 550 mm 94 mm 123 mm 22 mm 22 mm 660 mm 729 mm 850 mm 970 mm 30 mm 32 mm 178 mm...

  • Page 7: Installation

    2.3. INSTALLATION Ceiling: lateral view ALTAIR 120 H: X = 30 mm ALTAIR 160 H: X = 20 mm To avoid the vibration transmission and noise to the duct, we recommend to use fl exible connections. ALTAIR 120 H Supply/Extract air: Installation of fl exible silencers type LAF 95 0,5M (5209358600) / LAF 95 1M (5209358500) Outdoor/Exhaust Air: Connection with fl...
  • Page 8 The potentiometer “balance airfl ows” allows to work in over/under pressure if wished. Airfl ow adjustment low speed Potentiometer position ALTAIR 120 H / Assigned value (m ALTAIR 160 H / Assigned value (m medium speed Potentiometer position ALTAIR 120 H / Assigned value (m ALTAIR 160 H / Assigned value (m...
  • Page 9 Adjustment of the fi lter maintenance period It is possible to set the period to 6, 9, 12, or 15 months (12 month factory setting). The fi lter clogging depends on the pollution of the area where the unit is installed. We recommend checking the time in which the fi lter clogs and adjus- ting this period.
  • Page 10 Adjustment of the relative humidity % The ALTAIR has as a standard a humidity sensor in the extract air installed. This sensor allows to adjust the velocity in dependence of the relative humidity in the extract air. The upper limit of the relative humidity can be adjusted with the potentiometer as shown below (factory setting position A=84% rH).
  • Page 11 Electronic board description without function without function DIP SWITCH 6: 1 (Default command) - 0 (SPCM) without function Set point humidity sensor. No function in case of connection of the SPCM-1 Module USB connector (for software updates) temperature sensor humidity sensor extract fan supply fan power supply motors (230V/50Hz)
  • Page 12 Remote control adjustments – USER Speed adjustment Pressing the “speed adjustment” buttons you can change the airfl ow. The LED of the active botton will light green (left fan symbol= decrease speed, right fan symbol=increase speed). Automatic mode Pressing the button “A” there can be activated the automatic mode. In the automatic mode works the unit proportio- nal in dependence of the humidity measured in the extract airfl...

  • Page 13: Filter Maintenance

    2.5. FILTER MAINTENANCE We recommend a periodical maintenance of the fi lters (mi- nimum 1x year). After the adjusted period de alarm will be activate. For changing the fi lter, please remove the plastic taps (1) put the fi lters (2) out and substitute them with new ones. After chan- ging the fi...

  • Page 14: Alarm Index

    Filter alarm Red, continous after 60 days the unit stops if fi lter is not changed an alarm reseted 2.8. GENERAL DATA Parameter ALTAIR 120 H ALTAIR 160 H Height 850 mm 970 mm Width 550 mm 550 mm Depth...
  • Page 15 Waste Management Plant at the end of its ser- vicable life. 2.10. ERP DATA Ecodesign Commission regulation (EU) N°1253/2014 of July 2014 Information requirements (Annex V) ALTAIR 120 H ALTAIR 160 H Trade mark S&P S&P Identifi er 5153811000 5153182800 SEC average climate (kWh/(m².an))
  • Page 16 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 www.solerpalau.com Ref. 9023110800-03...
