Umbaubericht
Lokomotiven
Piko VT 11.5 TEE en
Backfitting plan of a TEE from PIKO.
Needed parts:
1 x XLS 8220570
1 x LED lighting board 8124001
1 x LED lighting set from for middle waggons or a selfmade PCB
This plan describes the 1 speaker version.
If you wan't to install 2 speaker, you HAVE TO USE 4 Ohm speakers instead, and connect
them serial.
Opening the locomotive is quite easy, remove at the traction unit in front the rear plastic cover.
Press lightly on top and pulls the upper part backwards.

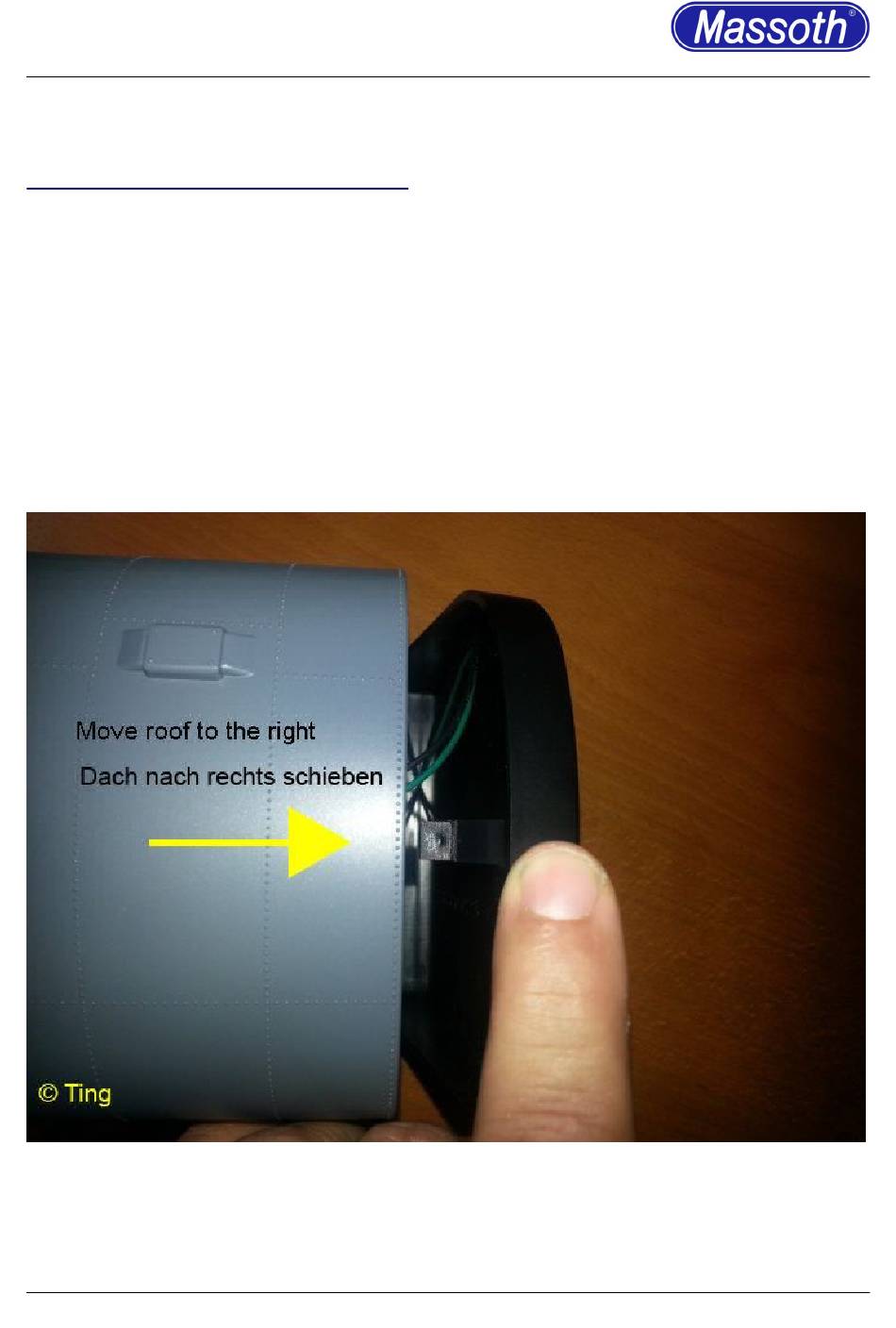

Then turn the roof backwards and remove it. (Pict 1).
Pict 1: Removing roof
To remove the front top, pull down the coupler and in the same time push in front of the top (under
TEE) and remove it to the top. (Pict 2)
Stand 18.04.2020
