LGB 2x410 RhB Tm 2/2 Tractor

Backfitting of a LGB "RhB Tm 2/2" Tractor wit a eMotion-S Soundmodule. (Pict 1)

The loco already has a small onboard LGB Dekdoder. The original remains in the locomotive.

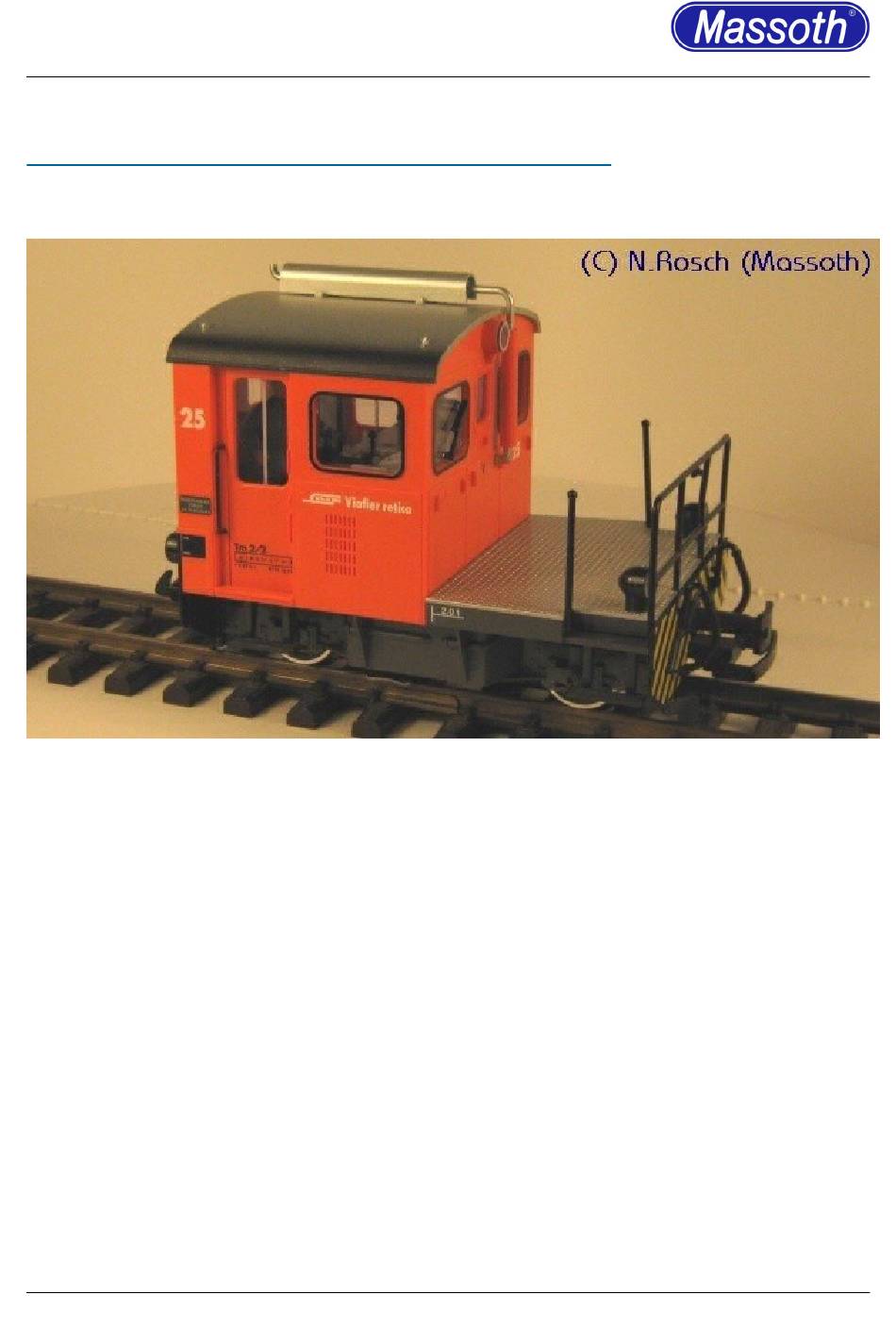

Pict-1: LGB 20410 : "RhB Tm 2/2"

Needed Parts:

1x 8222100 eMotion-S Soundmodule (with Soundupdate 8222041)

1x 8241040 Speaker 40x40 mm

Screws to mount speaker

Stand 16.04.2020

Seite 1 / 4

Table of Contents

Do you have a question about the LGB 20410 and is the answer not in the manual?

Page 1 Backfitting of a LGB “RhB Tm 2/2” Tractor wit a eMotion-S Soundmodule. (Pict 1) The loco already has a small onboard LGB Dekdoder. The original remains in the locomotive. Pict-1: LGB 20410 : “RhB Tm 2/2” Needed Parts: 1x 8222100 eMotion-S Soundmodule (with Soundupdate 8222041)
Page 2 Umbaubericht Lokomotiven Pict-2: Opening of the loco. Backfitting: • Remove the 6 marked screws at the bottom. • Take first the open platform. • Remove the cabin. Pict-3: Installing speaker • Remove the recessed side wall of the cab behind the bars. •...
Page 3 Umbaubericht Lokomotiven Pict-4: Connecting S-Decoder • Program the S Decoder before mounting to the same address like the loco decoder. • Solder the white + brown cable to the “Track+” and “Track-” of the motor connector. • Remove the lower part of the decoder plate (see marker) so that the speaker fits. Pict-5: Mounting Decoder •...
Page 4 Umbaubericht Lokomotiven Programming: • Cause of the low resonance volume in the loco i raised up the volume : CV200=45. • To bring the distinctive sound of switching to better advantage, I increased the delay : CV3 + CV4 = 20 •...
