Hausted 4160 Operating Manual

Pediatric care stretcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

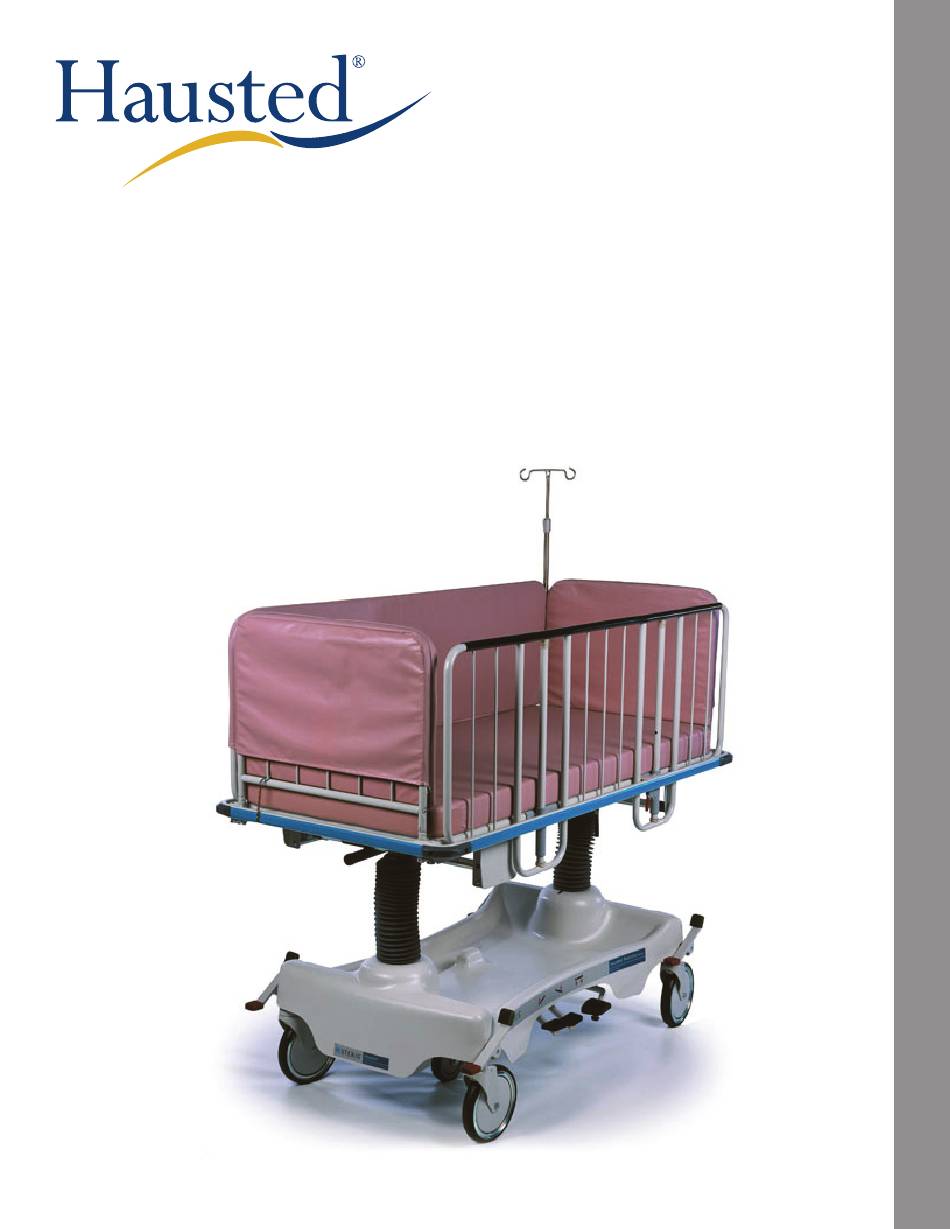

Operating Manual
Hausted
pediatric Care Stretcher
®
Model: 4160
GFH1300119RevA13
GF HEALTH PRODUCTS, INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4160 and is the answer not in the manual?

Questions and answers

Related Manuals for Hausted 4160

Summary of Contents for Hausted 4160

  • Page 1 Operating Manual Hausted pediatric Care Stretcher ® Model: 4160 GFH1300119RevA13 GF HEALTH PRODUCTS, INC.
  • Page 2 WARNING - COPYING PROHIBITED this manual is protected by Federal Copyright law, which provides for damages of up to uSD $20000, as well as criminal fines and imprisonment, for unauthorized copying.
  • Page 3 FrOM GF HEALTH PRODUCTS, INC. advisory this manual contains important information on proper use and maintenance of the Hausted® pediatric Care a listing of the safety precautions to be observed Stretcher. all personnel involved in the use and main-...
  • Page 4 336 Trowbridge Drive Fond du Lac, WI 54937 678.291.3207 Main 770.368.2386 Fax www.Hausted.com equipment not suitable for use in the presence of a flammable anesthetic mixture with air or oxygen or nitrous oxide. the base language of this document is engliSH.

  • Page 5: Table Of Contents

    taBle OF COntentS 1 listing of warnings and Cautions ........................ 2 uncrating instructions ............................3 Operating instructions ............................3.1 Braking and Steering Operation..........................3-1 3.1.1 applying the Brakes ..............................3-1 3.1.2 releasing the Brakes ..............................3-1 3.1.3 applying the Steering lock ..........................3-1 3.1.4 releasing the Steering lock ..........................3-2 3.2 Stretcher top Height adjustment ...........................3-2 3.2.1 Height adjustment ..............................3-2...

  • Page 6: Listing Of Warnings And Cautions

    OF warningS anD CautiOnS the following Safety precautions must be observed when operating or servicing this Hausted® pediatric Care Stretcher. warning indicates the potential for personal injury and CautiOn indicates the potential for damage to equipment. For emphasis, certain Safety precautions are repeated throughout the manual.

  • Page 7: Uncrating Instructions

    - leave carton intact. leave the equipment in the receiving your Hausted equipment has been carefully packed area until inspection is complete. at our manufacturing plant to ensure safe shipment CautiOn - pOSSiBle eQuipMent to your medical facility.

  • Page 8: Operating Instructions

    Operating inStruCtiOnS 3.1 BraKing anD Steering OperatiOn 3.1.1 applying the Brakes the four wheel central braking system is acti- vated by depressing the red pedal at any of the four corners of the unit (Figure 3-1). to fully engage the brakes, the pedal should be pressed Figure 3 - 1 to approximately 45º.

  • Page 9: Stretcher Top Height Adjustment

    Operating inStruCtiOnS 3.2 StretCHer tOp HeigHt aDJuStMent 3.2.1 Height adjustment press the pump pedal to the floor (Figure 3-4), then release. repeat this process until desired height is obtained. use smooth strokes on the pedal to ensure patient comfort. Figure 3 - 4 3.2.2 lowering litter top press down on the two release pedals at the same time (Figure 3-5) until desired height is...

  • Page 10: Fowler Operation

    Operating inStruCtiOnS 3.3 FOwler OperatiOn 3.3.1 raising the Fowler grasp the fowler frame tube (Figure 3-8a), and lift up on the fowler. when desired height is reached, lower the fowler slightly until the ratchet plates are engaged (Figure 3-8B). Be Figure 3 - 8a sure the fowler is locked into place by pushing down slightly on the fowler before releasing...

  • Page 11: Rail Operation

    Operating inStruCtiOnS 3.4 rail OperatiOn 3.4.1 raising the rail to Full Height grasp the rail top tube in the center of the rail (Figure 3-10a), with free hand squeeze the rail trigger (Figure 3-10B). lift the rail all the way up (Figure 3-10C).

  • Page 12: Preventive Maintenance For The User

    NOTE: For more detailed information, please contact GF Health Products, Inc. at 678.291.3165. NOTE: In addition to the User Preventive Maintenance, a more detailed Preventive Maintenance Program is also required to keep the equipment in good working order. This Preventive Maintenance Program is found on our website, at www.Hausted.com. GFH1300119RevA13...

  • Page 13: Recommended Optional Accessories

    reCOMMenDeD OptiOnal aCCeSSOrieS accessories 00011p-00 1” thick Foam padded Side and end rails, Color: Mauve 000012-00 restraint Straps with Buckle apC012-00 restraint Straps with Velcro 000e17-00 i.V. rod 42” Stainless Steel 000018-00 telescoping i.V. rod, 27” to 60” 2 Section, with Holder, Stainless 126740-00 infusion pump i.V.

  • Page 14: Replacement Parts

    Significant assemblies and components of the Hausted® Horizon Series Stretchers are illustrated and identified in this section. the part number, the description and the quantity required for each usage are given. each indenta- tion in the description represents the assembly level. the unitS per aSSeMBly column is specific for the given assembly or subassembly level.

  • Page 15: List Of Illustrations

    6.2 liSt OF illuStratiOnS Figure 6-1. Model 4160 Base Final assembly (part 1 of 2) ......................6-4 Figure 6-1. Model 4160 Base Final assembly (part 2 of 2) ......................6-5 Figure 6-2. Fowler assembly ..................................6-8 Figure 6-3. pediatric rail assembly ..............................6-10 Figure 6-4.
  • Page 16 Figure 6 - 1. MODel 4160 BaSe Final aSSeMBly ( part 1 OF 2 ) Figure 6 - 1. MODel 4160 BaSe Final aSSeMBly ( part 1 OF 2 ) GFH1300119RevA13...
  • Page 17 Figure 6 - 1. MODel 4160 BaSe Final aSSeMBly ( part 2 OF 2 ) Figure 6 - 1. MODel 4160 BaSe Final aSSeMBly ( part 2 OF 2 ) GFH1300119RevA13...
  • Page 18 Figure 6 - 1. MODel 4160 BaSe Final aSSeMBly item no. part no. C Description units per assembly 150830 MODEL 4160 BASE FINAL ASSEMBLY 069026 aSSeMBly, Short Base Frame 075271 CaSter, 8” tente, Brake total/lock (units made after 1-3- 069018 CaSter, 6”...
  • Page 19 Figure 6 - 1. MODel 4160 BaSe Final aSSeMBly item no. part no. C Description units per assembly 069492 BuMper, Stop 075249 tape, teflon, 2.5 x .75 031076 waSHer, Special Flat 069481 BraCKet, axle Bearing 068512 lOOp, Velcro...
  • Page 20 reCOMMenDeD replaCeMent partS Figure 6 - 2. FOwler aSSeMBly Figure 6 - 2. FOwler aSSeMBly GFH1300119RevA13...
  • Page 21 reCOMMenDeD replaCeMent partS Figure 6 - 2. FOwler aSSeMBly item no. part no. C Description units per assembly 069497 FOWLER ASSEMBLY 068128 SCrew, Button Head Socket, 1/4-20 x 1-1/4 069041 aSSeMBly, Fowler 069085 SuppOrt, pediatric Fowler 062038 SCrew, Button Head Socket, 1/4-20 x 3/4 069079 HanDle, Manual Fowler adjustment GFH1300119RevA13...
  • Page 22 reCOMMenDeD replaCeMent partS Figure 6 - 3. peDiatriC rail aSSeMBly Figure 6 - 3. peDiatriC rail aSSeMBly GFH1300119RevA13...
  • Page 23 reCOMMenDeD replaCeMent partS Figure 6 - 3. peDiatriC rail aSSeMBly item no. part no. C Description units per assembly 069059 PEDIATRIC RAIL ASSEMBLY 069055 welDMent, pediatric rail 056397 tuBe, pediatric rail lock 056397 tuBe, pediatric rail Slide 056397 aSSeMBly, locking guide tube 069084 SuppOrt, pediatric rail guide 150830...
  • Page 24 reCOMMenDeD replaCeMent partS Figure 6 - 4. lOCKing guiDe tuBe – peDiatriC rail aSSeMBly Figure 6 - 4. lOCKing guiDe tuBe – peDiatriC rail aSSeMBly 6-11 GFH1300119RevA13...
  • Page 25 reCOMMenDeD replaCeMent partS Figure 6 - 4. lOCKing guiDe tuBe – peDiatriC rail aSSeMBly item no. part no. C Description units per assembly 056397 LOCKING GUIDE TUBE - PEDIATRIC RAIL ASSEMBLY 031114 pin, roll, 3/32 x .500 035282 pin, Cotter, .093 x .750 035285 aSSeMBly, Vertical rail guide tube 035422...
  • Page 26 reCOMMenDeD replaCeMent partS Figure 6 - 5. Final aSSeMBly ( part 1 OF 2 ) Figure 6 - 5. Final aSSeMBly ( part 1 OF 2 ) 6-13 GFH1300119RevA13...
  • Page 27 reCOMMenDeD replaCeMent partS Figure 6 - 5. Final aSSeMBly ( part 2 OF 2 ) Figure 6 - 5. Final aSSeMBly ( part 2 OF 2 ) 6-14 GFH1300119RevA13...
  • Page 28 reCOMMenDeD replaCeMent partS Figure 6 - 5. Final aSSeMBly item no. part no. C Description units per assembly P69095 FINAL ASSEMBLY 150830 aSSeMBly, Base 069400 SuB-aSSeMBly, Bellows 031021 SCrew, round Head, 1/4-20 x 1.4 075226 Cap, i.V. well top 075229 Clip, 1/8 nylon arrow 069294 CrOSStuBe, Foot end...
  • Page 29 reCOMMenDeD replaCeMent partS Figure 6 - 5. Final aSSeMBly item no. part no. C Description units per assembly p69090 SHeet, Fowler Cover 000794 riVet, pop 3/16 067958 BuMper, Corner 031455 nut, Channel, 1/4-20 068154 eXtruSiOn, gray end Bumper 150830 eXtruSiOn, gray Side Bumper 031212 HOOK, Black Velcro, 2 x12...
  • Page 30 Figure 6 - 6. 4160 FiFtH wHeel Center traCK aSSeMBly Figure 6 - 6. 4160 FiFtH wHeel Center traCK aSSeMBly 6-17 GFH1300119RevA13...
  • Page 31 Figure 6 - 6. 4160 FiFtH wHeel Center traCK aSSeMBly item no. part no. C Description units per assembly 069060 4160 FIFTH WHEEL CENTER TRACK ASSEMBLY, 3” 068516 4160 FIFTH WHEEL CENTER TRACK ASSEMBLY, 4” 150830 aSSeMBly, Horizon Base 051308 nyliner, Flange, 3/4”...
  • Page 32 For additional information on this Hausted product or this warranty, please contact a Graham-Field authorized Distributor. NOTES: 1) Additional terms and conditions may apply.
  • Page 34 www.grahamfield.com...
