Summary of Contents for Hausted ESC2EYEST

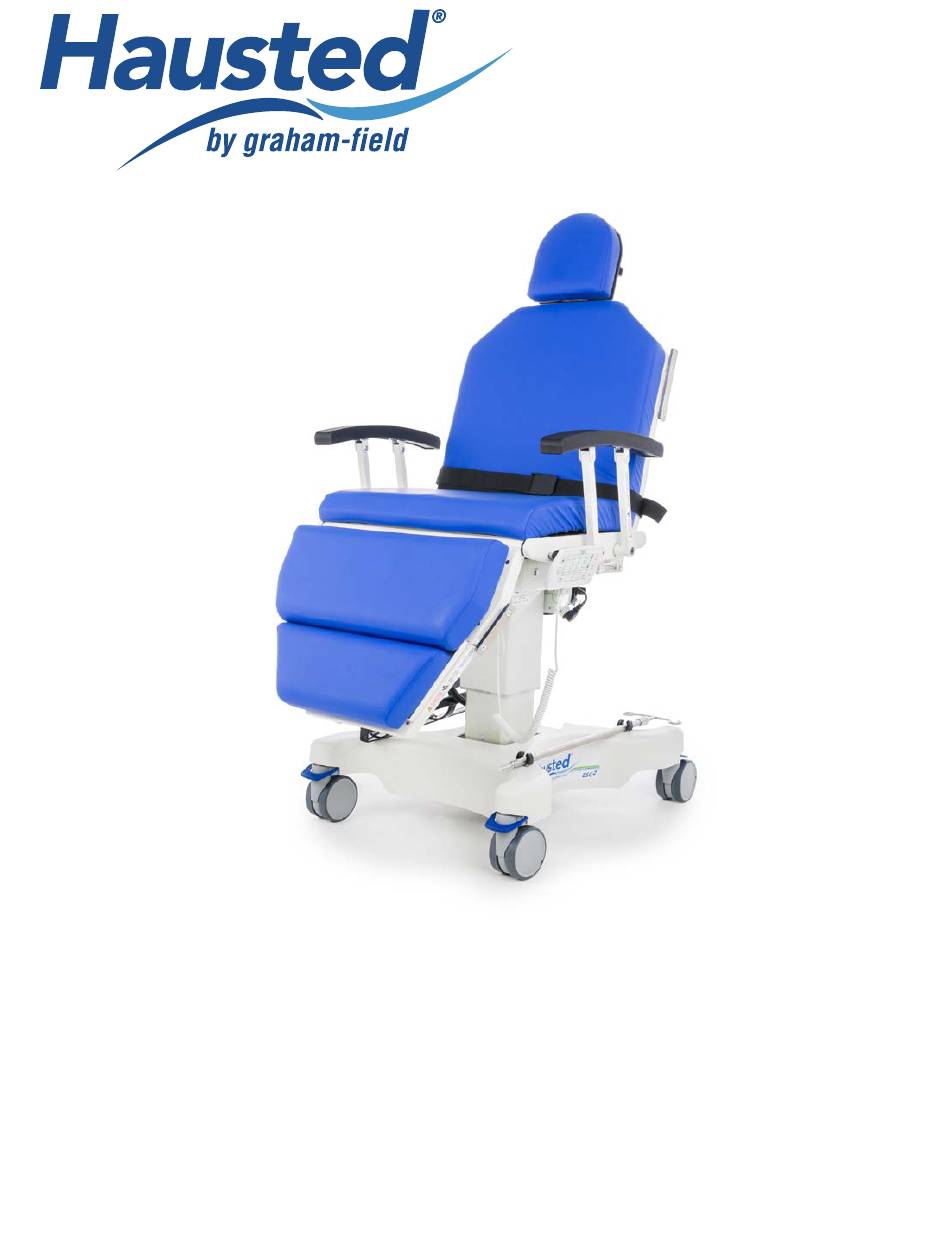

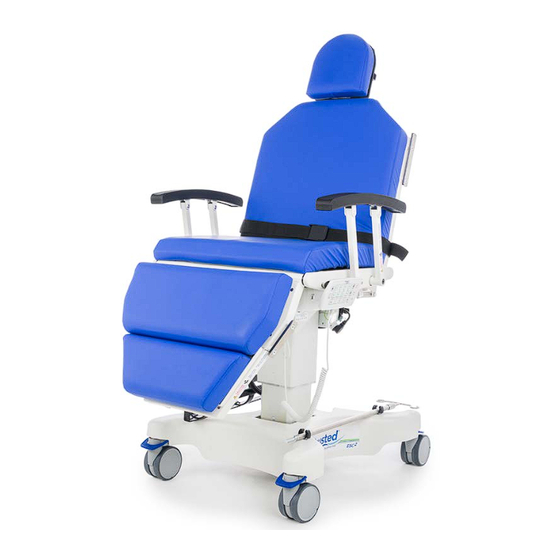

- Page 1 ESC2EYEST PROCEDURE CHAIR OPERATING MANUAL READ THIS MANUAL BEFORE OPERATING YOUR ESC2EYEST PROCEDURE CHAIR. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT WWW.HAUSTED.COM. ESC2EYEST-US-INS-LAB-REVA20...
-
Page 2: Table Of Contents
OPERATING .................................... 8 STORAGE AND TRANSPORT ..............................8 UNPACKING INSTRUCTIONS ................................ 8 OPERATING INSTRUCTIONS ................................. 9 3.1 ESC2EYEST SPECIFICATIONS ............................. 9 ELECTRICAL SPECIFICATIONS ............................10 IDENTIFICATION LABEL ..............................10 3.2 FEATURES, WARNINGS AND PROPER OPERATION OPERATING INSTRUCTIONS ............. 11 WARNINGS — CAUTIONS AND PROPER OPERATION (SEE DIAGRAM ON FOLLOWING PAGE) ....... 11 FEATURES (SHOWN IN ILLUSTRATION) ........................... - Page 3 4.2 BATTERY REPLACEMENT..............................31 PREVENTIVE MAINTENANCE FOR THE USER .......................... 33 OPTIONAL ACCESSORIES ................................34 GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED BRAND PRODUCT LINE WITHIN THE U.S....35 DISPOSAL AND KEY TO SYMBOLS ............................36 DISPOSAL ...................................... 36 KEY TO SYMBOLS ..................................
-
Page 4: Introduction - A Word From Gf Health Products, Inc
This manual contains important information on proper use and maintenance of the Hausted ESC2EYEST Procedure Chair. All personnel involved in the use and maintenance of this equipment must carefully review and comply with the warnings, cautions and instructions contained in this manual. -
Page 5: List Of Warnings And Cautions
ESC2EYEST Procedure Chair. Always consult your healthcare professional to determine safe methods most suitable for your individual abilities. Protect yourself, your attendant, and the Hausted ESC2EYEST Procedure Chair by having it serviced regularly. If you experience any malfunction, contact your Graham-Field authorized distributor immediately, as a hazardous condition could result, causing personal injury or damage to the Hausted ESC2EYEST Procedure Chair. -
Page 6: Warning - Cautions And Proper Operation
WARNING — CAUTIONS AND PROPER OPERATION WARNING: The ESC2EYEST Procedure Chair has a maximum patient weight capacity of 272 kg (600 lb), EVENLY DISTRIBUTED. WARNING: The ESC2EYEST Procedure Chair has a maximum weight, including equipment weight and maximum patient weight, of 393 kg (865 lb). -
Page 7: Electromagnetic Compatibility (Emc) Information
Leave unplugged while transmission is in progress. WARNING: The use of accessories, transducers, and cables other than those specified by the manufacturer may result in increased emissions or decreased immunity of the Hausted equipment. GF cables and accessories include motor cables, mains cable, pendant cables, and back up battery and cable. -
Page 8: Uncrating Instructions
IMPORTANT: Follow each step in the order shown in these instructions. UNPACKING INSTRUCTIONS Your Hausted equipment has been carefully packed at our manufacturing plant to ensure safe shipment to your medical facility. There are several procedures you must follow to put your new equipment in service. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS ESC2EYEST SPECIFICATIONS Info: All dimensions are specified in [millimeters] and inches. Unless otherwise noted, all dimensions are ± [10 mm] .375 in. Dual dimensions are minimum (left) and maximum (right) when shown in chair position, and opposite — maximum (left) and minimum (right) when shown in Trendelenburg position. -
Page 10: Electrical Specifications
Have this information ready when calling our Customer Service or Technical Support staff at 1.770.368.4700; it will allow us to better assist you and quickly answer your questions and concerns. ESC2EYEST-US-INS-LAB-RevA20... -
Page 11: Features, Warnings And Proper Operation Operating Instructions
FEATURES, WARNINGS AND PROPER OPERATION OPERATING INSTRUCTIONS WARNINGS — CAUTIONS AND PROPER OPERATION (See Diagram on following page) WARNING: The ESC2EYEST Procedure Chair has a maximum patient weight capacity of 272 kg (600 lb), EVENLY DISTRIBUTED. WARNING: The ESC2EYEST Procedure Chair has a maximum weight capacity, including equipment weight and patient weight, of 393 kg (865 lb). -
Page 12: Features (Shown In Illustration)
ELECTRIC CONTROL BOX CIRCUITRY See WARNINGS M — O BRAKE PEDAL See WARNINGS G & I PATIENT PENDANT WARNING LABEL See WARNING J FOOT SECTION TUBE WARNING LABEL See WARNINGS C & H ADJUSTABLE FOOTREST WARNING LABEL See WARNINGS D & P ESC2EYEST-US-INS-LAB-RevA20... -
Page 13: Braking And Steering Operation With Smart Caster Technology
(Figure 3.3-4), and all four caster wheels will then rotate and swivel freely. WARNING: Ensure the brakes are locked when the patient is not being transported. s NOTICE: DO NOT apply excessive force Figure 3.3-4 to pedal when manually unlocking brakes. ESC2EYEST-US-INS-LAB-RevA20... -
Page 14: Activating Advanced Steer Mode - Pendant
Steer-Lock position. This is ideal for pushing the chair from the patient foot end. Info: It is not possible to activate the rear casters in Steer Mode with the pendant. This can only be done manually. ESC2EYEST-US-INS-LAB-RevA20... -
Page 15: Deactivating Steer Mode - Pendant
Mode only while the chair is stopped. Caster Pedal Positions The table below shows caster pedal in all three positions. CASTER PEDAL POSITIONS Pedal Up Steer-Lock Position Figure 3.3-2 Pedal Horizontal Neutral Position (Swivel) Pedal Down Brake Position (Locked) ESC2EYEST-US-INS-LAB-RevA20... -
Page 16: Electric Control Locations
The plug is located on the back of the control box (Figure 3.4-2). Do not position the unit so that it is difficult to disconnect the plug. WARNING: ESC2EYEST Procedure Chair is equipped with a built in battery back-up system: nevertheless, the unit should remain plugged into wall receptacle during normal use. -
Page 17: Height And Patient Surface Adjustment
Press and hold HEIGHT button (2) until desired height is achieved. LED illuminates steady green while pressed, goes out when released. HEIGHT DOWN Press and hold HEIGHT DOWN button (9) until desired height is achieved. LED illuminates steady green while pressed, goes out when released. ESC2EYEST-US-INS-LAB-RevA20... -
Page 18: Back Section Up / Down (Buttons 3 And 10)
SEAT TILT UP achieved. LED illuminates steady green while pressed, goes out when released. Press and hold SEAT TILT DOWN button (11) until desired position SEAT TILT DOWN is achieved. LED illuminates steady green while pressed, goes out when released. ESC2EYEST-US-INS-LAB-RevA20... -
Page 19: Leg Up / Down (Buttons 5 And 12)
30 consecutive seconds. Press STEER MODE button to toggle on / off. When steer mode is activated, LED illuminates steady green; when steer mode is off, STEER MODE LED goes out. Note: Steer mode is not operable when brake is activated. ESC2EYEST-US-INS-LAB-RevA20... -
Page 20: Trendelenburg And Supine Positions (Buttons 7 And 14)
PRESET 2 Press and hold PRESET 2 button until saved pre-programmed position is achieved. LED illuminates steady green while pressed, goes out when released. PRESET 3 Press and hold PRESET 3 button until saved pre-programmed position is achieved. LED illuminates steady green while pressed, goes out when released. ESC2EYEST-US-INS-LAB-RevA20... -
Page 21: Battery (Button 19)
3.5.10 HOME (button 8) Press and hold HOME button (8) until desired position is achieved. Chair automatically raises back section, lowers HOME leg section, and tilts seat section simultaneously; chair also automatically adjusts height. No LED. ESC2EYEST-US-INS-LAB-RevA20... -
Page 22: Emergency Drop Back
(Figure 3.5-6). Figure 3.5-6 Info: When activating the emergency drop, depending on the back angle, you may need to push the back in order to initiate movement. ESC2EYEST-US-INS-LAB-RevA20... -
Page 23: Adjustable Footrest
Continue tilting the footrest until it is in the retracted position (Figure 3.6-5). Figure 3.6-2 WARNING: TIPPING HAZARD — Do not stand on footrest — tipping may occur. Figure 3.6-3 Figure 3.6-4 Figure 3.6-5 ESC2EYEST-US-INS-LAB-RevA20... -
Page 24: Adjustable Leg Extension
Seat is < 5° = 22" to 40" (55.9 cm to 101.6 cm) B. When the leg extension is fully retracted and the leg Figure 3.7-4 section is more than 65° from horizontal, the chair height will not travel below 22" (55.9 cm) (top of seat to floor). ESC2EYEST-US-INS-LAB-RevA20... -
Page 25: Pivoting Rails
Figure 3.8-2 the patient is secured with safety straps. WARNING: The chair has a warning label located on both pivoting rails indicating a pinch point between seat section and side rail. Figure 3.8-3 Figure 3.8-4 ESC2EYEST-US-INS-LAB-RevA20... -
Page 26: Headrest
(Figure 3.9-6). Info: After understanding which knob creates which action, quick and smooth infinite adjustment can be achieved by rotating the Figure 3.9-3 knobs simultaneously (Figure 3.9-7). Figure 3.9-4 Figure 3.9-5 Figure 3.9-6 Figure 3.9-7 ESC2EYEST-US-INS-LAB-RevA20... -
Page 27: Push Handles
(Figure 3.10-2), rotate Push Handles to stored position (Figure 3.10-1), and gently press Push Handles until they lock into Push Handle Retention Clips (Figure 3.10-3). WARNING: To prevent unintended interference, ensure Push Handles are stored as instructed when not in use. Figure 3.10-6 Figure 3.10-7 ESC2EYEST-US-INS-LAB-RevA20... -
Page 28: Common Optional Accessories
(Figure 3.11-4). Insert IV Rod into preferred IV well — there are two sockets on both sides of chair (Figure 3.11-5). Return IV Rod to storage clips when not in use (Figure 3.11-4). Figure 3.11-4 Figure 3.11-5 ESC2EYEST-US-INS-LAB-RevA20... -
Page 29: Using Safety Straps
2. Feed the bare strap through the buckle Figure 3.11-6 slot where the clamp pivots away from the base. 3. Pull on the bare strap until the patient is secure. 4. Close the clamp to lock the strap in place (Figure 3.11-6). ESC2EYEST-US-INS-LAB-RevA20... -
Page 30: Troubleshooting Guide
(see section 3.7.1). Press leg extension EXTEND or RETRACT button. Control box LED should illuminate amber. If so, replace the actuator. If not, replace the switch. GF Health Products, Inc. may be contacted at 1.770.368.4700 for additional information required to service or repair the equipment. ESC2EYEST-US-INS-LAB-RevA20... -
Page 31: Control Box
DANGER: SHOCK HAZARD — Always disconnect the power source whenever troubleshooting or servicing this chair. Info: The ESC2EYEST utilizes unique batteries Figure 4.2-1 specific to this unit (P/N H080812). To order, contact Graham-Field Customer Service at 1.770.368.4700. 1. Remove power cord storage bracket from control... - Page 32 Figure 4.2-4 6. Remove the cable from the battery and replace battery with new or recharged battery Hausted P/N H080812 (Figure 4.2-7). 7. To re-install the battery, repeat previous steps in reverse order. GF Health Products, Inc. may be contacted at 1.770.368.4700 for additional information...
-
Page 33: Preventive Maintenance For The User
Info: For more detailed information, contact GF Health Products, Inc. at 1.770.368.4700. Info: GF Health Products, Inc. offers customized Preventative Maintenance Service Programs for Hausted products; contact your GF sales representative for further information. ESC2EYEST-US-INS-LAB-RevA20... -
Page 34: Optional Accessories
WARNING: Use only accessories approved by GF Health Products, Inc. with this device. The use of accessories, transducers, and cables other than those specified by the manufacturer may result in increased emissions or decreased immunity of Hausted equipment. Info: To order accessories, or for more detailed information on accessories, please contact GF Health Products, Inc. at 1.770.368.4700. -
Page 35: Gf Health Products, Inc. Limited Warranty For Hausted Brand Product Line Within The U.s
For additional information on this Hausted product or this warranty, please contact a GF Customer Service Representative. NOTES: 1) Additional terms and conditions may apply. -
Page 36: Disposal And Key To Symbols
Combustion ESC2EYEST Info: Lithium batteries contained with the control box should be disposed of in accordance with local regulations. KEY TO SYMBOLS The following symbols are used on Hausted product labels. Protective Earth Manufacturer Earth Ground Keep Dry General Warning Sign... -
Page 37: Appendix
APPENDIX GUIDANCE AND MANUFACTURER’S DECLARATION — ELECTROMAGNETIC EMISSIONS The Hausted ESC2EYEST Procedure Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the Hausted ESC2EYEST Procedure Chair should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic Environment — Guidance RF emissions Group 1 The Hausted ESC2EYEST Procedure Chair uses RF CISPR 11 energy only for its internal function. -
Page 38: Enclosure Port Immunity To Rf Wireless Communications Equipment
4, 25; UMTS Bluetooth, Pulse WLAN, 2 400 – modulation 2 450 802.11 b/g/n, 2 570 RFID 2450, 217 Hz LTE Band 7 5 240 Pulse 5 100 – WLAN 802.11 modulation 5 500 5 800 217 Hz 5 785 ESC2EYEST-US-INS-LAB-RevA20... -
Page 39: Input Ac Power Port
250/300 cycles at any angle and at all phases at the same time (if applicable). M E EQUIPMENT with battery backup shall resume line power operation after the test. For SYSTEMS ME EQUIPMENT with input current not exceeding 16 A, all phases shall be interrupted simultaneously. ME SYSTEMS RATED ESC2EYEST-US-INS-LAB-RevA20... -
Page 40: Patient Coupling Port
Discharges shall be applied with no connection to an artificial hand and no connection to simulation. PATIENT simulation may be connected after the test as needed in order to verify ATIENT BASIC SAFETY ESSENTIAL PERFORMANCE ESC2EYEST-US-INS-LAB-RevA20... -
Page 41: Signal Input / Output Parts Port
5,4 MHz, 7 MHz to 7,3 MHz, 10,1 MHz to 10,15 MHz, 14 MHz to 14,2 MHz, 18,07 MHz to 18,17 MHz, 21,0 MHz to 21,4 MHz, 24,89 MHz to 24,99 MHz, 28,0 MHz to 29,7 MHz and 50,0 MHz to 54,0 MHz. ESC2EYEST-US-INS-LAB-RevA20... -
Page 42: Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And Hausted Esc2Eyest Procedure Chair
The Hausted ESC2EYEST Procedure Chair is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Hausted ESC2EYEST Procedure Chair can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Hausted ESC2EYEST Procedure Chair as recommended below, according to the maximum output power of the communications equipment. -
Page 43: Index
Service information 4 Service life, expected 4 STEER MODE operation button 19 DANGER statement, significance 5 Symbol key, Hausted product labels 36 DANGER / WARNING / CAUTION / NOTICE Summary 5 Disposal 36 Troubleshooting guide 30 Electromagnetic compatibility (EMC) information 7 Electromagnetic emissions, guidance and manufacturer’s... - Page 44 The most current and complete product information can be found on our website. www.grahamfield.com © 2020, GF Health Products, Inc. All Rights Reserved. Hausted is a trademark of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc. is an ISO 13485:2016 /MDSAP Certified Company...
