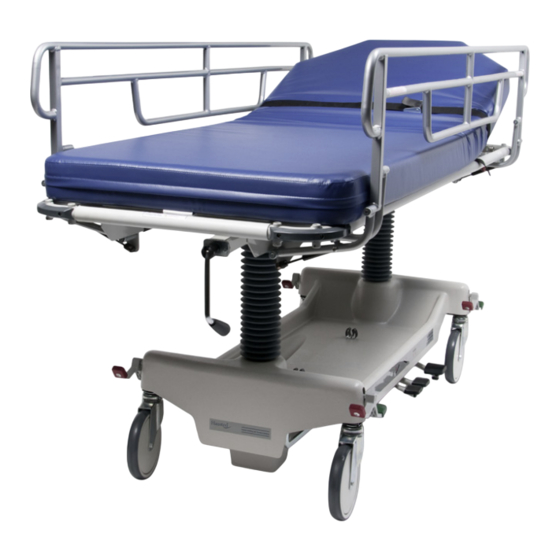

Hausted HORIZON Series Operating Manual

Stretchers with airglide rails, with retracto rails, with 3-position vertical side rails
Hide thumbs Also See for HORIZON Series:
Table of Contents

Advertisement

Quick Links

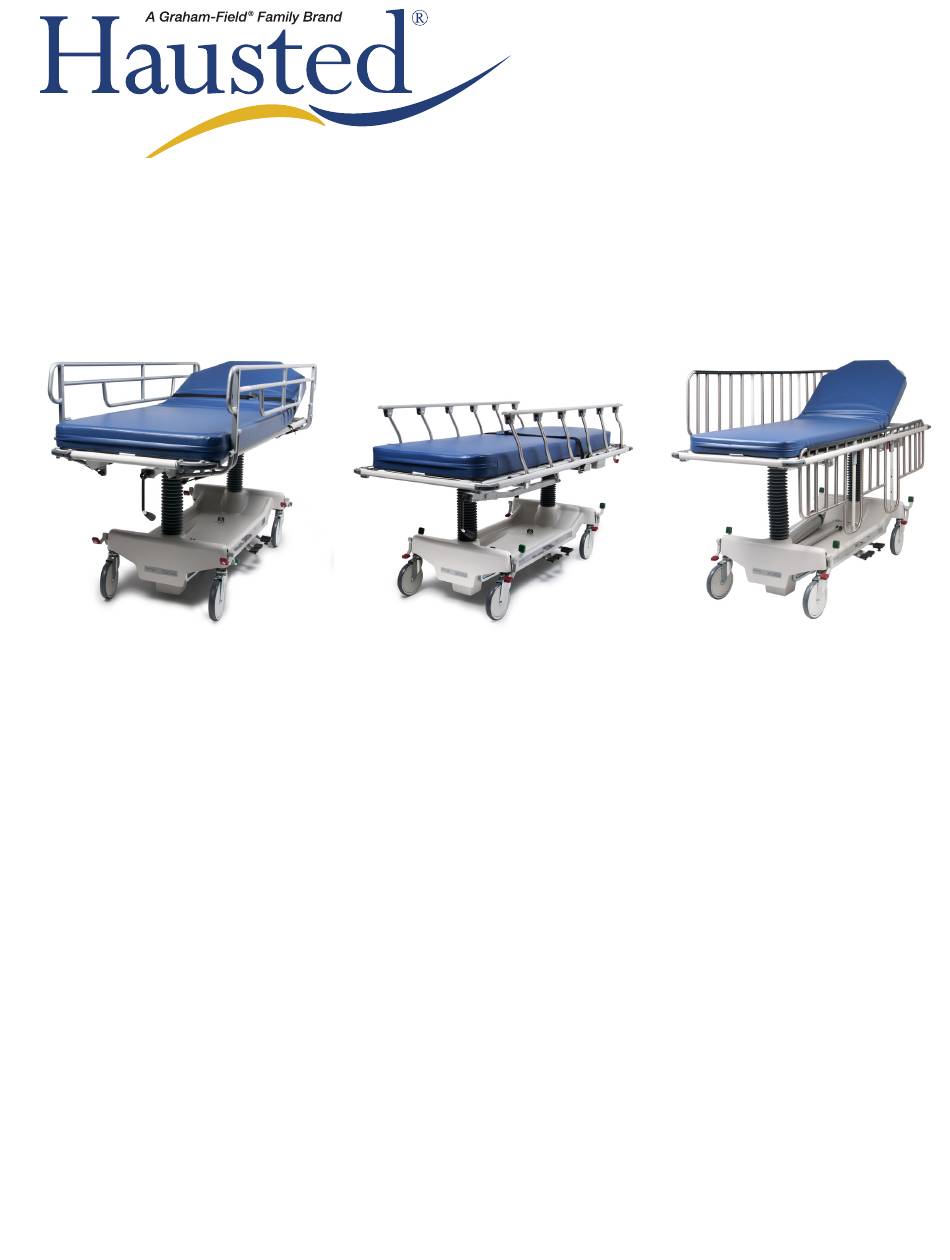

HAUSTED
With AirGlide
™
Models 462APAST,
462CPAST,
462DPAST
READ THIS MANUAL BEFORE OPERATING YOUR STRETCHER.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE
FOUND ONLINE AT WWW.HAUSTED.COM.
HORIZON
®
With Retracto
Rails:
Models 462EMCST,
OPERATING MANUAL
SAVE THIS MANUAL FOR FUTURE USE.
SERIES STRETCHERS
™
Rails:
™
462FMCST,
462GMCST,
462HMCST
With 3-Position
Vertical Side Rails:
Model 462EMPST
(Youth)
462-IN-INS-LAB-REVA16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HORIZON Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hausted HORIZON Series

Summary of Contents for Hausted HORIZON Series

  • Page 1 Models 462EMCST, Models 462APAST, 462FMCST, 462CPAST, Model 462EMPST 462GMCST, 462DPAST (Youth) 462HMCST OPERATING MANUAL READ THIS MANUAL BEFORE OPERATING YOUR STRETCHER. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT WWW.HAUSTED.COM. 462-IN-INS-LAB-REVA16...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC................4 INDICATIONS FOR USE ........................... 4 SERVICE INFORMATION ..........................4 ADVISORY ................................. 4 LIST OF WARNINGS AND CAUTIONS ........................5 SIGNIFICANCE OF SAFETY STATEMENTS ......................5 WARNING / CAUTION / NOTICE SUMMARY ....................5 WARNING: TO REDUCE THE RISK OF PERSONAL INJURY ............
  • Page 3 MODELS 462APAST, 462CPAST, 462DPAST ....................17 SPECIFICATIONS: HORIZON SERIES STRETCHERS WITH RETRACTO RAILS MODELS 462EMCST, 462FMCST, 462GMCST, 462HMCST ................18 SPECIFICATIONS: HORIZON SERIES STRETCHER WITH 3-POSITION VERTICAL SIDE RAILS MODEL 462EMPST ............................... 18 PREVENTIVE MAINTENANCE FOR THE USER ....................19 OPTIONAL ACCESSORIES ..........................

  • Page 4: Introduction - A Word From Gf Health Products, Inc

    INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC. This manual contains important information on proper use and maintenance of the Hausted Horizon Stretcher. All personnel involved in the use and maintenance of this equipment must carefully review and comply with the warnings, cautions and instructions contained in this manual.

  • Page 5: List Of Warnings And Cautions

    LIST OF WARNINGS AND CAUTIONS IMPORTANT: Before using the Hausted Horizon Stretcher, please read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to the Stretcher. Always consult your healthcare professional to determine safe methods most suitable for your individual abilities.
  • Page 6 WARNING: The caster braking system should always be locked and patient side rails in upright locked position when patient is left unattended. WARNING: Always ensure side rails are in upright locked position before leaving patient unattended. WARNING: Do not sit on head or foot end — tipping may occur. WARNING: Do not modify the equipment without the authorization of the manufacturer.

  • Page 7: Uncrating Instructions

    IMPORTANT: Follow each step in the order shown in these instructions. Your Hausted equipment has been carefully packed at our manufacturing plant to ensure safe shipment to your medical facility. There are several procedures you must follow to put your new equipment in service.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS BRAKING AND STEERING OPERATION WARNING—PERSONAL INJURY HAZARD AND / OR EQUIPMENT DAMAGE HAZARD: Figure 3-1 The caster braking system should always be locked when patient is not in transport. The caster braking system should always be locked and patient side rails in upright locked position when patient is left unattended.

  • Page 9: Applying The Steering Lock / Fifth Wheel

    WARNING—PROPER OPERATION HAZARD: Floors must be smooth and level to maintain optimum fifth wheel steering. Fifth wheel steering functions can be influenced by floor irregularities (bumps Figure 3-3 or dips) greater than 1/2" (13 mm) across the span of the stretcher. 3.1.3 Applying the Steering Lock / Fifth Wheel Depress the green pedal at any of the unit’s...

  • Page 10: Litter Top Height Adjustment

    LITTER TOP HEIGHT ADJUSTMENT 3.2.1 Height Adjustment Press pump pedal to floor (Figure 3-4), then release. Repeat this process until desired height is obtained. Use smooth strokes on pump pedal to ensure patient comfort. Figure 3-4 3.2.2 Lowering Litter Top Press down on two release pedals at the same time (Figure 3-5) until desired height is obtained.

  • Page 11: Fowler Backrest Operation

    FOWLER BACKREST OPERATION 3.3.1 Raising the Backrest Grasp fowler backrest frame tube and gas spring activating handle from either side of stretcher. Squeeze handle and tube together Figure 3-8 and lift. Once desired incline is achieved, release handle. Info: the amount of manual lifting required will vary depending on patient size;...

  • Page 12: Backrest / Knee Flex Operation

    BACKREST / KNEE FLEX OPERATION 3.4.1 Raising the Backrest / Knee Flex To elevate backrest or knee flex, flip crank handle upwards, and rotate crank handle clockwise. See Figure 3-9. When reaching desired position, stop rotating handle and Figure 3-9 return crank handle to its original position.

  • Page 13: Airglide Rail Operation

    AIRGLIDE RAIL OPERATION (Models 462APAST, 462CPAST, 462DPAST) 3.5.1 Raising the AirGlide Rail Refer to Figures 3-11A & 3-11B. Grasp rail top tube from under litter top firmly, then pull up until rail locks into full up position. WARNING: Verify latching of rail before Figure 3-11A leaving patient unattended.

  • Page 14: Installing The Armboard Adapter And Surgical Bar

    3.5.3 Installing the Armboard Adapter and Surgical Bar 1. Refer to Figure 3-13. Install surgical bar adapter by positioning adapter over bumper channel and pad, then slide adapter downward until it rests on channel. 2. Refer to Figure 3-14. Secure adapter by inserting tethered pin into hole in Figure 3-13 adapter.

  • Page 15: Retracto Rail Operation

    RETRACTO RAIL OPERATION (Models 462EMCST, 462FMCST, 462GMCST, 462HMCST) — WARNING –PROPER OPERATION HAZARD: Patient entry, egress and transfer should always be done with caster braking system locked. Figure 3-16 Caster braking system should always be locked and patient side rails in upright locked position when patient is left unattended.

  • Page 16: 3-Position Vertical Side Rail Operation (Youth Stretcher)

    3-POSITION VERTICAL SIDE RAIL OPERATION (YOUTH STRETCHER) (Model 462EMPST) WARNING–PROPER OPERATION HAZARD: Patient entry, egress and transfer should always be done with caster braking system locked. Caster braking system should always be locked and patient side rails in upright locked position Figure 3-18A when patient is left unattended.

  • Page 17: Specifications

    WARNING: Horizon series Stretcher models 462APAST, 462CPAST, 462EMCST, 462GMCST, and 462EMPST have a maximum weight capacity of 500 lb (227 kg). Horizon series Stretcher models 462DPAST, 462FMCST, and 462HMCST have a maximum weight capacity of 800 lb (363 kg). All Horizon stretchers have a warning label at head or foot end of stretcher top frame that states maximum weight capacity.

  • Page 18: Specifications: Horizon Series Stretchers With Retracto Rails Models 462Emcst, 462Fmcst, 462Gmcst, 462Hmcst

    SPECIFICATIONS: HORIZON SERIES STRETCHERS WITH RETRACTO RAILS MODELS 462EMCST, 462FMCST, 462GMCST, 462HMCST Model Standard Width Wide Width 462EMCST, 462GMCST 462FMCST, 462HMCST Specification Maximum Height 34.75 in (88 cm) 34.75 in (88 cm) Minimum Height 22.25 in (56.5 cm) 22.25 in (56.5 cm)

  • Page 19: Preventive Maintenance For The User

    Info: For more detailed information, please contact GF Health Products, Inc. at 770-368-4700. Info: In addition to the User Preventive Maintenance, a more detailed Preventive Maintenance Program is also required to keep the equipment in good working order. This Preventive Maintenance Program is found on our website, at www.Hausted.com. 462-IN-INS-LAB-RevA16...

  • Page 20: Optional Accessories

    OPTIONAL ACCESSORIES Horizon Series Stretchers, as Listed Model Item No. Description H07633400 Armboard and Surgical Bar Adapter H06518000 Armboard w/1 in (2.5 cm) Pad and Adapter H00005400 Lateral X-Ray Cassette Holder H131490 Articulating Headrest 22 1/4 in (56.5 cm) H131495...

  • Page 21: Gf Health Products, Inc. Limited Warranty For Hausted Brand Product Line Outside The U.s

    For additional information on this Hausted product or this warranty, please contact a Graham-Field authorized Distributor. NOTES: 1) Additional terms and conditions may apply.

  • Page 22: Disposal And Key To Symbols

    462APAST 462CPAST 462DPAST 462EMCST 462FMCST 462GMCST 462HMCST 462EMPST KEY TO SYMBOLS The following symbols are used on Hausted product labels. Protective Earth Manufacturer Earth Ground Keep Dry General Warning Sign Fragile, Handle with Care CE Mark Electrical and Electronic Equipment...

  • Page 23: Index

    Safety statements, significance of 5 AirGlide rail operation 13 Service information 4 AirGlide rail, raising 13 Specifications: Horizon series stretchers with AirGlide Armboard adapter and surgical bar, installing 14 rails 17 Armboard, removing 14 Specifications: Horizon Series stretchers with Retracto A word from GF Health Products, Inc.
