Summary of Contents for Hausted MBC

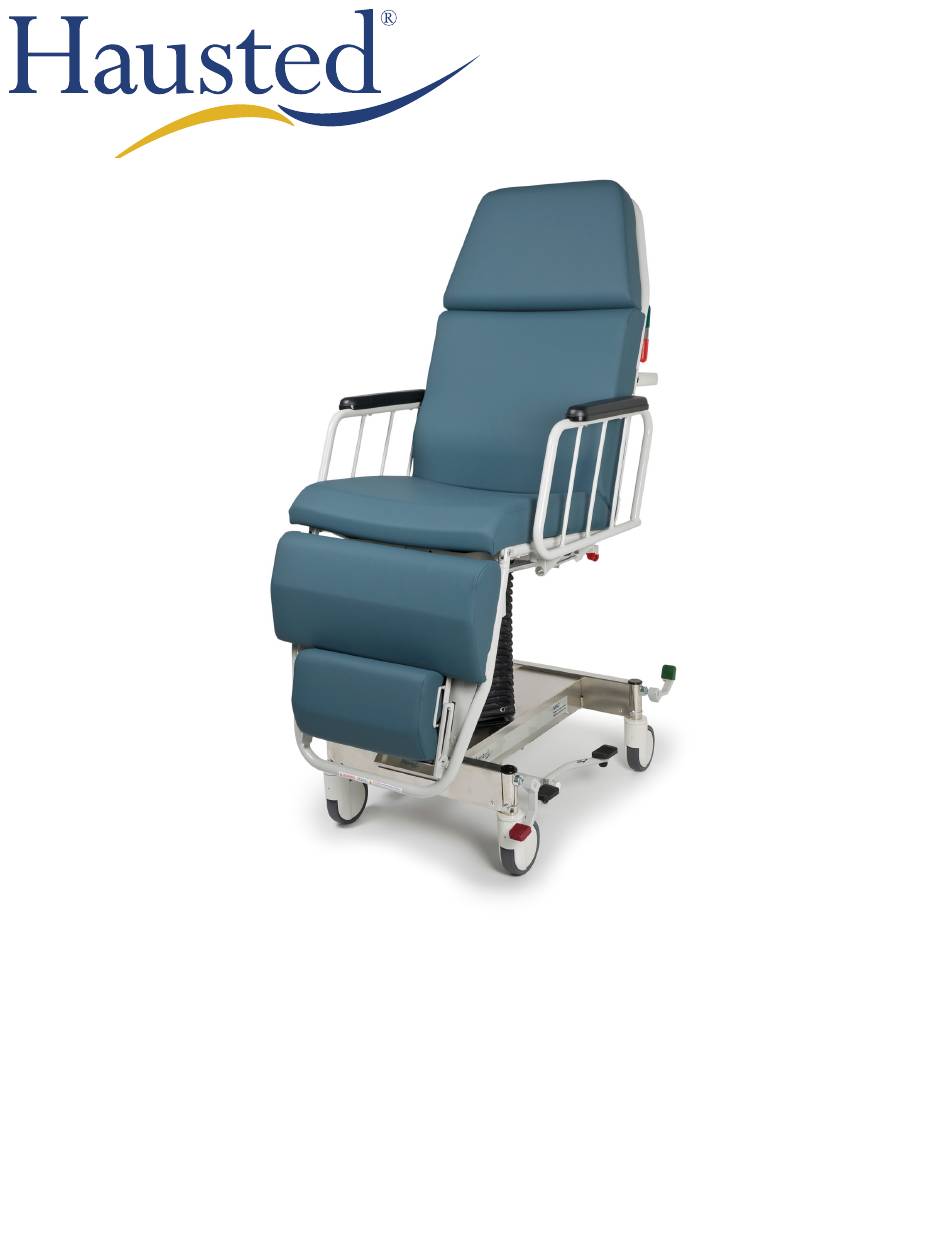

- Page 1 MBC MAMMOGRAPHY / BIOPSY CHAIR OPERATING MANUAL READ THIS MANUAL BEFORE OPERATING YOUR MBC MAMMOGRAPHY / BIOPSY CHAIR. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT WWW.HAUSTED.COM. MBC-IN-INS-LAB-REVC16...
-
Page 2: Table Of Contents
STORAGE ..................................10 PREVENTIVE MAINTENANCE FOR THE USER ..........................11 OPTIONAL ACCESSORIES ................................12 GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED BRAND PRODUCT LINE OUTSIDE THE U.S....13 DISPOSAL AND KEY TO SYMBOLS ............................... 14 DISPOSAL ......................................14 KEY TO SYMBOLS ................................... 14 INDEX ........................................ -
Page 3: Introduction - A Word From Gf Health Products, Inc
This manual contains important information on proper use and maintenance of the Hausted MBC Mammography / Biopsy Chair. All personnel involved in the use and maintenance of this equipment must carefully review and comply with the warnings, cautions and instructions contained in this manual. -
Page 4: List Of Warnings And Cautions
LIST OF WARNINGS AND CAUTIONS IMPORTANT: Before using the Hausted MBC Mammography / Biopsy Chair, please read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to the MBC Mammography / Biopsy Chair. -
Page 5: Important - Report Any Shipping Damage Immediately
IMPORTANT: Follow each step in the order shown in these instructions. UNPACKING INSTRUCTIONS Your Hausted equipment has been carefully packed at our manufacturing plant to ensure safe shipment to your medical facility. There are several procedures you must follow to put your new equipment in service. -
Page 6: Operating Instructions
A and B above. At no time should the patient be permitted to enter or exit from the ends of the MBC as shown on diagrams 1, 2 and 3, except in a full chair position. -
Page 7: Mbc Specifications
RECLINE to raise the backrest slightly, then use TRENDELENBURG. Depress for STEERING LOCK. Pump to elevate. Depress and hold to lower unit. Depress for BRAKE. FIGURE 3-2 MBC SPECIFICATIONS Height adjustment Hydraulic Backrest adjustment Pneumatic (including 10° Trendelenburg) Caster braking system... -
Page 8: Braking And Steering Operation
FIGURE 3-4 3.1.4 Releasing the Steering Lock Release the steering lock by depressing the red pedal at patient left rear until the pedal is in a horizontal position (Figure 3-4). All four casters should then rotate and swivel freely. MBC-IN-INS-LAB-RevC16... -
Page 9: Height And Top Adjustment
FIGURE 3-6 3.2.4 Trendelenburg adjustment To adjust the unit into Trendelenburg position the unit must be in the CHAIR position. Grasp the TRENDELENBURG handle (B), adjust the unit into Trendelenburg, and release the handle (See Figure 3-7). FIGURE 3-7 MBC-IN-INS-LAB-RevC16... -
Page 10: Cpr / Surgical Support Leg Accessory Number Hapc02500
CPR / SURGICAL SUPPORT LEGS 1. Pull the hook and loop fastener away from the tubes. FIGURE 3-8 2. Adjust the MBC to the desired horizontal position. The legs will automatically hinge into position and WARNING: TIPPING HAZARD — lock. -
Page 11: Preventive Maintenance For The User
Info: For more detailed information, please contact GF Health Products, Inc. at 1-770-368-4700. Info: In addition to the User Preventive Maintenance, a more detailed Preventive Maintenance Program is also required to keep the equipment in good working order. This Preventive Maintenance Program is found on our website, at www.Hausted.com. MBC-IN-INS-LAB-RevC16... -
Page 12: Optional Accessories
The use of accessories, transducers, and cables other than those specified by the manufacturer may result in increased emissions or decreased immunity of the Hausted equipment. Info: To order accessories, or for more detailed information on accessories, please contact GF Health Products, Inc. -
Page 13: Gf Health Products, Inc. Limited Warranty For Hausted Brand Product Line Outside The U.s
For additional information on this Hausted product or this warranty, please contact a Graham-Field authorized Distributor. NOTES: 1) Additional terms and conditions may apply. -
Page 14: Disposal And Key To Symbols
Product Metal Scrap Cable Scrap Electronic Scrap Plastic Recycling or Combustion KEY TO SYMBOLS The following symbols are used on Hausted product labels. Protective Earth Manufacturer Earth Ground Keep Dry General Warning Sign Fragile, Handle with Care CE Mark... -
Page 15: Index
Limited warranty 13 Lubrication 11 Manufactured by: 3 NOTICE statement, significance 4 Operating instructions 6 Safety statements, significance of 4 Service information 3 Specifications 7 Steering lock, applying 8 Steering lock, releasing 8 Symbol key, Hausted product labels 14 MBC-IN-INS-LAB-RevC16... - Page 16 Information contained herein is subject to change. The most current and complete product information can be found on our website. © 2014, GF Health Products, Inc. All Rights Reserved. Hausted and Graham-Field are trademarks of GF Health Products, Inc. Manufactured by GF Health Products, Inc.
