ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE ENSAMBLAJE
INSTRUCTIONS D'ASSEMBLAGE

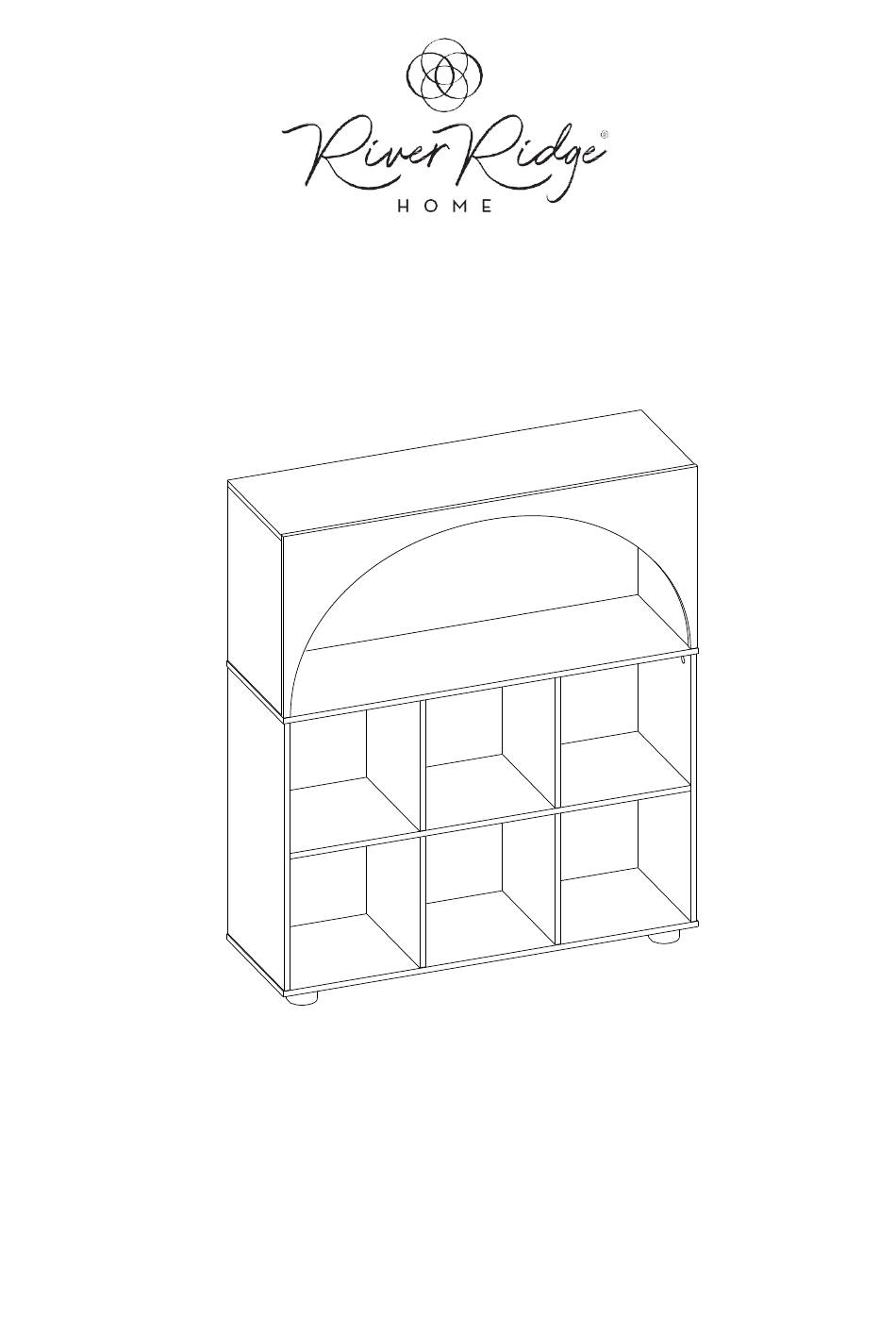

RiverRidge® 35in 6 Cubby Storage Cabinet
RiverRidge® Gabinete de almacenamiento de 35 pulgadas con 6 compartimentos
RiverRidge® Armoire de rangement 89 cm avec 6 compartiments
02-509/16-052 - White, Blanco, Blanc
RiverRidge® is a registered trademark of Sourcing Solutions, Inc., Hudson, WI 54016, USA
RiverRidge® es una marca comercial registrada de Sourcing Solutions, Inc., Hudson, WI 54016,
USA RiverRidge® est une marque déposée de Sourcing Solutions, Inc., Hudson, WI 54016, USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 02-509/16-052 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RiverRidge 02-509/16-052

  • Page 1 RiverRidge® is a registered trademark of Sourcing Solutions, Inc., Hudson, WI 54016, USA RiverRidge® es una marca comercial registrada de Sourcing Solutions, Inc., Hudson, WI 54016, USA RiverRidge® est une marque déposée de Sourcing Solutions, Inc., Hudson, WI 54016, USA...
  • Page 2 WARNING ADULT ASSEMBLY REQUIRED: This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury. This product is suitable for children 3 years and older.
  • Page 3 ADVERTENCIA REQUIERE QUE UN ADULTO REALICE EL ENSAMBLAJE: Este producto requiere que un adulto lleve a cabo el ensamblaje debido a las piezas pequeñas. Debe tener cuidado al desempacar y ensamblar este artículo para mantener las piezas pequeñas alejadas de los niños. Los niños deben mantenerse alejados del producto durante el ensamblaje debido al posible riesgo de lesiones.
  • Page 4 AVERTISSEMENT L’ASSEMBLAGE DOIT ÊTRE EFFECTUÉ PAR UN ADULTE : Ce produit doit être assemblé par un adulte à cause de la présence de petites pièces. Lorsque vous déballez et assemblez cet article, veillez à tenir les petites pièces hors de portée des enfants.
  • Page 5: Parts List

    PARTS LIST DESCRIPTION Top Board Upper Left Side Panel Upper Right Side Panel Front Panel Upper Back Board Middle Connection Board 4PCS Divider Board Shelf Lower Left Side Panel Lower Right Side Panel 2PCS Lower Back Board Bottom Board 5PCS...
  • Page 6 If you purchased your item in the United States, you can order replacement parts at no cost to you on www.riverridgehome.com. If purchased outside of the United States, please contact retailer where purchased.For any questions regarding your RiverRidge® product, please feel free to contact us at www.riverridgehome.com/pages/contact-us.contact us.
  • Page 7 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach 2 adjustable anchor brackets (F) to top board (1) by inserting 2 screws (D) through holes on adjustable anchor brackets (F), then tighten to top board (1). STEP 2 1.
  • Page 8 STEP 3 1. Screw 4 cam bolts (A) into cam bolt holes on front panel (4). STEP 4 1. Insert 6 wood dowels (C) into wood dowel holes on top board (1), upper left side panel (2) and upper right side panel (3). 2.
  • Page 9 STEP 5 1. Slide upper back board (5) into grooves on top board (1), upper left side panel (2) and upper right side panel (3). STEP 6 1. Screw 8 cam bolts (A) into cam bolt holes on middle connection board (6).
  • Page 10 STEP 7 1. Insert 4 wood dowels (C) into wood dowel holes on upper left side panel (2) and upper right side panel (3). 2. Attach middle connection board (6) to upper left side panel (2),upper right side panel (3) and upper back board (5) by inserting wood dowels (C) into wood dowel holes on middle connection board (6).
  • Page 11 STEP 9 1. Insert 4 wood dowels (C) into wood dowel holes on 2 divider boards (7). 2. Attach divider boards (7) to shelf (8) by inserting wood dowels (C) into wood dowel holes on shelf (8). 3. Insert 4 screws (E) through holes on shelf (8), then tighten to divider boards (7). STEP 10 1.
  • Page 12 STEP 11 1. Screw 4 cam bolts (A) into cam bolt holes on lower left side panel (9) and lower right side panel (10). STEP 12 1. Insert 4 wood dowels (C) into wood dowel holes on lower left side panel (9) and lower right side panel (10).
  • Page 13 STEP 13 1. Slide lower back board (11) into grooves on shelf (8), lower left side panel (9) and lower right side panel (10). STEP 14 1. Insert 8 wood dowels (C) into wood dowel holes on divider boards (7), lower left side panel (9) and lower right side panel (10).
  • Page 14 STEP 15 1. Attach 5 legs (13) to bottom board (12) by inserting 5 machine screws (G) through holes on legs (13), then tighten to bottom board (12). STEP 16 1. Slide another lower back board (11) into grooves on shelf (8), lower left side panel (9) and lower right side panel (10).
  • Page 15 STEP 17 1. Attach upper assembled unit to divider boards (7), lower left side panel (9), lower right side panel (10) and lower back board (11) by inserting cam bolts (A) into cam bolt holes on divider boards (7), lower left side panel (9) and lower right side panel (10). 2.
  • Page 16 STEP 18 OPTION #1 DRYWALL WALL ANCHOR WITH SCREW OPTION #2 DRYWALL WOOD STUD SCREW ONLY Option #1: Securing to Drywall 1. Position bookcase against wall in desired location. Using a pencil, make 2 small marks on wall through holes on adjustable anchor brackets (F). Move bookcase away from wall and screw 2 plastic wall anchors (H) into wall on pencil marks.
  • Page 17: Let's Get Social

    CARE Wipe clean with a water dampened cloth. Wipe dry with clean cloth. IMPORTANT: Keep assembly instructions for future reference. LET’S GET SOCIAL! Follow us and tag @riverridgehome in your photos and videos of your RiverRidge products! ®...
  • Page 18 Si compró el producto en los Estados Unidos, puede pedir las piezas de repuesto sin costo en www.riverridgehome.com. Si lo compró fuera de los Estados Unidos, comuníquese con el distribuidor donde lo adquirió. Si tiene preguntas con relación a este producto RiverRidge® no dude en comunicarse con nosotros a través de www.riverridgehome.com/pages/contact-us.
  • Page 19 PASO 1 1. Atornille 4 pernos de anclaje (A) en los orificios para pernos de anclaje en el tablero superior (1). 2. Fije 2 soportes de anclaje ajustables (M) al tablero superior (1) insertando 2 tornillos (J) en los orificios de los soportes de anclaje ajustables (M), luego, apriételos en el tablero superior (1).
  • Page 20 PASO 8 1. Atornille 4 pernos de anclaje (A) en los orificios de pernos de anclaje de la repisa (8). PASO 9 1. Inserte 4 pasadores de madera (C) en los orificios de pasadores de madera en 2 tableros divisores (7). 2.
  • Page 21 PASO 16 1. Deslice otro tablero trasero inferior (11) en las ranuras en la repisa (8), panel inferior izquierdo (9) y panel inferior derecho (10). PASO 17 1. Fije la unidad superior ensamblada en los tableros divisores (7), panel inferior izquierdo (9), panel inferior derecho (10) y tablero trasero inferior (11) insertando los pernos de anclaje (A) en los orificios de los pernos de anclaje en el tablero divisor (7), panel inferior izquierdo (9) y panel inferior derecho (10).
  • Page 22 INSTRUCCIONES DE CUIDADO: Limpiar con un paño humedecido en agua. Secar con un paño limpio. IMPORTANTE: Guarde las instrucciones de ensamblaje para futuras referencias. ¡SOCIALICEMOS! ¡Síganos y etiquete a @riverridgehome en las fotos y videos de sus productos RiverRidge®!
  • Page 23: Liste De Pièces

    Si vous avez acheté votre article aux États-Unis, vous pouvez commander des pièces de rechange sans frais pour vous sur www.riverridgehome.com. Si l’achat est effectué en dehors des États-Unis, veuillez contacter le détaillant où vous avez acheté. Pour toute question concernant votre contrat RiverRidge® n’hésitez pas à nous contacter à l’adresse www.riverridgehome.com/pages/contact-us.
  • Page 24 ÉTAPE 1 1. Visser 4 boulons à came (A) dans les trous prévus à cet effet sur la plaque supérieure (1). 2. Fixer 2 supports d’ancrage réglables (F) sur la plaque supérieure (1) en insérant 2 vis (D) dans les trous des supports d’ancrage réglables (F), puis les visser dans la plaque supérieure (1).
  • Page 25 ÉTAPE 8 1. Visser 4 boulons à came (A) dans les trous de boulon à came de l’étagère (8). ÉTAPE 9 1. Insérer 4 goujons en bois (C) dans les trous des goujons en bois sur les 2 plaques de division (7).
  • Page 26 ÉTAPE 16 1. Glisser une autre plaque arrière inférieure (11) dans les rainures de l’étagère (8), du panneau latéral inférieur gauche (9) et du panneau latéral inférieur droit (10). ÉTAPE 17 1. Fixer l’unité supérieure assemblée aux plaques de division (7), au panneau latéral inférieur gauche (9), au panneau latéral inférieur droit (10) et à...
  • Page 27: Instructions D'entretien

    INSTRUCTIONS D’ENTRETIEN: Nettoyez avec un chiffon humide. Séchez avec un chiffon propre. IMPORTANT: Conservez les instructions d’assemblage pour toute référence ultérieure SOCIALISONS-NOUS! Suivez-nous et marquez @riverridgehome dans vos photos et vidéos de vos produits RiverRidge®!
