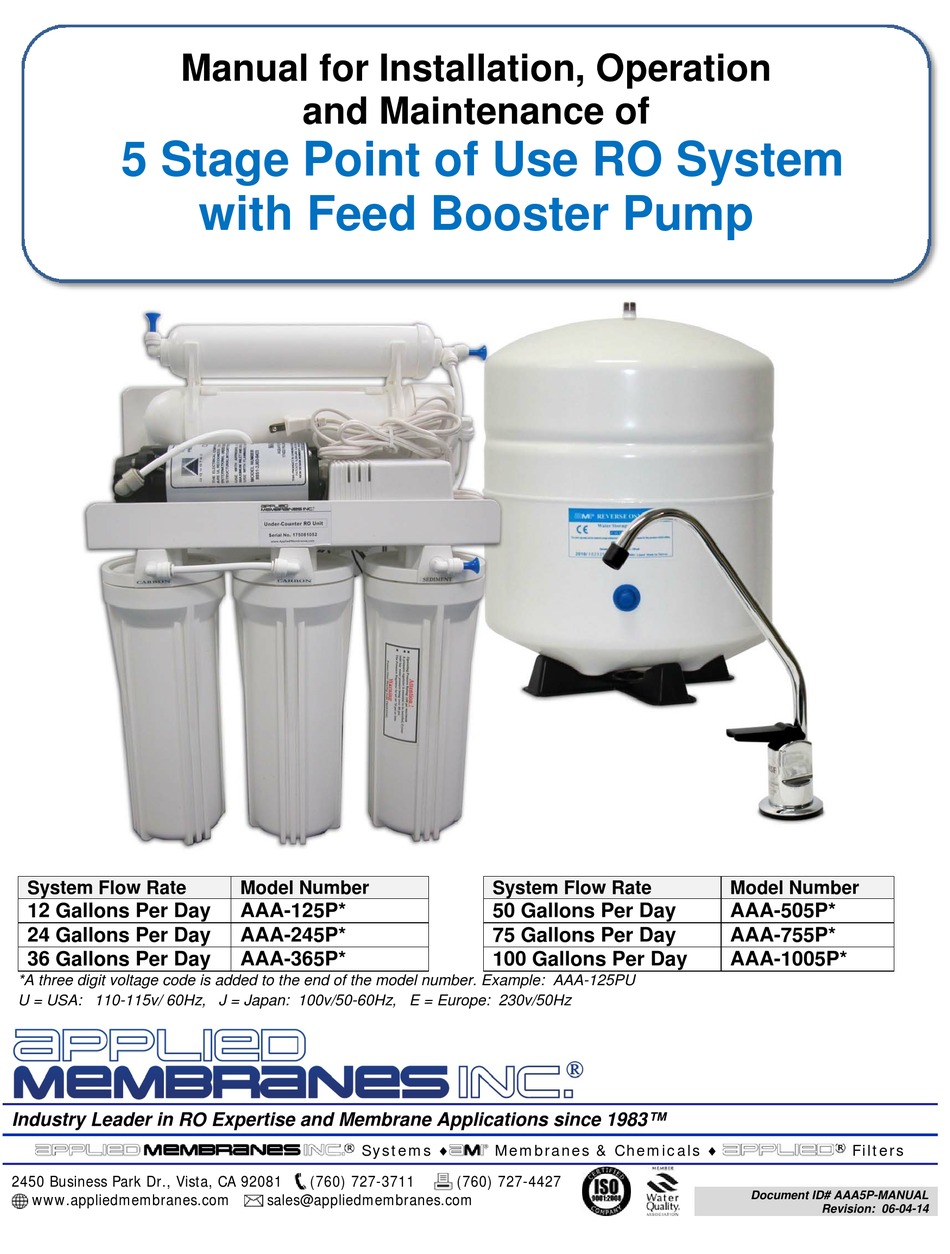

Manual for Installation, Operation
5 Stage Point of Use RO System
System Flow Rate
12 Gallons Per Day
24 Gallons Per Day
36 Gallons Per Day
*A three digit voltage code is added to the end of the model number. Example: AAA-125PU
U = USA: 110-115v/ 60Hz, J = Japan: 100v/50-60Hz, E = Europe: 230v/50Hz
Industry Leader in RO Expertise and Membrane Applications since 1983™
2450 Business Park Dr., Vista, CA 92081
www.appliedmembranes.com
and Maintenance of
with Feed Booster Pump
Model Number
AAA-125P*
AAA-245P*
AAA-365P*
Systems
(760) 727-3711
sales@appliedmembranes.com
System Flow Rate
50 Gallons Per Day
75 Gallons Per Day
100 Gallons Per Day
Membranes & Chemicals
(760) 727-4427
Model Number
AAA-505P*
AAA-755P*
AAA-1005P*
Filters
Document ID# AAA5P-MANUAL
Revision: 06-04-14
Advertisement
Table of Contents
Related Manuals for Applied Membranes AAA-125P
Summary of Contents for Applied Membranes AAA-125P
- Page 1 5 Stage Point of Use RO System with Feed Booster Pump System Flow Rate Model Number System Flow Rate Model Number 12 Gallons Per Day AAA-125P* 50 Gallons Per Day AAA-505P* 24 Gallons Per Day AAA-245P* 75 Gallons Per Day AAA-755P*...
-
Page 2: Conditions For Operation
Introduction Please read this entire service guide prior to beginning installation. The Applied Membranes reverse osmosis drinking water system has been designed for quick and simple installation and maintenance. By carefully reading this instruction manual and following the operational guidelines you will ensure a successful installation and reliable operation. Routine maintenance is essential to the longevity and performance of the system. - Page 3 Black Product Water – Tank From the tee on the post-carbon inlet to the tank inlet/outlet. Orange Product Water – Final From the post-carbon outlet to the faucet. Yellow Copyright © 2014 Applied Membranes, Inc. Page 3 All Rights Reserved.
-
Page 4: Preparing For Installation
Determine the location for the storage tank. A maximum distance from tank to faucet of 15 feet is possible (additional tubing may be needed). The system will produce a faster flow at the faucet with the shortest tubing run from tank to faucet. Copyright © 2014 Applied Membranes, Inc. Page 4 All Rights Reserved. -
Page 5: System Mounting
Push in the collet against the face of the fitting. With the collet held in this position the tube can be removed. The fitting can then be re-used. Copyright © 2014 Applied Membranes, Inc. Page 5 All Rights Reserved. - Page 6 Installation and Service Manual – Under-the-Counter Point of Use 5 Stage Reverse Osmosis System with Booster Pump Copyright © 2014 Applied Membranes, Inc. Page 6 All Rights Reserved.
-
Page 7: Starting Your Installation
Solid Copper Riser Tube: Same procedure as flex tubing except you must cut a piece of the riser tube about ¾” to 1” so the slip joint adapter can fit between faucet and riser tube Copyright © 2014 Applied Membranes, Inc. Page 7 All Rights Reserved. -
Page 8: Drain Saddle Installation
Starting with the ⅛” drill bit, drill a ⅛” hole in the drain pipe. Use the ¼” drill bit to enlarge the hole. Clean the debris from the pipe and the hole before continuing. Copyright © 2014 Applied Membranes, Inc. Page 8... - Page 9 Connect the other end of the tubing to the ‘out’ side of the flow restrictor on the RO System. NOTE: Some states require the use of an air gap faucet. Check your local plumbing code to assure compliance. Copyright © 2014 Applied Membranes, Inc. Page 9 All Rights Reserved.
-
Page 10: Faucet Installation
Tank Valve in CLOSED Position Faucet Installation For this, step, you will need: o Wrench Variable speed drill w/ ⅛” and ” drill bits Yellow Tubing Faucet Assembly Kit Copyright © 2014 Applied Membranes, Inc. Page 10 All Rights Reserved. - Page 11 Note: Non-Air Gap Faucet – Comes with the system. (Air Gap may be purchased separately - part number H- T5022.) Some states require the use of an air gap faucet. Check your local plumbing code to assure compliance. Copyright © 2014 Applied Membranes, Inc. Page 11 All Rights Reserved.
-
Page 12: Turning The System On For The First Time
Note: Air bubbles may be present in the product water after initial system startup, causing a milky color in the water. This is normal and safe to drink. The air bubbles will disappear within a few days of regular use. Copyright © 2014 Applied Membranes, Inc. Page 12... -
Page 13: System Maintenance
Drain the tank completely, close the faucet to allow tank to fill again, and then drain again. Replace filters and membrane as indicated in the replacement instructions. The post filter should be changed after sanitizing the system. Copyright © 2014 Applied Membranes, Inc. Page 13... -
Page 14: Troubleshooting Chart
Milky colored water Air in the system Air in the system is normal after startup of the RO. Water should lose the milky look within a few days of normal usage. Copyright © 2014 Applied Membranes, Inc. Page 14 All Rights Reserved. -
Page 15: Replacement Parts
Housing to Inline ¼”Tx ⅛”M Elbow Fitting Filter For Membrane Housing (Membrane Housing) H-B2044W H-J2025PW Filter Bracket Membrane PI480822S Housing Clip ¼”T x ¼”M Elbow Fitting, Quick Connect (Filter In/Out) Copyright © 2014 Applied Membranes, Inc. Page 15 All Rights Reserved. - Page 16 Is the system receiving adequate feed water? The pump’s inlet chamber must be flooded to prevent performance robbing air ingestion into the compression chambers. c) Debris entering the pump may restrict the pumping operation. Consult the factory for valve cleaning instructions. Copyright © 2014 Applied Membranes, Inc. Page 16 All Rights Reserved.
- Page 17 Yes. The Booster Pump increases the feed water pressure to the membrane, while the Permeate Pump is located after the membrane and eliminates the performance robbing back pressure created by a full, or filling, air charged storage tank Copyright © 2014 Applied Membranes, Inc. Page 17 All Rights Reserved.
- Page 18 Transformers are optional and must be ordered in addition to the pump. Fittings: Built-in 1/4" John Guest half cartridge fittings eliminate need for external fittings (unless elbows are required) Schematic of 6800 Series Pump Copyright © 2014 Applied Membranes, Inc. Page 18 All Rights Reserved.
- Page 19 Optional fittings, available at no additional cost, include: 3/8” Jaco straight fittings, 3/8” Jaco elbow fittings, or 8mm stem adapters for metric tubing. Note that the location and positioning of these pumps may affect their performance. Copyright © 2014 Applied Membranes, Inc. Page 19...
-
