Summit 425 NG
Summit 450 NG
WARNING: F o l l ow all leak ch e ck pro c e d u r e s
carefully in this manual prior to barbecue
operation. Do this even if barbecue was
dealer assembled.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
FOR YOUR SAFETY: Do not store or use
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.

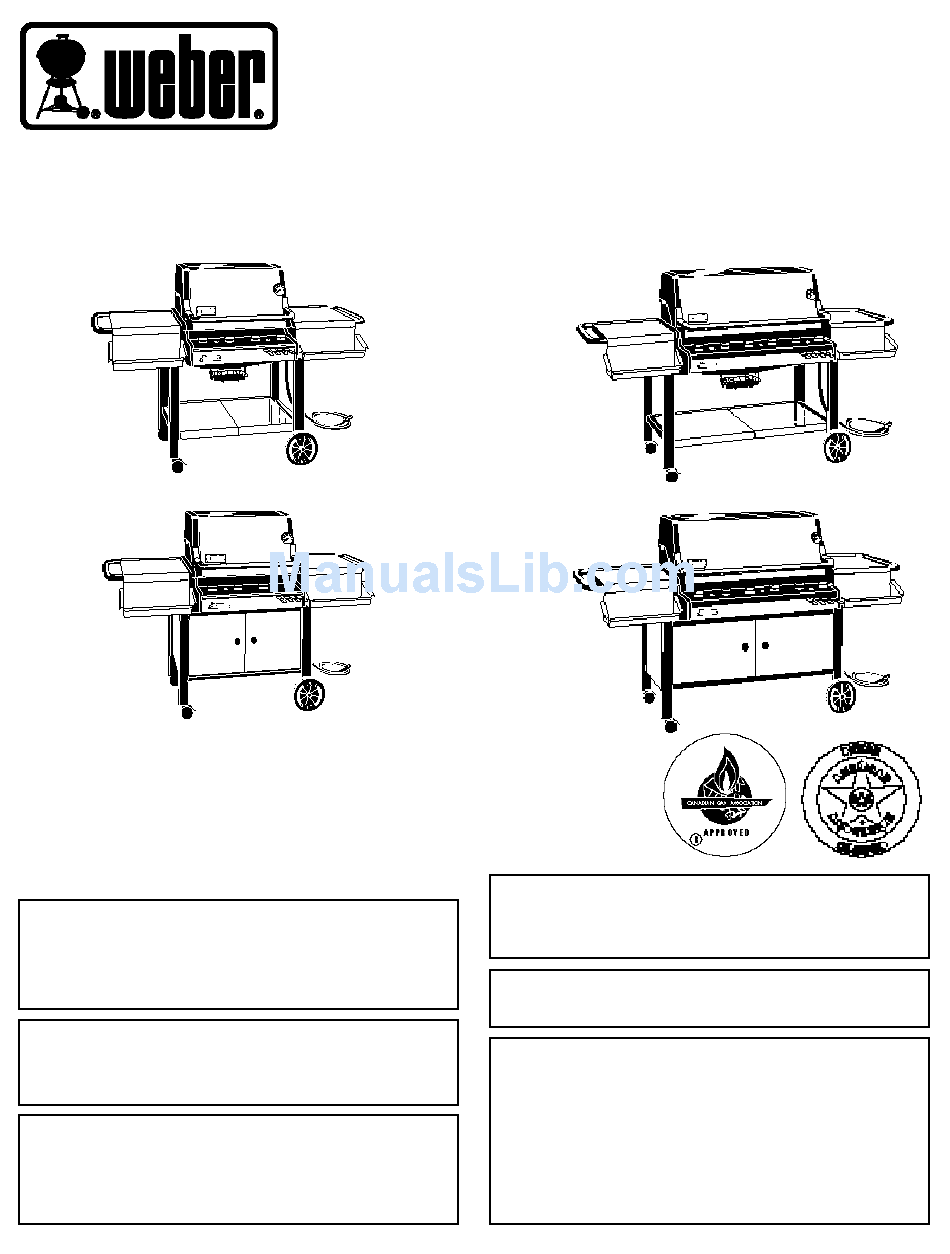

S U M M I T
S U M M I T
Natural Gas Barbecues
Summit 625 NG
Summit 650 NG
WARNING: Do not try to light this
appliance without reading "Lighting"
instructions section of this manual.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
425 & 625
™
450 & 650
™
Step-By-Step Guide
gas supplier or your fire department.
97465
12/96
