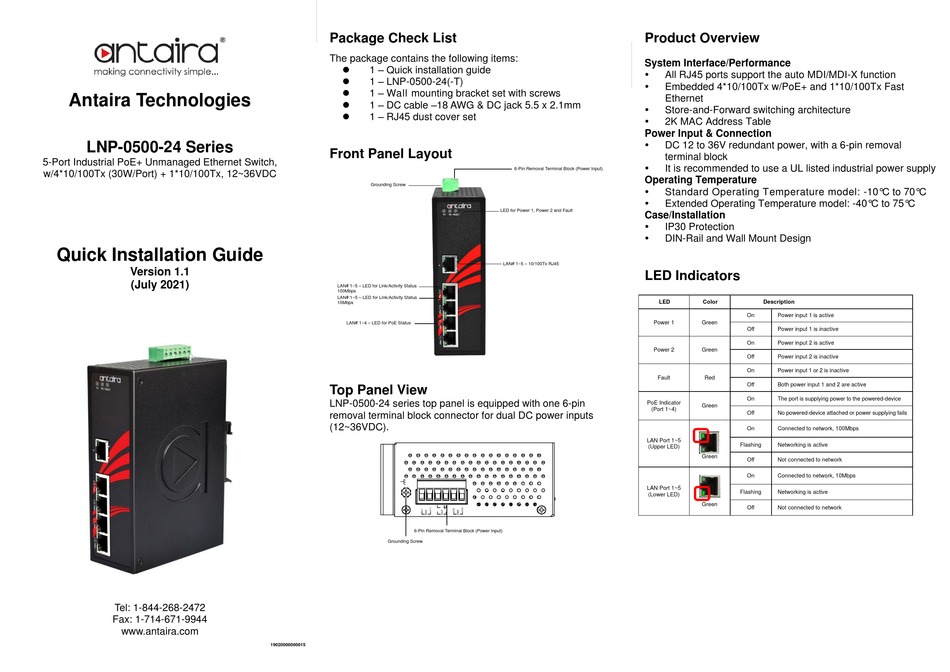

Antaira Technologies
LNP-0500-24 Series
5-Port Industrial PoE+ Unmanaged Ethernet Switch,
w/4*10/100Tx (30W/Port) + 1*10/100Tx, 12~36VDC
Quick Installation Guide
Version 1.1
(July 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫
1 – Quick installation guide
⚫
1 – LNP-0500-24(-T)
⚫
1 – Wall mounting bracket set with screws
⚫
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
1 – RJ45 dust cover set
⚫
Front Panel Layout
Grounding Screw
LAN# 1~5 – LED for Link/Activity Status
100Mbps
LAN# 1~5 – LED for Link/Activity Status
10Mbps
LAN# 1~4 – LED for PoE Status
Top Panel View
LNP-0500-24 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~36VDC).
6-Pin Removal Terminal Block (Power Input)
Grounding Screw
19020000000015
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function
Embedded 4*10/100Tx w/PoE+ and 1*10/100Tx Fast
Ethernet
Store-and-Forward switching architecture
2K MAC Address Table
Power Input & Connection
DC 12 to 36V redundant power, with a 6-pin removal
terminal block
It is recommended to use a UL listed industrial power supply
6-Pin Removal Terminal Block (Power Input)
Operating Temperature
Standard Operating Temperature model: -10°C to 70°C
Extended Operating Temperature model: -40°C to 75°C
LED for Power 1, Power 2 and Fault
Case/Installation
IP30 Protection
DIN-Rail and Wall Mount Design
LAN# 1~5 – 10/100Tx RJ45
LED Indicators
LED
Power 1
Power 2
Fault
PoE Indicator
(Port 1~4)
LAN Port 1~5
(Upper LED)
LAN Port 1~5
(Lower LED)
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
The port is supplying power to the powered-device
Green
Off
No powered-device attached or power supplying fails
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
