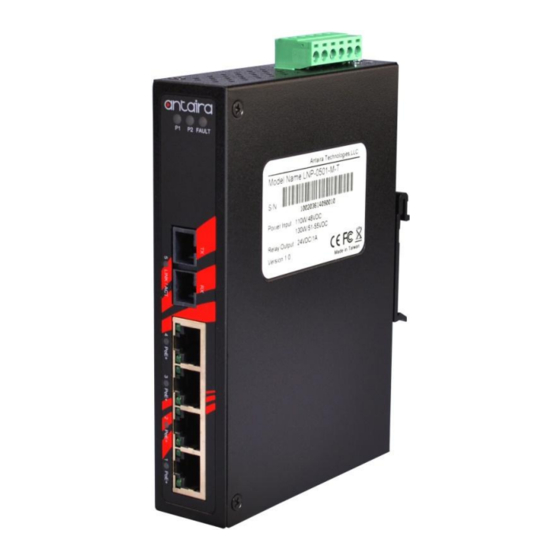

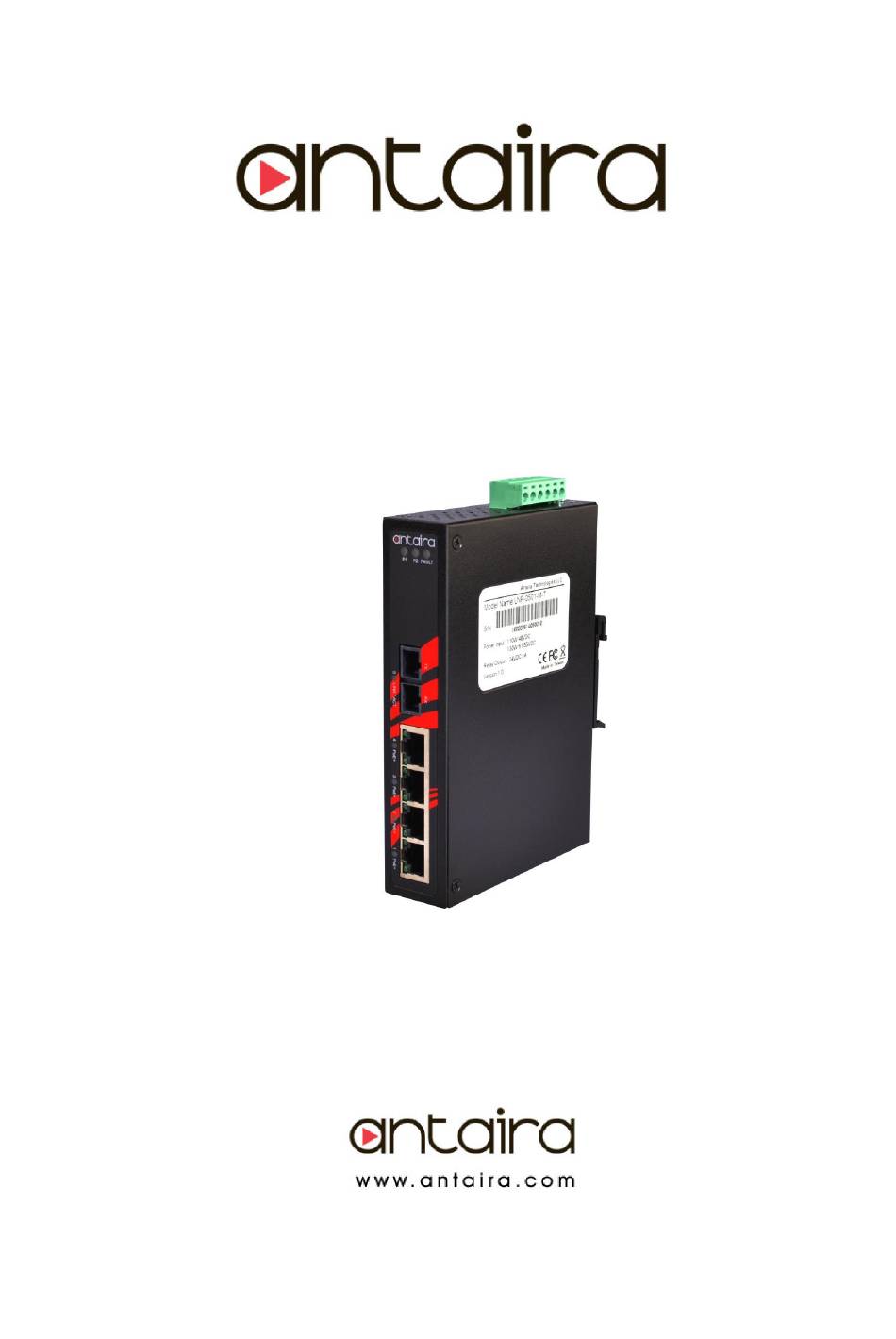

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 LNP-0501 Series 5-Port Industrial PoE+ Unmanaged Ethernet Switches with 4*10/100Tx (30W/Port) + 1*10/100Tx User Manual Version 2.2...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 This manual supports the following models: LNP-0501-S3 LNP-0501-M LNP-0501-S3-T LNP-0501-M-T LNP-0501-ST-S3 LNP-0501-ST-M LNP-0501-ST-S3-T LNP-0501-ST-M-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 Table of Contents 1. Overview ..............1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution………………………………….2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
This product series provides high EFT and ESD protection to prevent any unregulated voltage. The LNP-0501 series is IP30 rated and DIN-rail mountable. There are two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 1.2 Package Contents 1 - LNP-0501 (T): 5-port industrial PoE+ unmanaged Ethernet switch with 4*10/100Tx (30W/port), 1*100Fx Fiber SC/ST type connector (Multi-mode 2Km, or Single-mode 30Km) 1 - User manual ... -
Page 7: Hardware Description
LNP-0501 Series User Manual V2.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0501 series: 5-port industrial PoE+ unmanaged Ethernet switch with 4*10/100Tx (30W/port), 1*100Fx Fiber SC/ST type connector (Multi-mode 2Km, or Single-mode 30Km). -
Page 8: Front Panel
Figure 2.2 - Front Panel of the LNP-0501 Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-0501 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48-55 VDC). -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. - Page 10 Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 RJ-45 Pin Assignments (Table 2.2) Pin Number Assignment Table 2.2 RJ45 Pin Assignments Note: The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
-
Page 11: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 Fiber Port The fiber port of SC type connector can work in multi-mode or single-mode. When connecting the fiber port to another one, please connect accordingly by following the figure below. The wrong connection will cause the port to not work normally. -
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 2.7 Wiring the Power Inputs Please follow the below steps to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.7. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.9. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normal open circuit. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch. - Page 15 Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
-
Page 16: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 17: Hardware Installation
LNP-0501 Series User Manual V2.2 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNP-0501 (T): 5-port industrial PoE+ unmanaged Ethernet switch with 4*10/100Tx (30W/port), 1*100Fx Fiber SC/ST type connector (Multi-mode 2Km, or Single-mode 30Km). -
Page 18: Network Application
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Industrial PoE Ethernet Switch Application Reference... -
Page 19: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 20: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-0501 Series User Manual V2.2 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies LNP-0501 series: 5-port industrial PoE+ unmanaged Ethernet switch with 4*10/100Tx (30W/port), 1*100Fx Fiber SC/ST type connector (Multi-mode 2Km, or Single-mode 30Km) IEEE 802.3 10Base-T Ethernet... - Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
