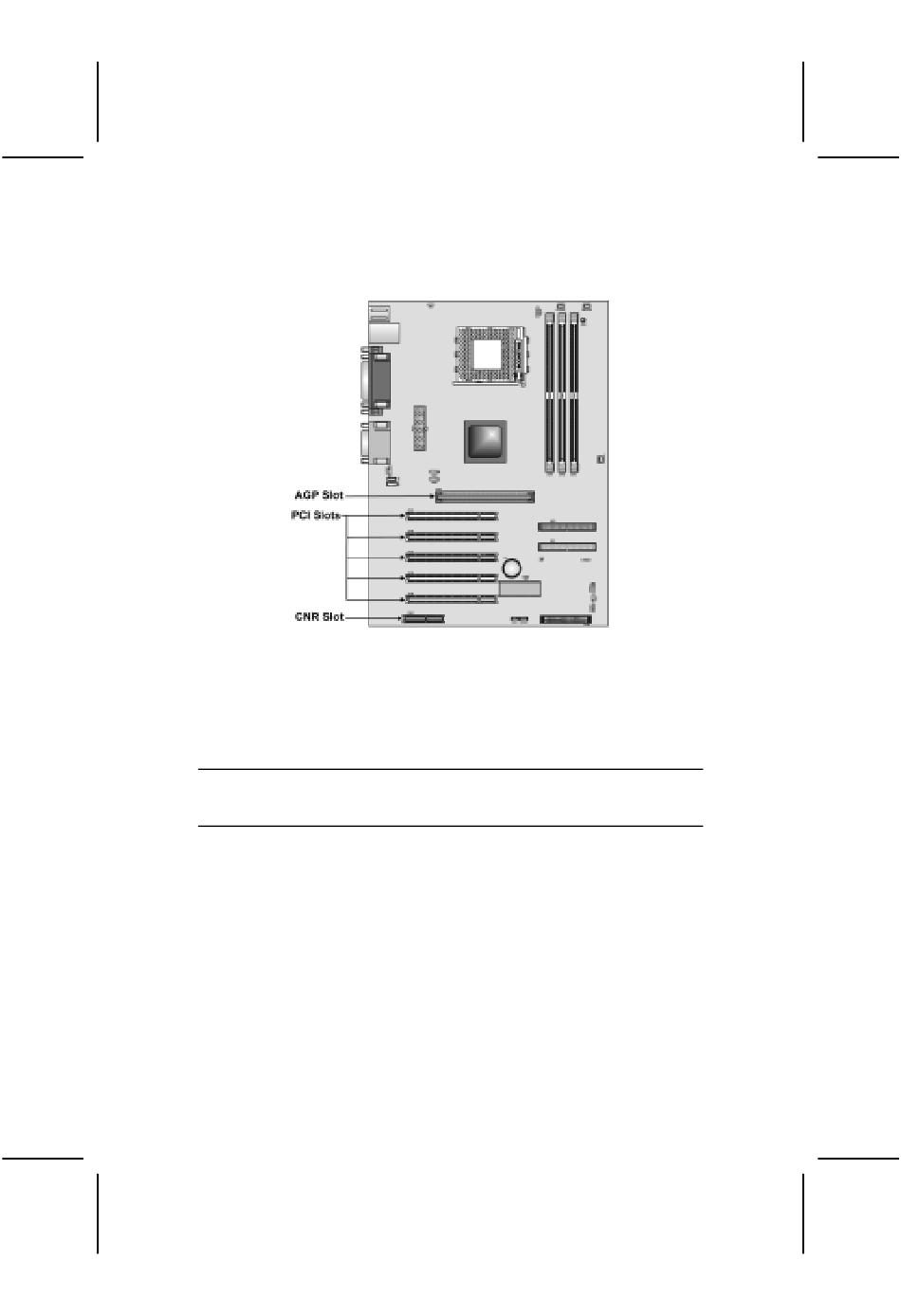

Installing Add-on Cards
This mainboard has five 32-bit PCI (Peripheral Components Interconnect)
expansion slots, one 4xAGP slot, and one Communications and Networking
Riser (CNR) slot.
PCI Slots
PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
4xAGP
The 4xAGP slot is used to install a graphics adapter that supports the
Slot
4xAGP specification and has a 4xAGP edge connector.
CNR Slot
This slot is used to insert CNR cards with Modem and Audio func-
tionality.
Note: Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually con-
figure the card before installation.
19
