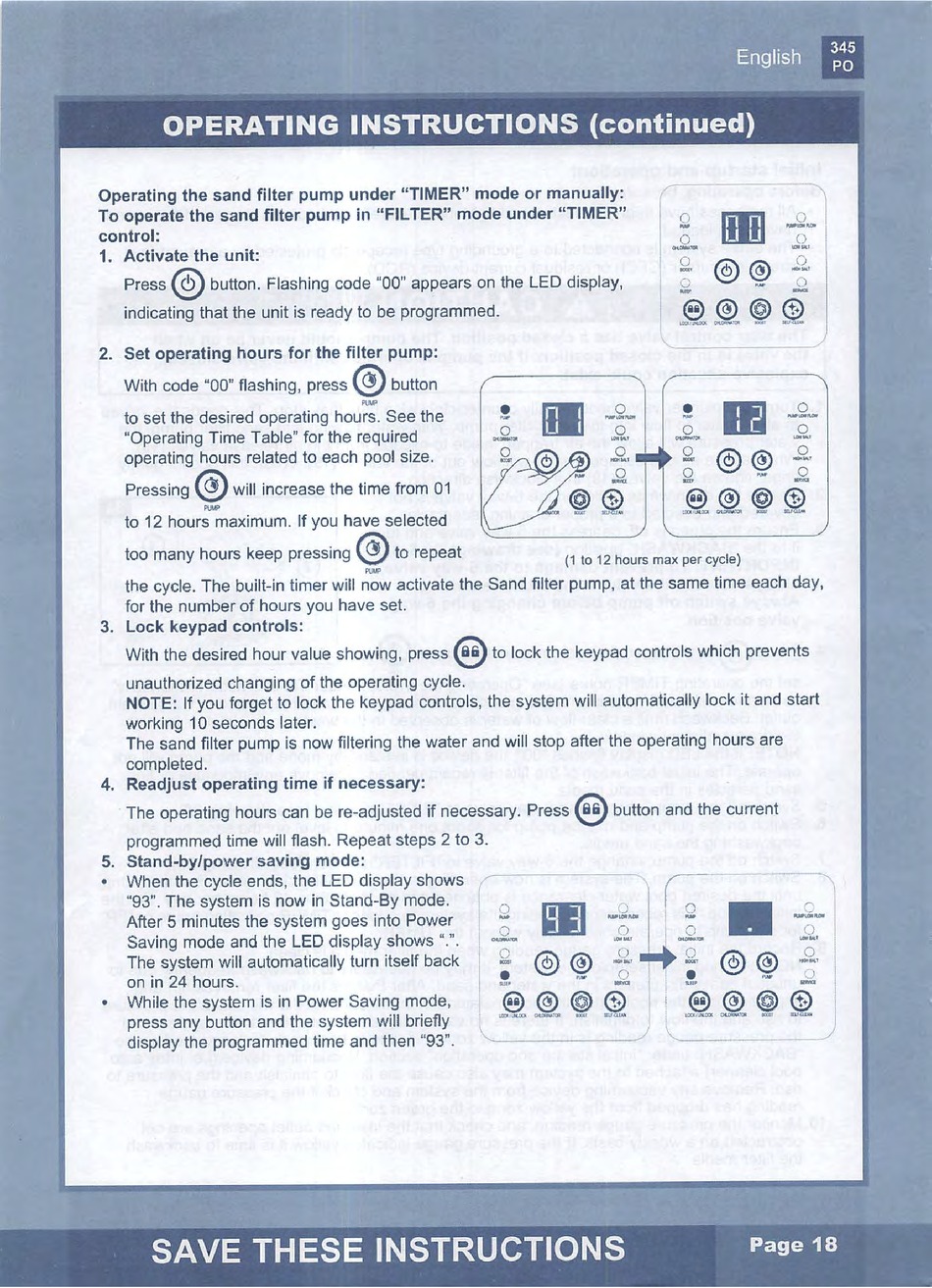

Operating
the
sand
filter
pump
under "TIMER"
mode or manually:
I
,,.,-
-
\
To operate the sand filter pump in
"FILTER"
mode under
"TIMER"
control:
1.
Activate the unit:
r
-
o2?c.
(1
-·
lilil
0
_..,_
2
.
@(g)
-~
,
Press@button. Flashing
code
"00"
appears
on
the
LED
display,
indicating
that
the
unit
is ready to be programmed.
®@
..,
__
@
~
2.
Set operating hours for
the filter pump:
With code
"00"
flashing, press@
button
-
to set the desired operating
hours.
See the
"Operating Time
Table"
for
the
required
operating
hours related
to each
pool
size.
Pressing
@)
will
increase
the time from
01
-
to
12 hours maximum. If
you
have
selected
- - -
1111
too
many hours keep
pressing@ to
repeat
(
1
10 12
hours
max per
cycle)
-
the
cycle.
The built-in timer
will now activate the Sand
filter
pump, at
the
same
time
each day,
for the
number
of hours you have set.
3. Lock keypad
controls:
With the
desired hour
value showing, press ®
to
lock the
keypad
controls which prevents
unauthorized
changing
of
the operating cycle.
NOTE: If
you
forget to lock
the keypad controls,
the
system will automatically
lock
it and start
working 10 seconds later.
The
sand
filter pump is
now
filtering
the water
and
will stop after the operating
hours
are
completed.
4.
Readjust operating
time
if
necessary:
The
operating
hours
can be
re-adjusted
if
necessary.
Press®
button
and the current
programmed time will flash. Repeat steps 2 to 3.
5. Stand-by/power saving
mode:
•
When the cycle ends,
the LED
display shows
~
"93".
The
system
is now in
Stand-By mode.
After 5
minutes the
system goes
into Power
Saving
mode
and
the LED
display shows".".
The
system will automatically
turn itself back
on
in
24
hours.
•
While the system
is in
Power Saving mode,
press any button and
the
system will
briefly
display the programmed time
and
then
"93".
al
(
0
l
-
.2..
■
C
..........
J
...
..
,
I
\
