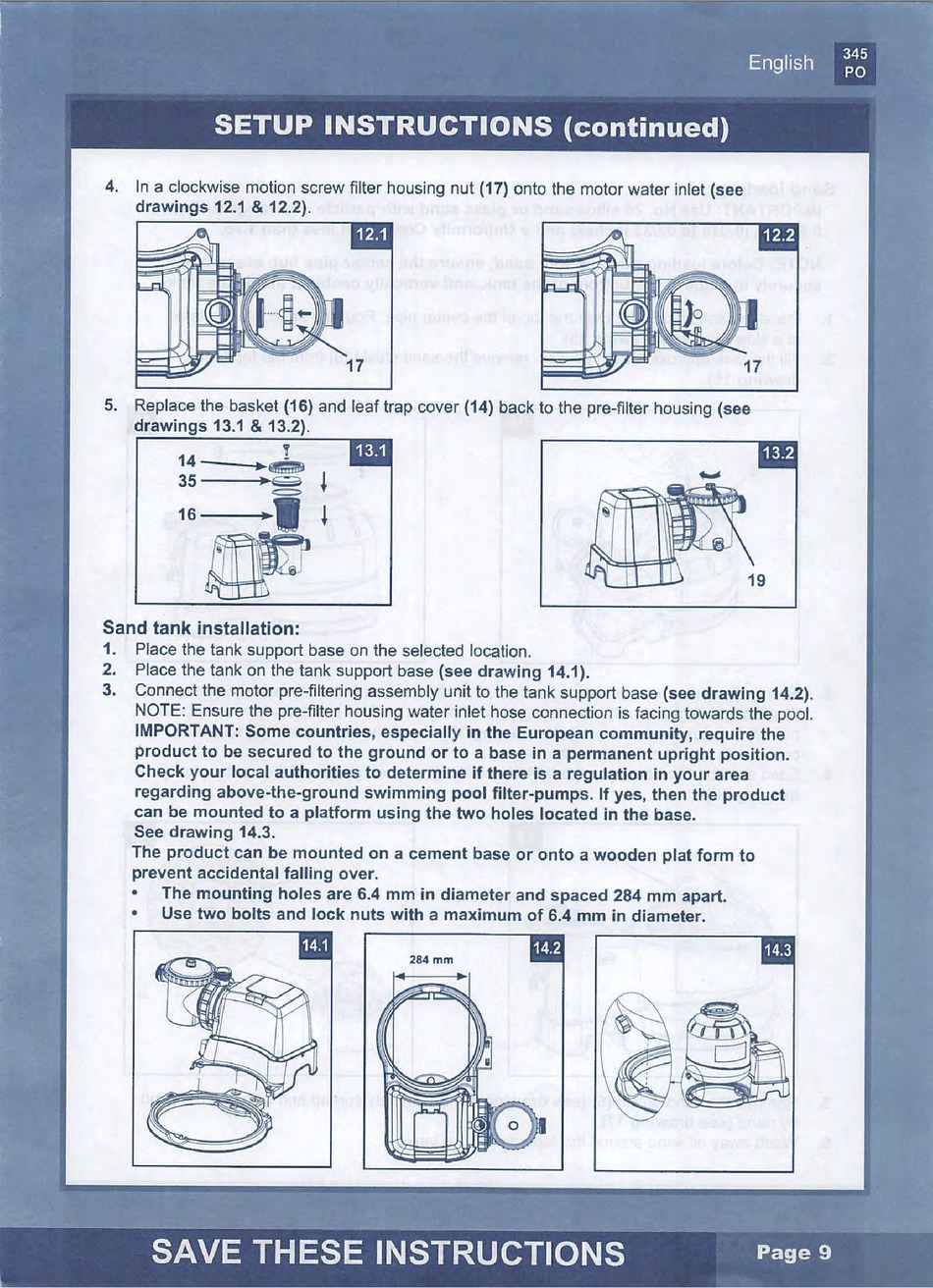

4.
In
a clockwise motion
screw
filter housing nut (17)
onto
the motor water
inlet
(see
drawings 12.1 & 12.2).
17
5. Replace
the
basket (16) and leaf trap
cover
(14) back to the pre-filter housing (see
drawings 13.1 & 13.2).
r
14
---►►CJ!9
35
~
!
16--1
!
•
Sand tank installation:
1.
Place
the
tank
support
base on the selected location.
2.
Place
the
tank on the tank
support
base (see drawing 14.1).
3.
Connect the motor pre-filtering
assembly
unit to the
tank support
base
(see
drawing 14.2).
NOTE: Ensure the pre-filter housing
water inlet
hose connection is facing
towards
the pool.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your
local
authorities to determine
if
there is a regulation in your area
regarding above-the-ground swimming pool filter-pumps. If yes, then the product
can be mounted to a platform using the two holes located
in
the base.
See drawing 14.3.
The product can be mounted on a cement base or onto a wooden plat form to
prevent accidental falling over.
•
The mounting
holes
are 6.4 mm in diameter and spaced 284 mm apart.
•
Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
284mm
SAVE THESE INSTRUCTIONS
