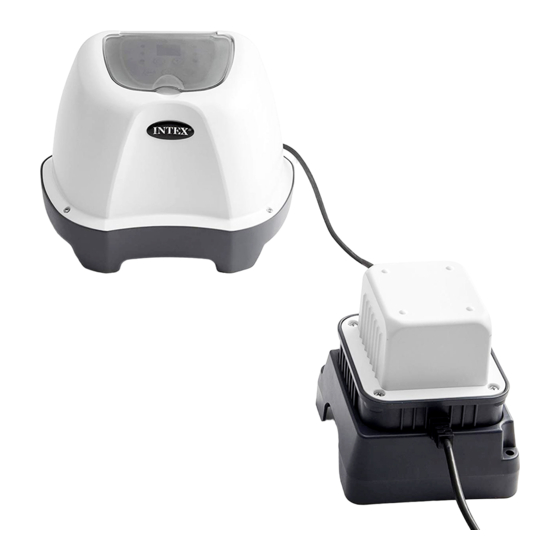

Krystal Clear™ Saltwater System
Certified Model Number CS3220G
220 – 240 V~
Don't forget to try these other fine Intex products: Pools,
Pool Accessories, Inflatable Pools and In-Home Toys,
Airbeds and Boats available at fine retailers or visit our
website.
Due to a policy of continuous product improvement, Intex
reserves the right to change specifications and appearance,
which may result in updates to the instruction manual without
notice.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays
sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet
in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &
Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans
l'Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,
Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited, 21
Holborn Viaduct, London EC1A 2DY, UK.
www.intexcorp.com
(133GS) SALTWATER SYSTEM ENGLISH 7.5" X 10.3" PANTONE 295U 05/26/2023
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. keep for future
reference.
For illustrative purposes only.
©2023 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
133
English
GSA
133-GSA-R0-2405

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS3220G and is the answer not in the manual?

Questions and answers

Related Manuals for Intex CS3220G

Summary of Contents for Intex CS3220G

  • Page 1 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,...

  • Page 2: Table Of Contents

    Product Specifi cations..............4 Setup Instructions................. 5 Salt & Pool Water Volumes............6 Intex Pools Salt Table..............7 Intex Pools Cyanuric Acid Table........... 8 Intex Pools Operating Time Table..........9 Non-Intex Pools Salt Table............10 Non-Intex Pools Cyanuric Acid Table.......... 10 Non-Intex Pools Operating Time Table........

  • Page 3: Warnings

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • Always supervise children and those with disabilities. •...

  • Page 4: Parts References

    ELECTROLYTIC CELL NUT 11582 TEST STRIPS 19635 When ordering parts, be sure to quote the model number and part numbers. PRODUCT SPECIFICATIONS CS3220G Certifi led Model Number: Wattage: 30 W Ideal Salt Level: 3000 ppm (parts per million) Maximum Chlorine Output/hour:...

  • Page 5: Setup Instructions

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English SETUP INSTRUCTIONS IMPORTANT • The Saltwater System requires a separate fi lter pump [300~1000 gph (1136~3785 lph)] to drive the water and function properly. • The Saltwater System must be installed as the last piece of pool equipment in the water return line to the pool as displayed below.

  • Page 6: Salt & Pool Water Volumes

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English SALT & POOL WATER VOLUMES • Which kind of salt to use: A specific type of salt must be used in swimming pools to protect the equipment. When buying salt, check that the salt conforms with the EN16401 standard for Chemicals for use in swimming pools.

  • Page 7: Intex Pools Salt Table

    Low Salt Detected Pool Size for Easy Set & Oval Pool) 3.0g/L (3000ppm) (CODE “91”) (Gals) (Liters) (Lbs) (Kgs) (Lbs) (Kgs) INTEX ABOVE GROUND POOLS (AGP’s) 244cmx61cm (8’x24”) 1942 244cmx76cm (8'x30") 2419 305cmx61cm (10’x24”) 3077 305cmx76cm (10'x30") 1018 3853 EASY SET ®...

  • Page 8: Intex Pools Cyanuric Acid Table

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English INTEX POOLS CYANURIC ACID TABLE Cyanuric acid is a chemical that reduces the loss of chlorine in water due to ultraviolet rays. To maintain the pool water clear and clean, and to maximize the performance of the device, add cyanuric acid to the pool. We recommend that the cyanuric acid level be maintained at approximately 0.35% of the salt, i.e.

  • Page 9: Intex Pools Operating Time Table

    The filter pump running time should be 1 hour longer than the required operating time of the Saltwater System. NOTE: If an Intex fi lter pump has a timer on the GFCI, the maximum run time is 10 hours. The timer will need to be manually reset in order to extend the operating time.

  • Page 10: Non-Intex Pools Salt Table

    13248 4000 15140 4500 17033 OPERATING TIME TABLE FOR COMMON NON - INTEX POOLS (WITH CYANURIC ACID) Operating Time (hours) at different ambient/air temperatures Recommend Filter Water Capacity pump Operating Time (hours) 10 - 19°C (50 - 66°F) 20 - 28 °C (68 - 82 °F) 29 - 36°C (84 - 97°F)

  • Page 11: Operating Instructions

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English OPERATION INSTRUCTIONS 1. Turn on the filter pump. 2. Start up the unit: Plug the power cord into the electrical outlet and test the RCD (circuit breaker). Press button. Flashing code “00” appears on the electronic control station’s LED, indicating that the unit is ready to be programmed.
  • Page 12 (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English OPERATION INSTRUCTIONS (continued) Set BOOST operating hours: 1. Press button to unlock the keypad. With LED flashing, press button to set the desired operating hours. Total of 4 settings: 36 hours, 48 hours, 60 hours and 00 (OFF).

  • Page 13: Led Code Chart

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English LED CODE CHART LED Reading Definitions Stand-By Mode (Start-up) Minimum Operating Hour (1 hour remaining) Operating Hours (2 hours remaining) Operating Hours (3 hours remaining) Operating Hours (4 hours remaining) Operating Hours (5 hours remaining) Operating Hours (6 hours remaining) Operating Hours (7 hours remaining)

  • Page 14: Stationary Mounting

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English SALTWATER SYSTEM STATIONARY MOUNTING Some countries, especially in the European community, require the product to be secured to the ground or to a base in a permanent upright position. Check with your local authorities to determine if there is a regulation in your area regarding above-the-ground swimming pool fi...

  • Page 15: Maintenance

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English MAINTENANCE IMPORTANT Unplug the power cord before cleaning your system. Also insert the black hat-like plugs in the strainer opening to prevent water spillage. After completing all maintenance tasks, you must plug the power cord back in and remove the plugs. Titanium Electrode Cleaning The titanium electrode has a self cleaning function incorporated into the electronic control’s programming.

  • Page 16: Long Term Storage

    English MAINTENANCE (continued) TEST STRIPS ( PACKED WITH THE PRODUCT ) INTEX ® The Test Strips can test the “Free Chlorine”, “pH”, “Calcium Hardness” and “Total Alkalinity” levels at the same time. We recommend that you test the water chemistry weekly, and maintain the chlorine concentration at 1.0-3.0 ppm.

  • Page 17: Pool Maintenance And Chemical Defi Nitions

    (133GS) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2023 English POOL MAINTENANCE & CHEMICAL DEFINITIONS Preferred Water Chemistry Reading Minimum Ideal Maximum Free Chlorine 1.0 - 3.0 ppm 5.0 ppm Combined Chlorine 0 ppm 0.2 ppm 7.4 - 7.6 Total Alkalinity 40 ppm 80 ppm...

  • Page 18: Troubleshooting Guide

    • No power supply. • Find out the switch and turn on. NO LED DISPLAY • RCD has not reseted. • Reset the RCD. • A power fuse has blown. • Contact Intex Service Center. • LED failure. SAVE THESE INSTRUCTIONS Page 18...
  • Page 19 • Ensure that the cell cord is plugged fi rmly 3. Electrolytic cell cord is loose. into the cell housing receptacle. • Contact Intex Service Center. Replace the 4. Possible electrolytic cell failure. cell if needed. • Partially drain the pool and refi ll it with fresh 1.

  • Page 20: Limited Warranty

    Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Krystal Clear™...

This manual is also suitable for:
