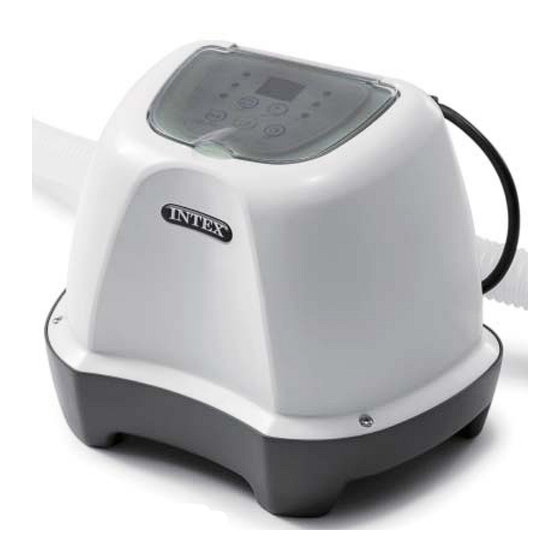

126664 - Krystal Clear saltwater system QS400
Saltwater System
Setup Video
Service Center
2
22
24
Advertisement
Table of Contents
Related Manuals for Intex Krystal Clear QS400
Summary of Contents for Intex Krystal Clear QS400
- Page 1 Zusammengeführte PDF Datei. Die Originale sind im folgenden Verzeichnis verlinkt. / Merged PDF File. Original files are linked in the following list. / Sloučený soubor PDF. Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v nasledujúcom adresári.
- Page 2 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,...
-
Page 3: Table Of Contents
Product Specifi cations..............4 Setup Instructions................. 5 Salt & Pool Water Volumes............6 Intex Pools Salt Table..............7 Intex Pools Cyanuric Acid Table........... 8 Intex Pools Operating Time Table..........9 Non-Intex Pools Salt Table............10 Non-Intex Pools Cyanuric Acid Table.......... 10 Non-Intex Pools Operating Time Table........ -
Page 4: Warnings
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • This Saltwater System is designed only to produce sodium hypochlorite. It does not monitor or control sodium hypochlorite levels in the pool. -
Page 5: Parts References
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. Inlet (Connector Hose Outlet (Hose Returning to Filter Pump) Water to Pool) NOTE: Drawings for illustration purpose only. -
Page 6: Setup Instructions
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English SETUP INSTRUCTIONS IMPORTANT • The Saltwater System requires a separate fi lter pump [300~1000 gph (1136~3785 lph)] to drive the water and function properly. • The Saltwater System must be installed as the last piece of pool equipment in the water return line to the pool as displayed below. -
Page 7: Salt & Pool Water Volumes
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English SALT & POOL WATER VOLUMES • Which kind of salt to use: A specific type of salt must be used in swimming pools to protect the equipment. When buying salt, check that the salt conforms with the EN16401 standard for Chemicals for use in swimming pools. -
Page 8: Intex Pools Salt Table
Low Salt Detected Pool Size for Easy Set & Oval Pool) 3.0g/L (3000ppm) (CODE “91”) (Gals) (Liters) (Lbs) (Kgs) (Lbs) (Kgs) INTEX ABOVE GROUND POOLS (AGP’s) 244cmx61cm (8'x24") 1942 244cmx76cm (8'x30") 2419 305cmx61cm (10'x24") 3077 305cmx76cm (10'x30") 1018 3853 EASY SET ®... -
Page 9: Intex Pools Cyanuric Acid Table
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English INTEX POOLS CYANURIC ACID TABLE Cyanuric acid is a chemical that reduces the loss of chlorine in water due to ultraviolet rays. To maintain the pool water clear and clean, and to maximize the performance of the device, add cyanuric acid to the pool. We recommend that the cyanuric acid level be maintained at approximately 0.35% of the salt, i.e. -
Page 10: Intex Pools Operating Time Table
The filter pump running time should be 1 hour longer than the required operating time of the Saltwater System. NOTE: If an Intex fi lter pump has a timer on the GFCI, the maximum run time is 10 hours. The timer will need to be manually reset in order to extend the operating time. -
Page 11: Non-Intex Pools Salt Table
13248 4000 15140 4500 17033 OPERATING TIME TABLE FOR COMMON NON - INTEX POOLS (WITH CYANURIC ACID) Operating Time (hours) at different ambient/air temperatures Recommend Filter Water Capacity pump Operating Time (hours) 10 - 19°C (50 - 66°F) 20 - 28 °C (68 - 82 °F) 29 - 36°C (84 - 97°F) -
Page 12: Operating Instructions
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English OPERATION INSTRUCTIONS 1. Turn on the filter pump. 2. Start up the unit: Plug the power cord into the electrical outlet and test the RCD (circuit breaker). Press button. Flashing code “00” appears on the electronic control station’s LED, indicating that the unit is ready to be programmed. - Page 13 (133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English OPERATION INSTRUCTIONS (continued) Set BOOST operating hours: 1. Press button to unlock the keypad. With LED flashing, press button to set the desired operating hours. Total of 4 settings: 36 hours, 48 hours, 60 hours and 00 (OFF).
-
Page 14: Led Code Chart
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English LED CODE CHART LED Reading Definitions Stand-By Mode (Start-up) Minimum Operating Hour (1 hour remaining) Operating Hours (2 hours remaining) Operating Hours (3 hours remaining) Operating Hours (4 hours remaining) Operating Hours (5 hours remaining) Operating Hours (6 hours remaining) Operating Hours (7 hours remaining) -
Page 15: Stationary Mounting
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English SALTWATER SYSTEM STATIONARY MOUNTING Some countries, especially in the European community, require the product to be secured to the ground or to a base in a permanent upright position. Check with your local authorities to determine if there is a regulation in your area regarding above-the-ground swimming pool fi... -
Page 16: Maintenance
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English MAINTENANCE IMPORTANT Unplug the power cord before cleaning your system. Also insert the black hat-like plugs in the strainer opening to prevent water spillage. After completing all maintenance tasks, you must plug the power cord back in and remove the plugs. Titanium Electrode Cleaning The titanium electrode has a self cleaning function incorporated into the electronic control’s programming. -
Page 17: Long Term Storage
English MAINTENANCE (continued) TEST STRIPS ( PACKED WITH THE PRODUCT ) INTEX ® The Test Strips can test the “Free Chlorine”, “pH”, “Calcium Hardness” and “Total Alkalinity” levels at the same time. We recommend that you test the water chemistry weekly, and maintain the chlorine concentration at 1.0-3.0 ppm. -
Page 18: Pool Maintenance And Chemical Defi Nitions
(133IO) SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022 English POOL MAINTENANCE & CHEMICAL DEFINITIONS Preferred Water Chemistry Reading Minimum Ideal Maximum Free Chlorine 1.0 - 3.0 ppm 5.0 ppm Combined Chlorine 0 ppm 0.2 ppm 7.4 - 7.6 Total Alkalinity 40 ppm 80 ppm... -
Page 19: Troubleshooting Guide
• No power supply. • Find out the switch and turn on. NO LED DISPLAY • RCD has not reseted. • Reset the RCD. • A power fuse has blown. • Contact Intex Service Center. • LED failure. SAVE THESE INSTRUCTIONS Page 18... - Page 20 • Ensure that the cell cord is plugged fi rmly 3. Electrolytic cell cord is loose. into the cell housing receptacle. • Contact Intex Service Center. Replace the 4. Possible electrolytic cell failure. cell if needed. • Partially drain the pool and refi ll it with fresh 1.
-
Page 21: Limited Warranty
Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Krystal Clear™... - Page 22 (1901) setup video QR code instruction EN FR SP GE IT DU PT DA PL RU JA CH 7.5” X 10.3” 05/30/2018 1901 QR Code / Code QR / Código QR / QR-Code / Codice QR / QR code / Código QR / QR-kode / Kod QR / QR-код...
- Page 23 (1901) setup video QR code instruction GR, CZ, HR, LV, LT, SK, SLO, RO, BG, TR, SRB, HU 7.5” X 10.3” 05/30/2018 1901 Κωδικός QR / QR kód / QR kôd / QR kods / QR kodas / QR kód / Koda QR / Cod QR / QR код...
- Page 24 Dit is de adressenlijst van alle Intex afdelingen. Voor vragen over service of het bestellen van onderdelen, gelieve contact op te nemen met het adres in uw regiogebied. U kunt ook de website www.intexcorp.com bezoeken.
- Page 25 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/ a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué...
