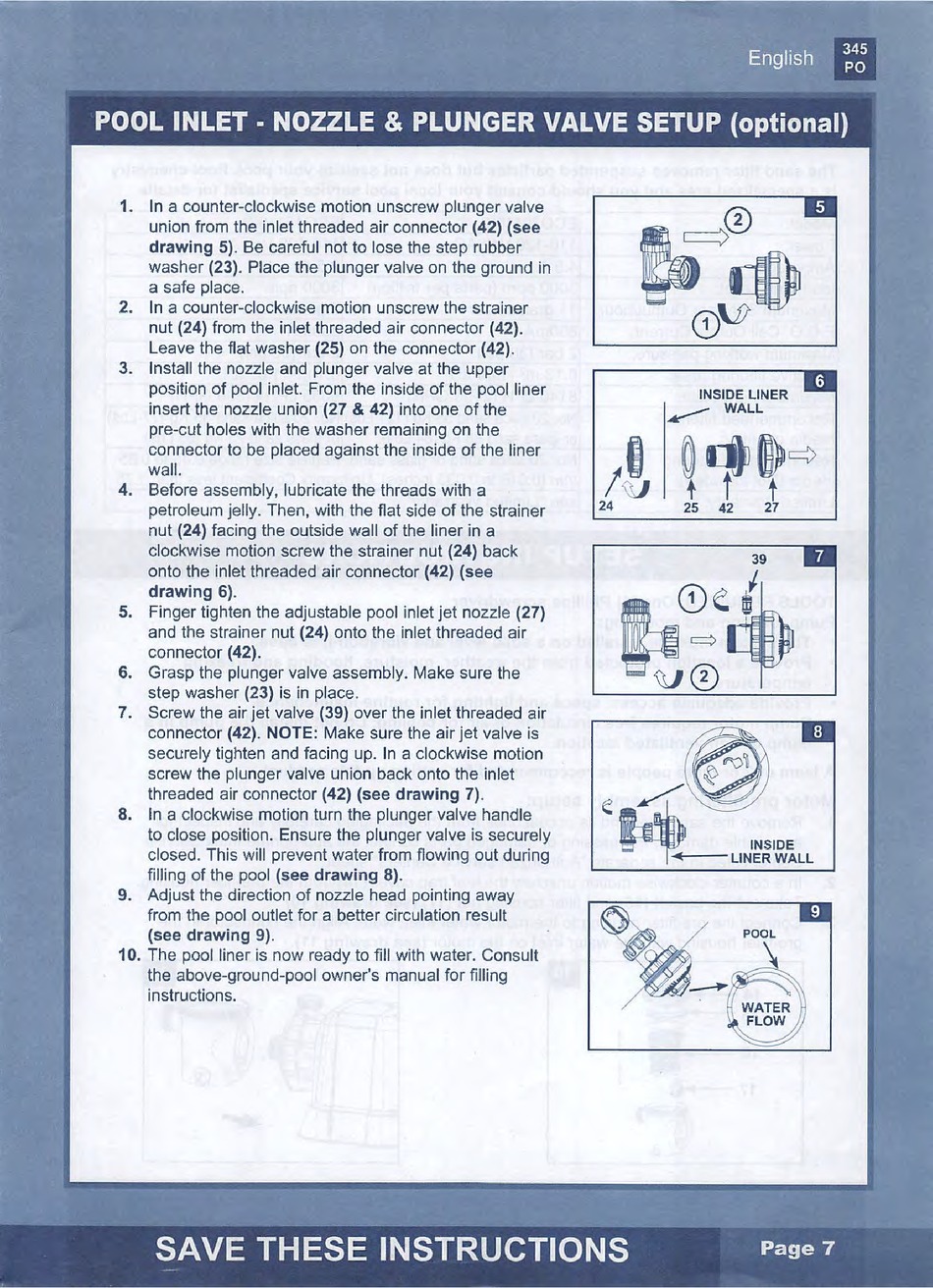

Pool Inlet - Nozzle & Plunger Valve Setup - Intex ECO20110-2 Owner's Manual

1. In a counter-clockwise motion unscrew plunger valve
union from the inlet threaded air connector
(42) (see
drawing 5).
Be careful not to lose the step rubber
washer
(23).
Place the plunger valve on the ground in
a safe place.
2.
In a counter-clockwise motion unscrew the strainer
nut (24) from the inlet threaded air connector (42).
Leave the flat washer (25) on the connector (42).
3. Install the nozzle and plunger valve at the upper
position of pool inlet. From the inside of the pool liner
insert the nozzle union (27
&
42) into one of the
pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4. Before assembly, lubricate the threads with a
petroleum jelly. Then, with the flat side of the strainer
nut (24) facing the outside wall of the liner in a
clockwise motion screw the strainer nut (24) back
onto the inlet threaded air connector (42) (see
drawing 6).
5. Finger tighten the adjustable pool inlet jet nozzle (27)
and the strainer nut (24) onto the inlet threaded air
connector
(42).
6. Grasp the plunger valve assembly. Make sure the
step washer
(23)
is in place.
7.
Screw the air jet valve
(39)
over the inlet threaded air
connector (42). NOTE: Make sure the air jet valve is
securely tighten and facing up. In a clockwise motion
screw the plunger valve union back onto the inlet
threaded air connector
(42) (see drawing 7).
8. In a clockwise motion turn the plunger valve handle
to close position. Ensure the plunger valve is securely
closed. This will prevent water from flowing out during
filling of the pool (see drawing 8).
9. Adjust the direction of nozzle head pointing away
from the pool outlet for a better circulation result
(see drawing 9).
10.
The pool liner is now ready to fill with water. Consult
the above-ground-pool owner's manual for filling
instructions.
INSIDE LINER
~
WALL
1 !
~ .,~q
24 25 42 27
~
~
/ ;~
" INSIDE
~
LINER WALL
~
POOL
~~ ~
