HWH 200 Series Operator's Manual

Joystick-controlled leveling system and spacemaker room extension system
Hide thumbs Also See for 200 Series:
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL

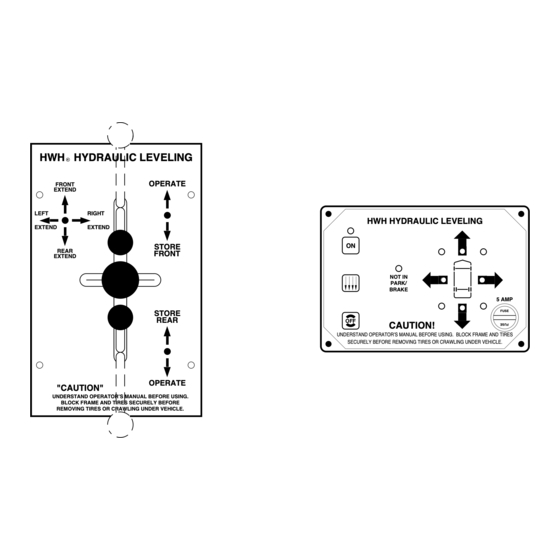

HWH JOYSTICK-CONTROLLED
200 SERIES LEVELING SYSTEM
SPACEMAKER ROOM EXTENSION SYSTEM
HWH HYDRAULIC LEVELING
LEFT
RAISE
UNDERSTAND OPERATOR'S MANUAL BEFORE USING.
Ph: 800/321-3494 (or) 563/724-3396 | Fax: 563/724-3408
AP10532
H H
W
CORPORATION
R
R
FEATURING:
Joystick BI-AXIS Leveling Control
Hydraulic Leveling
Straight-Acting Jacks
Dual Cylinder "Rail" Room Extension
(With Synchronizing Cylinder)
OPERATE
FRONT
RAISE
RIGHT
RAISE
STORE
REAR
FRONT
RAISE
STORE
REAR
OPERATE
"CAUTION"
BLOCK FRAME AND TIRES SECURELY BEFORE
REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH CORPORATION
(On I-80, Exit 267 South)
2096 Moscow Road | Moscow, Iowa 52760
www.hwh.com
R
and
R
HWH HYDRAULIC LEVELING
ON
NOT IN
PARK/
BRAKE
OFF
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HYDRAULIC ROOM EXTENSION
OFF
ON
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE
USING. KEEP PEOPLE AND OBSTRUCTIONS
CLEAR OF ROOM WHEN OPERATING.
5 AMP
FUSE
H
W
H
R
CORPORATION
EXTEND
RETRACT
ML10532/MP05.1701/JH-SRE
16JAN03
