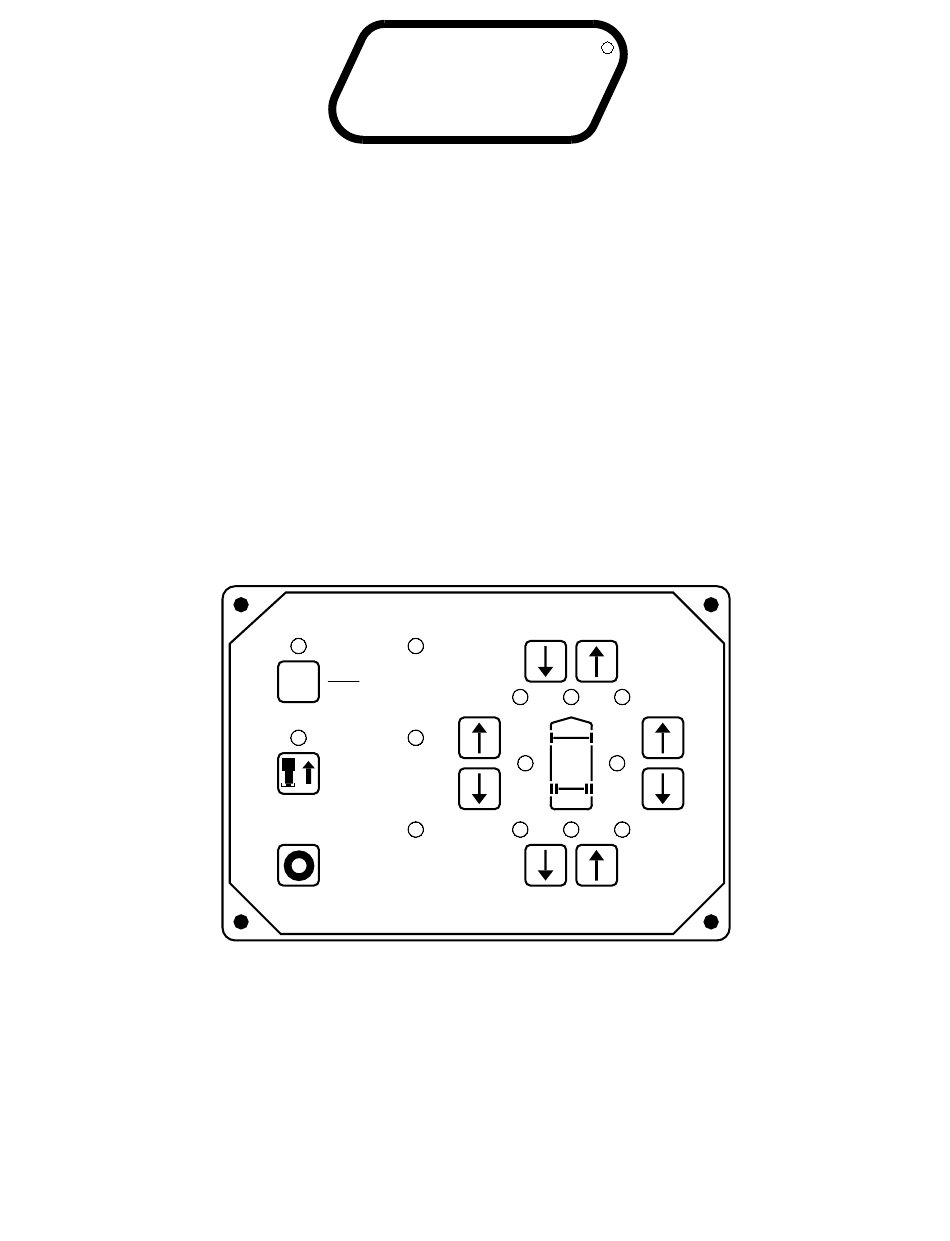

HWH 610 Series Operator's Manual
Computer-controlled leveling system
Hide thumbs
Also See for 610 Series:
- Service manual (38 pages) ,
- Operator's manual (24 pages) ,
- Operator's manual (12 pages)
Table of Contents
Advertisement
Quick Links
OPERATOR'S MANUAL
HWH COMPUTER-CONTROLLED
AP0989 - US
AP10302 - Europe
H
W
CORPORATION
LEVELING SYSTEM
610 SERIES
FEATURING:
TOUCH PANEL CONTROL
HYDRAULIC LEVELING
KICK-DOWN JACKS
HWH COMPUTERIZED LEVELING
EXCESS
l
ON
SLOPE
LEVEL
NOT IN
PARK/
STORE
BRAKE
TRAVEL
OFF
CAUTION!
UNDERSTANDING OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH CORPORATION
(ON I-80, EXIT 267 SOUTH)
2096 MOSCOW ROAD
MOSCOW, IOWA 52760
(800) 321-3494 / (563) 724-3396
INTERNET: http: //www.hwhcorp.com
H
R
ML0989/MP05.5003/CH-K
21MAR01
