OPERATOR'S MANUAL
HWH COMPUTER-CONTROLLED
SPACEMAKER ROOM EXTENSION SYSTEM
TOUCH PANEL LEVELING CONTROL
HYDRAULIC ROOM EXTENSION
INTERNET: http: //www.hwhcorp.com
H
W
CORPORATION
LEVELING SYSTEM
500 SERIES
FEATURING:
HYDRAULIC LEVELING
AIR DUMP
STRAIGHT-ACTING JACKS
HWH COMPUTERIZED LEVELING
EXCESS
SLOPE
HYD
LEVEL
NOT IN
PARK/
BRAKE
STORE
DUMP
TRAVEL
OFF
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH CORPORATION
(ON I-80, EXIT 267 SOUTH)
2096 MOSCOW ROAD
MOSCOW, IOWA 52760
(800) 321-3494 / (563) 724-3396
H
R
ML10731/MP05.3701/CHA-S
16MAR01
Advertisement
Related Manuals for HWH 500 Series
Summary of Contents for HWH 500 Series
- Page 1 CORPORATION OPERATOR’S MANUAL HWH COMPUTER-CONTROLLED LEVELING SYSTEM 500 SERIES SPACEMAKER ROOM EXTENSION SYSTEM FEATURING: TOUCH PANEL LEVELING CONTROL HYDRAULIC LEVELING AIR DUMP STRAIGHT-ACTING JACKS HYDRAULIC ROOM EXTENSION HWH COMPUTERIZED LEVELING EXCESS SLOPE LEVEL NOT IN PARK/ BRAKE STORE DUMP TRAVEL CAUTION! UNDERSTAND OPERATOR’S MANUAL BEFORE USING.
-
Page 2: How To Obtain Warranty Service
HWH CORPORATION personnel will contact you to the problem quickly. If the dealer has difficulty solving determine whether or not your claim is valid. If it is, HWH the problem, he should immediately contact the Customer CORPORATION will authorize repair or replacement of the Service Department, at HWH CORPORATION. -
Page 3: Control Identification

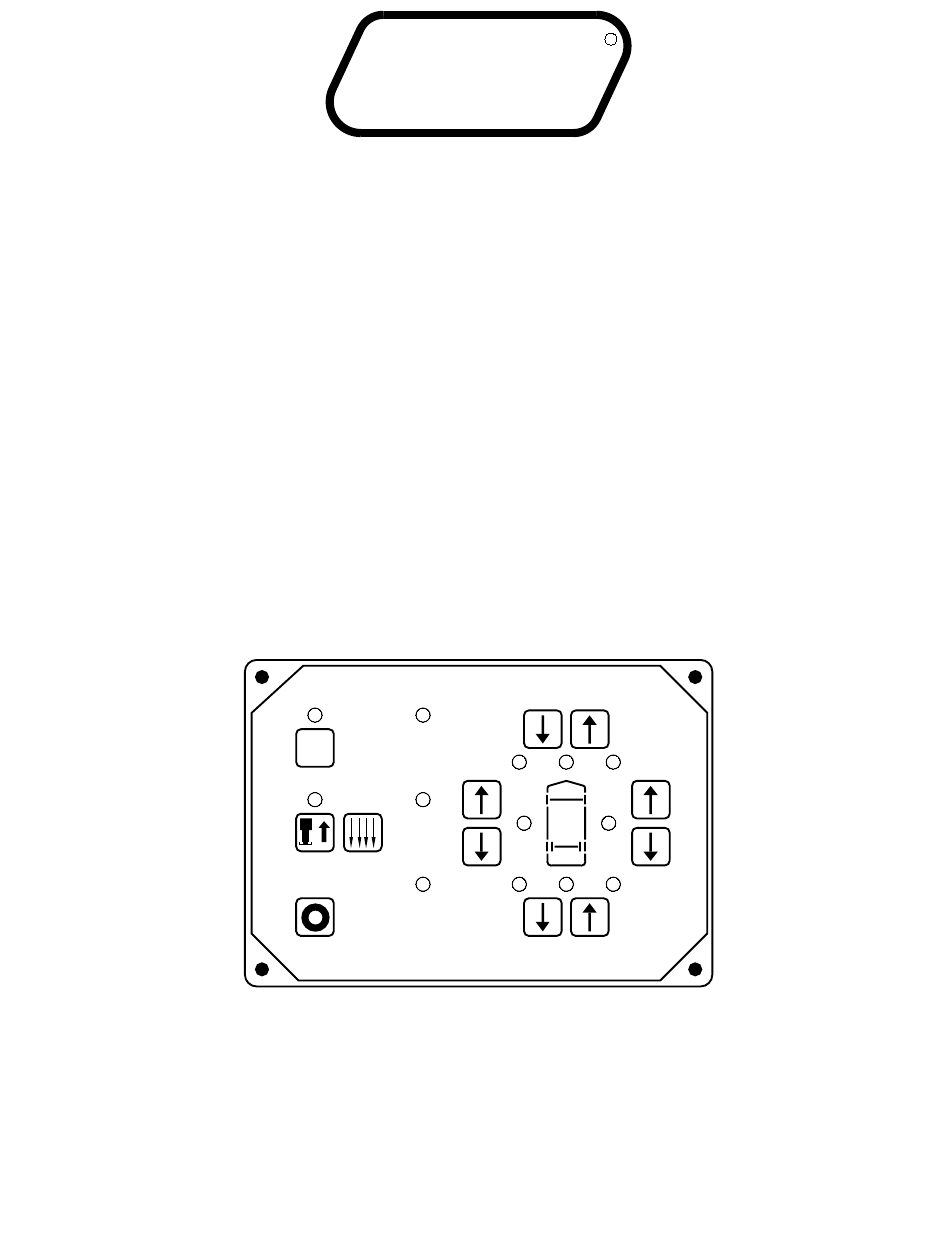

CONTROL IDENTIFICATION "EXCESS SLOPE" LOW BATTERY LIGHT LIGHT FRONT RETRACT BUTTON "NOT IN PARK" LIGHT FRONT EXTEND BUTTON LEVEL LIGHT HWH COMPUTERIZED LEVELING "LEVEL" BUTTON WARNING LIGHTS (4- Red) EXCESS LEVEL SLOPE STORE LIGHT RIGHT SIDE EXTEND BUTTON NOT IN... - Page 4 CONTROL IDENTIFICATION ROOM OPERATOR’S PANEL HYDRAULIC ROOM EXTENSION ROOM CONTROL EXTEND KEY SWITCH SWITCH CAUTION! UNDERSTAND OPERATOR’S MANUAL BEFORE USING. KEEP PEOPLE AND OBSTRUCTIONS RETRACT CLEAR OF ROOM WHEN OPERATING. CONTROL FUNCTIONS KEY SWITCH: The KEY SWITCH controls power to the ROOM ROOM CONTROL SWITCH:The ROOM CONTROL SWITCH CONTROL SWITCH.
