HWH 200 Series Operator's Manual

Joystick-controlled leveling system and spacemaker room extension system
Hide thumbs Also See for 200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
HWH JOYSTICK-CONTROLLED
200 SERIES LEVELING SYSTEM
SPACEMAKER ROOM EXTENSION SYSTEM
Dual Cylinder "Rail" Room Extension or
Dual Cylinder "Vertical Arm" Room Extension
HWH HYDRAULIC LEVELING
FRONT
RAISE
LEFT
RAISE
REAR
RAISE
"CAUTION"
UNDERSTAND OPERATOR'S MANUAL BEFORE USING.
BLOCK FRAME AND TIRES SECURELY BEFORE
REMOVING TIRES OR CRAWLING UNDER VEHICLE.
Ph: 800/321-3494 (or) 563/724-3396 | Fax: 563/724-3408
H H
W
CORPORATION
R
and
R
FEATURING:
Joystick BI-AXIS Leveling Control
Hydraulic Leveling
Straight-Acting Jacks
Suspension Air Dump
OPERATE
RIGHT
RAISE
STORE
FRONT
STORE
REAR
OPERATE
HWH CORPORATION
(On I-80, Exit 267 South)
2096 Moscow Road | Moscow, Iowa 52760
www.hwh.com
R
R
HWH HYDRAULIC LEVELING
ON
NOT IN
PARK/
BRAKE
OFF
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
5 AMP
FUSE
ML14287/MP05.1706/LH-S
15OCT02

Advertisement

Table of Contents
loading

Related Manuals for HWH 200 Series

Summary of Contents for HWH 200 Series

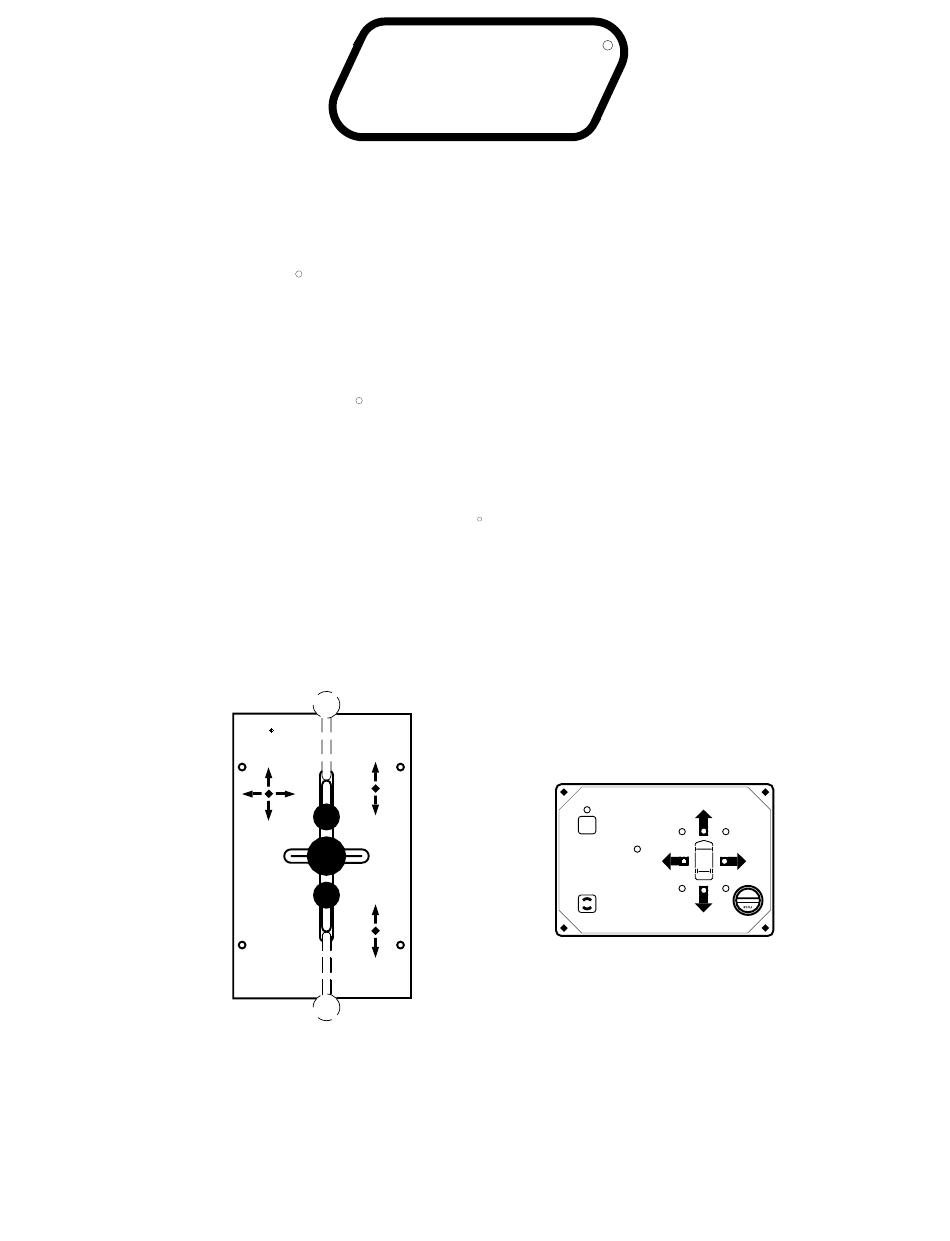

  • Page 1 CORPORATION OPERATOR’S MANUAL HWH JOYSTICK-CONTROLLED 200 SERIES LEVELING SYSTEM SPACEMAKER ROOM EXTENSION SYSTEM FEATURING: Joystick BI-AXIS Leveling Control Hydraulic Leveling Straight-Acting Jacks Suspension Air Dump Dual Cylinder "Rail" Room Extension or Dual Cylinder "Vertical Arm" Room Extension HWH HYDRAULIC LEVELING...
