RS-423A (RS-232C)
Jumper Pin 3 to Pin 11
Receive (Data In)
Rec +
Rec -
You must also set the RS-423/RS-422 Jumper for a communications interface. Put
the jumper on W423 for RS-423, or on W422 for RS-422.
A007-1484

Where To Go From Here

Now you are ready to program and tune your Series 1500. If you haven't read the
sample program information in Chapter 2, please do so now. Or if you already
understand how to program the Series 1500, go ahead and enter your program.
You'll find a Programming Chart in the Technical Reference section, Chapter 4, that
is particularly helpful in recording your program.
Installation - Wiring, Chapter 3
Signal Common
RS-422A
Tran +
DB-15 Connector
Transmit (Data Out)
Jumper Pin 11 to Pin 3
Serial Port Groun
Series 1500
DB-15 Female
with respect
to the Series 1500
Tran -
(Serial Port Common)
W423 W422
WATLOW Series 1500 User's Manual
Installation-Wiring

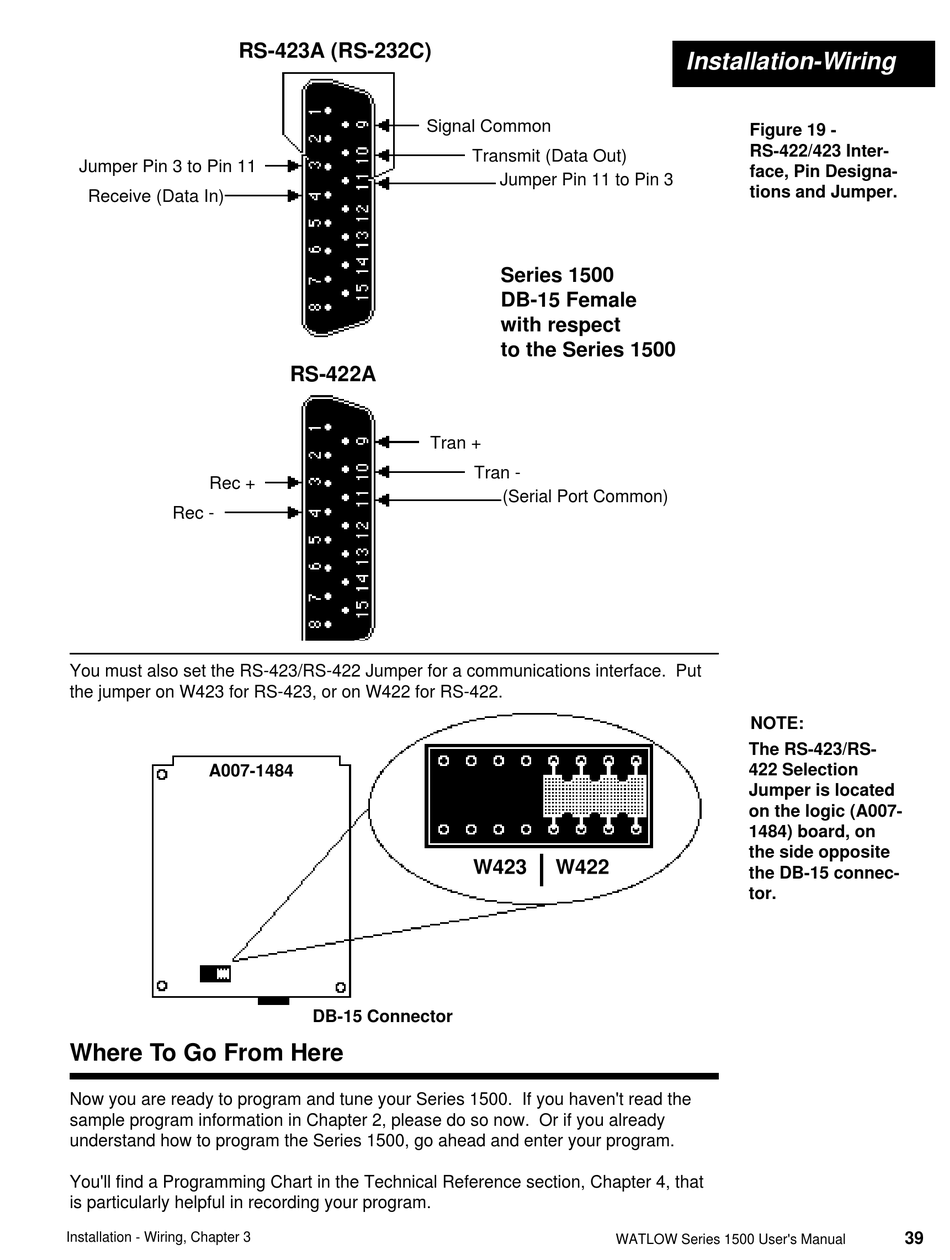

Figure 19 -
RS-422/423 Inter-
face, Pin Designa-
tions and Jumper.
NOTE:
The RS-423/RS-
422 Selection
Jumper is located
on the logic (A007-
1484) board, on
the side opposite
the DB-15 connec-
tor.
