VERSION # 20-01-14
1 / 15
MODEL #
CM1927
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM1927 and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America CM1927

Summary of Contents for Furniture of America CM1927

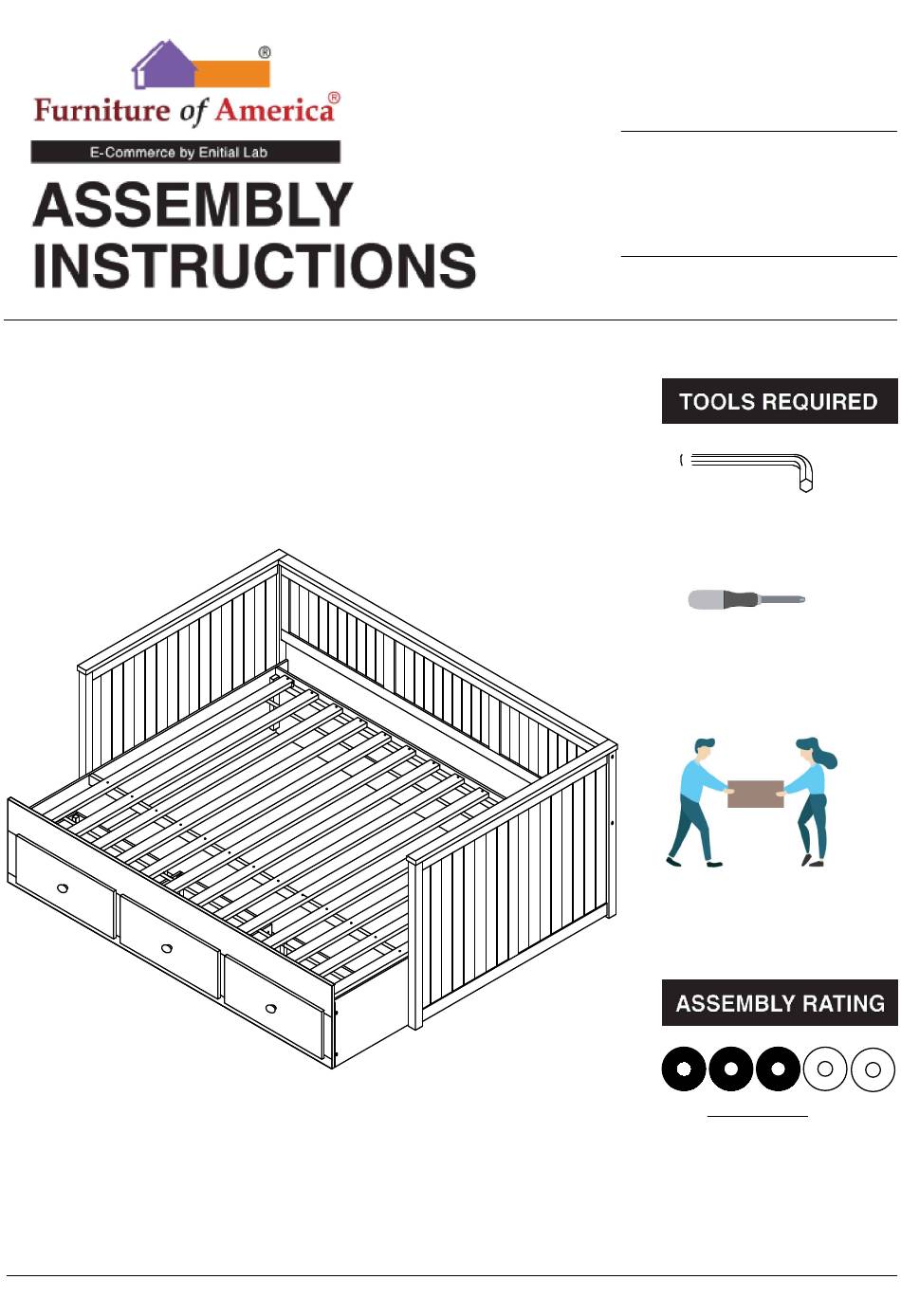

  • Page 1 MODEL # CM1927 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
  • Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
  • Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
  • Page 4 4 / X X X X X X X 1 5...
  • Page 5 DAYBED CM1927 #3 1pc #1 1pc #2 1pc #4 1pc Headboard (L) Headboard (R) Guardrail Front Trundle Panel #7 1pc #5 1pc #6 2pcs #8 1pc Top Trundle Support Bottom Trundle Support Back Trundle Panel End Trundle Panel #11 3pcs...
  • Page 6 #D 20pcs #A 4pcs #B 4pcs #C 6pcs Bolt Bolt Barrel Nut Bolt Ø1/4" x 1-3/16" Ø1/4" x 3-1/8" Ø1/4" x 1-3/8" #H 6pcs #E 12pcs #F 63pcs #G 3pcs Screw Wood Dowel Screw Screw #3x12mm Ø6 x 30mm #4x30mm #3x15mm #L 1pc #I 3pcs...
  • Page 7 Exploded View 7 / 15...
  • Page 8 CM1927 is packed in 2 cases Carton Disignation Part Hardware Headboard (L) CM1927-1 Headboard (R) #Ax4pcs Guardrail #Bx4pcs Front Trundle Panel #Cx6pcs #Dx20pcs Back Trundle Panel #Ex12pcs End Trundle Panel #Fx63pcs #Gx3pcs Top Trundle Support #Hx6pcs CM1927-2 Bottom Trundle Support...
  • Page 9 CM1927 is packed in 2 cases Carton Disignation Part Hardware Bottom Drawer Panel CM1927-2 Slat Kit (13pcs) 9 / 15...
  • Page 10 ASSEMBLY INSTRUCTIONS Align guardrail (#3) to headboards (#1,2), then secure by using bolts (#A). Part #1 x 1pc Part #2 x 1pc Part #3 x 1pc Hardware #A x 4pcs Hardware #B x 4pcs Align trundle panels (#6) to the front and back trundle panels (#4,5).
  • Page 11 ASSEMBLY INSTRUCTIONS Align trundle supports (#7,8) to the trundle side panels, then secure by using bolts (#D). Part #7 x 1pc Part #8 x 1pc Hardware #D x 4pcs Align crossbars (#9) to the trundle, then secure by using bolts (#C). Part #9 x 3pcs Hardware...
  • Page 12 ASSEMBLY INSTRUCTIONS Insert dowels (#E) to front drawer panel (#10), then align side panels (#11,12) and bottom panel (#14) to the front panel (#10). Secure by screwing screws (#F) directly to front panel (#10). There will be no pre-drilled screw holes for front panel (#10).
  • Page 13 ASSEMBLY INSTRUCTIONS Align scroll bar (#I) to the bottom of the drawer, then secure by using screws (#H,G) as shown in the diagram. Hardware #G x 1pc Hardware #H x 2pcs Hardware #I x 1pc Secure knob (#K) onto drawer by using bolts (#J).
  • Page 14 ASSEMBLY INSTRUCTIONS Align trundle frame to the headboard (#1,2), then secure by using bolts (#D). Hardware #D x 8pcs Align drawers to the railing, then swiftly with slight force, push the drawer in to lock. 14 / 15...
  • Page 15 ASSEMBLY INSTRUCTIONS Align slats (#15) to the product, then secure by using screws (#F). Part #15 x 1set Hardware #F x 39pcs 15 / 15...
