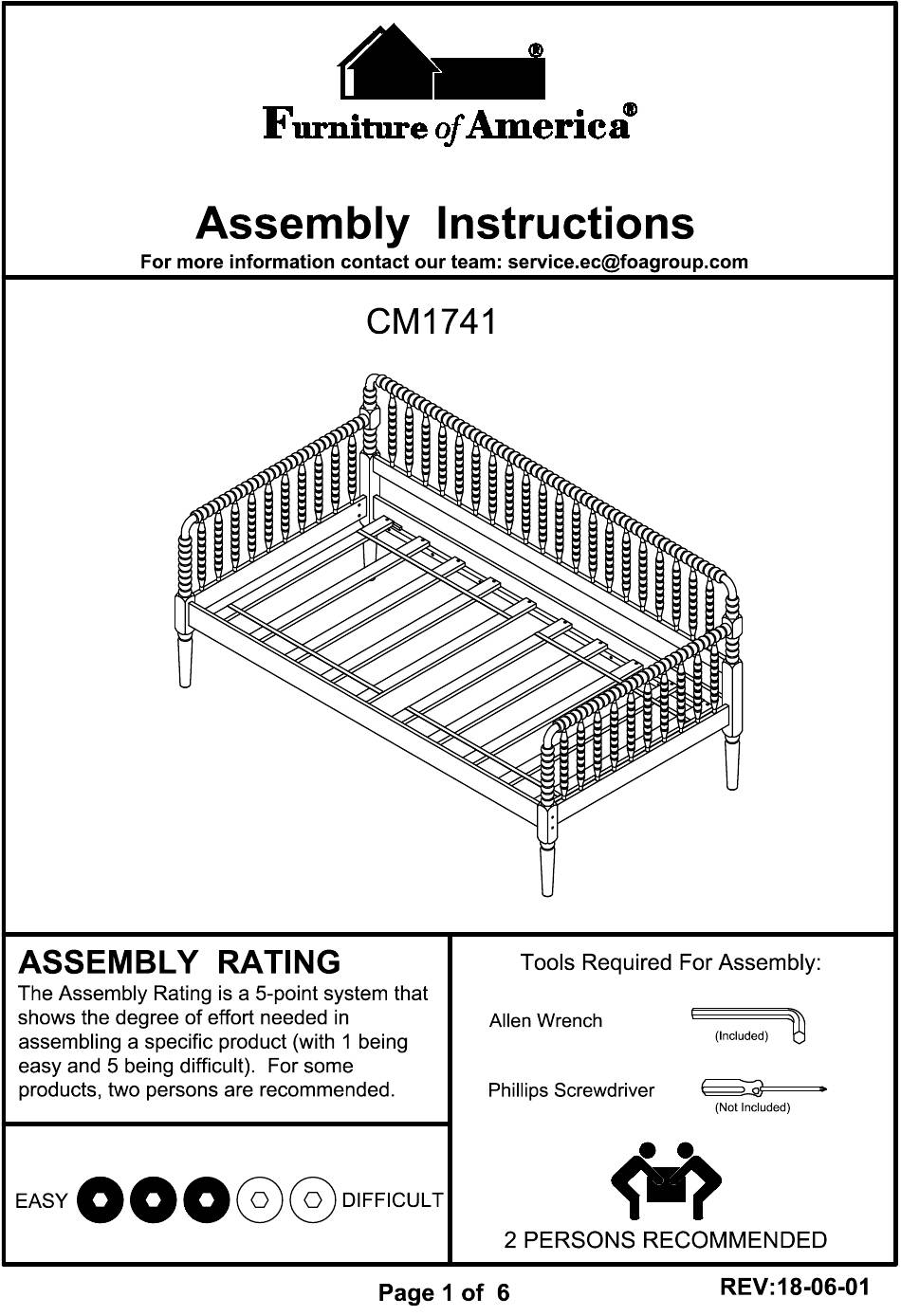

Assembly Instructions
EASY
DIFFICULT
Page 1 of 6
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
(Not Included)
CM1741
REV:18-06-01
For more information contact our team: service.ec@foagroup.com
Advertisement
Related Manuals for Furniture of America CM1741
Summary of Contents for Furniture of America CM1741
- Page 4 Attach legs (#5) to the back side rail (#3). Attach legs (#5) to the headboards (#1,2).
- Page 5 Insert barrel nuts (#D) to the holes of the headboards (#1,2), then align headboards (#1,2) to the holes of the back side rail (#3). Secure by tightening bolts (#B) onto barrel nuts (#D). Insert dowels (#A) and barrel nuts (#D) to the holes of the front side rail (#4), then align front side rail (#4) to the holes of the headboards (#1,2).
- Page 6 Align slats (#6) to the side rails (#3,4), then secure by using screws (#E).
