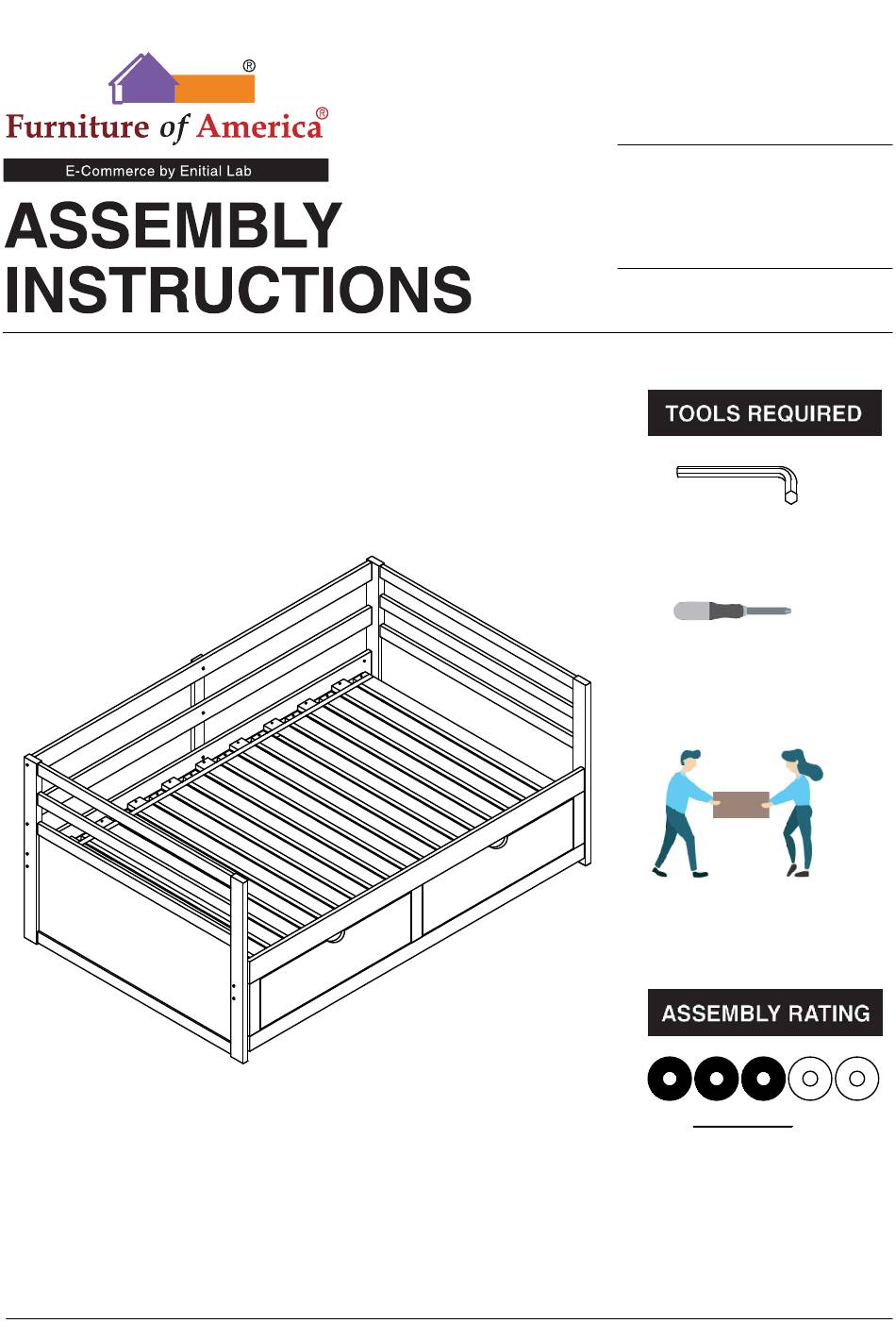

VERSION # 19-12-24
1 / 16
MODEL #
CM1745
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM1745
Summary of Contents for Furniture of America CM1745
- Page 1 MODEL # CM1745 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 16...
- Page 5 DAYBED CM1745 #1 1pc #2 1pc #3 1pc #4 1pc Left Headboard Right Headboard Back Side Rail Front Side Rail #5 2pcs #6 1pc #7 3pcs #8 1pc Back Guardrail Flap Flap Guardrail #9 1set #10 1set #11 1pc #12 1pc...
- Page 6 #17 2pcs #18 2pcs #19 2pcs Right Board Back Board Bottom Board #D 3pcs #A 12pcs #B 12pcs #C 11pcs Bolt Barrel Nut Bolt Hex Cap Ø1/4" x 3-1/8" Ø1/4" x 1/2" Ø1/4" x 1-3/16" Ø1/4" x 5/8" #H 42pcs #E 4pcs #F 8pcs #G 6pcs...
-
Page 7: Exploded View
Exploded View #15,#16,#17,#18,#19 7 / 16... - Page 8 ASSEMBLY INSTRUCTIONS Insert dowels (#E) to guardrails (#5), then align guardrails (#5) and side rails (#3) to the headboards (#1,2). Secure by using bolts (#A) with barrel nuts Part (#B). #1 x1pc Part #2 x1pc Part #3 x1pc Part #4 x1pc Part #5 x2pcs Hardware...
- Page 9 ASSEMBLY INSTRUCTIONS Align flaps (#7) to the side rails (#3,4), then secure by using screws (#G). Part #7 x3pcs Hardware #G x6pcs Align flap (#8) to the bed. Part #8 x1pc 9 / 16...
- Page 10 ASSEMBLY INSTRUCTIONS Align wheels (#M) to the bottom of the trundle frame and rail (#11,12). Secure by using screws (#J). Part #11 x1pc Part #12 x1pc Hardware #J x8pcs Hardware #M x4pcs Align trundle sides (#13) to the trundle frame and rail (#11,12), then secure by using screws Part #13 x2pcs...
- Page 11 ASSEMBLY INSTRUCTIONS Align drawer runners (#14) to the trundle, then secure by using screws (#H). Part #14 x2pcs Hardware #H x4pcs Insert dowels (#F) to the front board (#15), then align side boards (#16,17) with bottom board (#19) to the front board (#15). Secure by using screws (#I).
- Page 12 ASSEMBLY INSTRUCTIONS Align back board (#18) to the drawer, then secure by using screws (#I). Part #18 x1pc Hardware #I x4pcs Align scroll bars (#N) to the bottom of the drawer, then secure by using screws (#K,L). Hardware #K x1pc Hardware #L x2pcs Hardware...
- Page 13 ASSEMBLY INSTRUCTIONS Align and attach drawers to trundle. Please use slight force when pushing drawers into trundle. Align slats (#9) to the bed. Make sure the slats (#9) closest to the headboards on both ends and all Part #9 x1set slats (#9) are 155mm away from each other.
- Page 14 ASSEMBLY INSTRUCTIONS Secure slats (#9) by using screws (#H). Part #9 x1pc Hardware #H x18pcs 14 / 16...
- Page 15 ASSEMBLY INSTRUCTIONS Align slats (#10) to the other slats (#9) that fill in the gap, then secure by using screws (#H). Part #10 x1set Hardware #H x20pcs 15 / 16...
- Page 16 ASSEMBLY INSTRUCTIONS When we pull the drawer out, close to the shoulders of the bed,we lift the drawer slightly it all out,then put it gently on the floor . 16 / 16...
