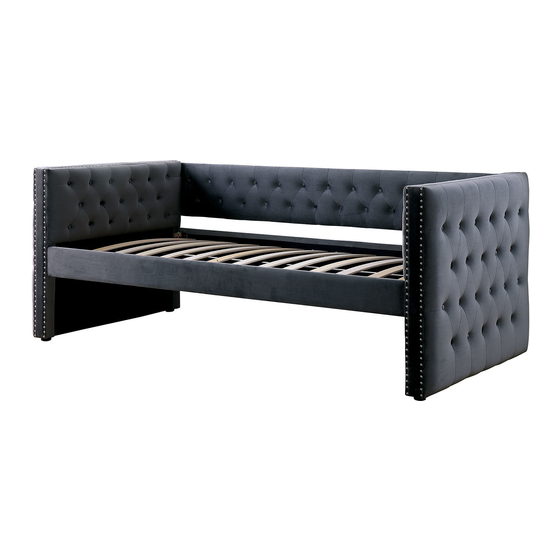

Summary of Contents for Furniture of America Susanna CM1739

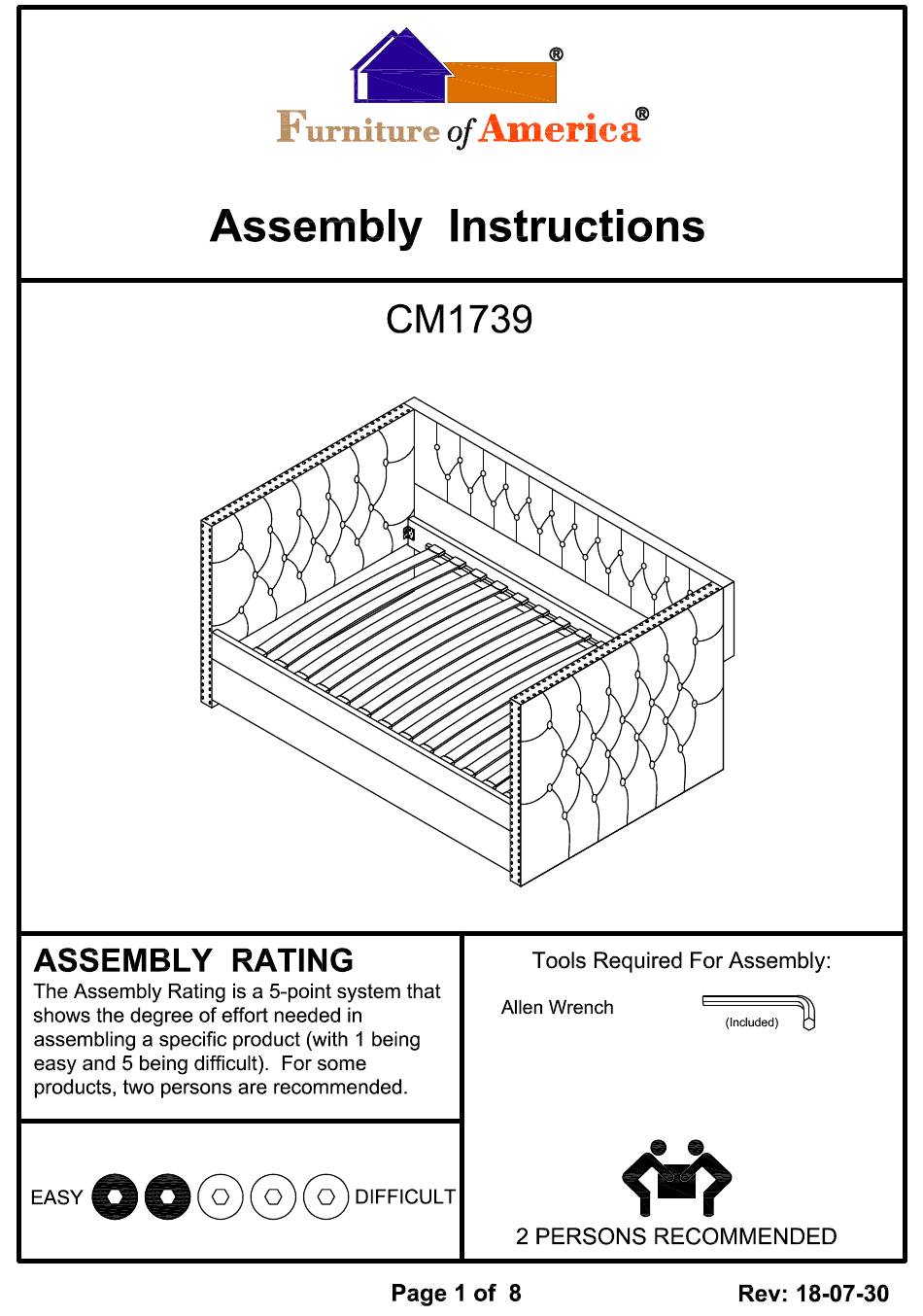

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Align arms (#1R/L) to the side rails (#3), then secure by using bolts (#A) with washers (#D,E). Align center metal support (#8) to the arms (#1R/L), then secure by using bolts (#A) with washers (#E). Align metal support (#5) to the side rails (#3) and center metal support (#8), then secure by using bolts (#A) with washers (#E).
- Page 6 Align top back panel (#2) to the arms (#1R/L), then secure by using bolts (#B) with washers (#E). Insert end caps (#9) to each slats (#7), then attach slats (#7) to unit.
- Page 7 Align bottom side panels (#6) to front and back panels (#4,10), then secure by using bolts (#C) with washers (#D,E). Align center metal support (#12) to the side panels (#6), then secure by using bolts (#C,E). Align metal support (#11) to side panels (#6) and center support (#12), then secure by using bolts (#A) with washers (#E).
- Page 8 Insert end caps (#9) to each slats (#7), then attach slats (#7) to unit.
