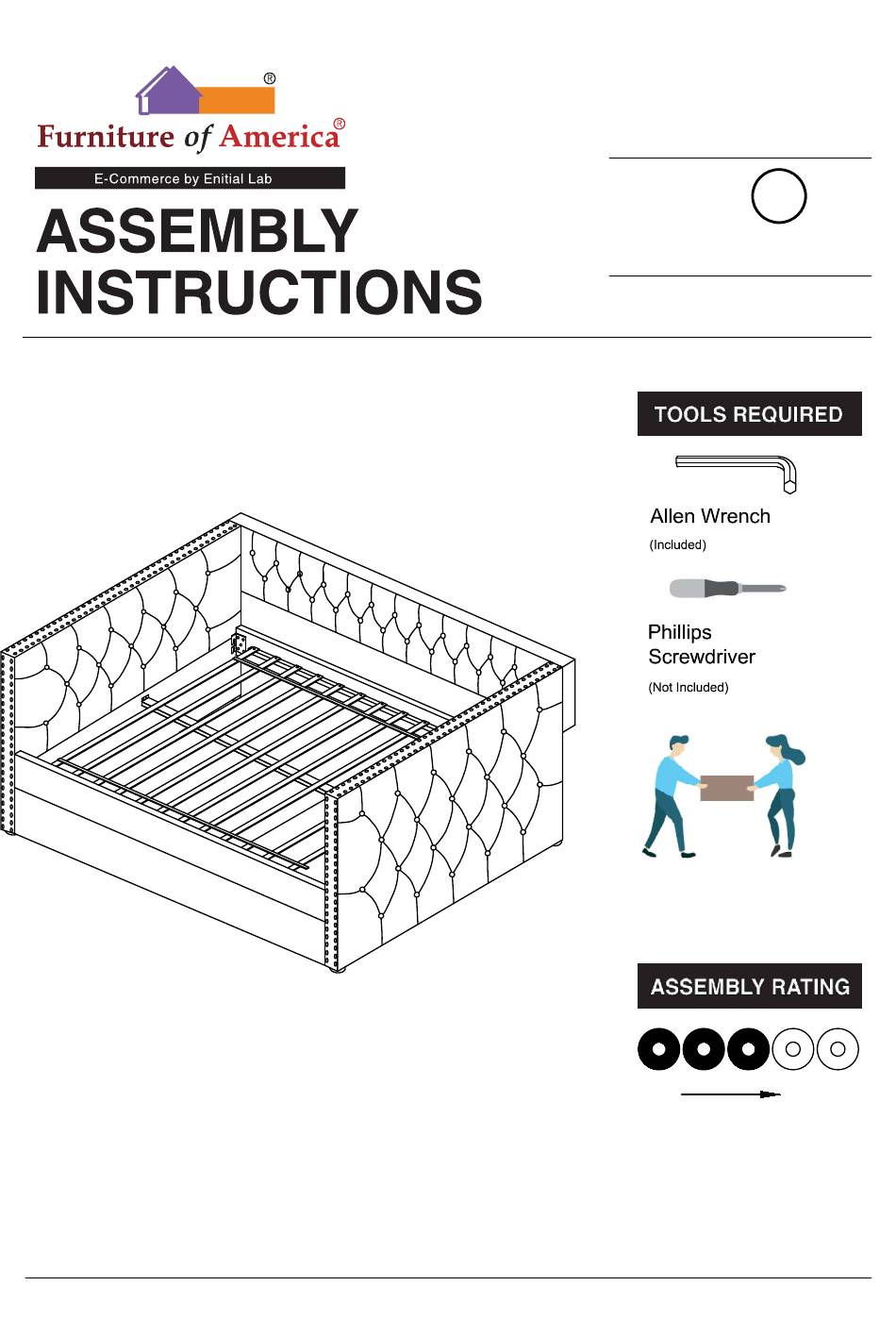

- Page 1 MODEL # CM1739 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-11-20 1 / 12...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 2...
- Page 5 DAY BED CM1739 #1 2pcs #2 1pc #4 1pc #3 2pcs Top Back Panel Top Side Rails Arm(L&R) Bottom Front Panel #5 1pc #6 2pcs #7 1Set #8 1Set Bottom Side Panels Top Slat (13pcs) Bottom Slat (12pcs) Bottom Back Panel #9 1pc #10 1pc #11 4pcs...
- Page 6 #D 20pcs #E 16pcs #F 4pcs Spring Washer Ø5/16" Flat Washer Ø5/16"x19mm Flat Washer Ø5/16"x22mm #G 75pcs #H 4pcs #I 1pc Allen Key 5mm Screw #8 x 50mm Screw #8 x 32mm 6 / 12...
- Page 7 is packed in 2 cases CM1739 Carton Disignation Part Hardware #A x 8pcs Arm （ L&R) #B x 4pcs #C x 8pcs #D x 20pcs #E x 16pcs Slat Up #F x 4pcs CM1739 #G x 75pcs #H x 4pcs #I x 1pc Slat Down Top Back Panel...
- Page 8 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #11 x2pcs Hardware #H x2pcs Align feet (#11) to the headboard (#1), then secure by using screws (#H). Align side rails (#3) to the headboards (#1), then secure by using bolts (#A) with washers (#D,E). Part #3 x2pcs Hardware...
- Page 9 ASSEMBLY INSTRUCTIONS Align and attach the center support rail (#9) to the headboard (#1). Part #9 x1pc Align back panel (#2) to the headboards (#1), then secure by using bolts (#B) with washers (#D,F). Part #2 x1pc Hardware #B x4pcs Hardware #D x4pcs Hardware...
- Page 10 ASSEMBLY INSTRUCTIONS Align slats (#7) to the rails, then secure by using screws (#G). Part #7 x1set Hardware #G x39pcs Align front and back trundle panels (#4,5) to the trundle side panels (#6), then secure by using bolts (#C) with washers (#D,E). Part #4 x1pc Part...
- Page 11 ASSEMBLY INSTRUCTIONS Align and attach the trundle center support rail (#10) to the side rails (#6). Part #10 x1pc Align slats (#8) to the front and back panels, then secure by using screws (#G). Part #8 x1set Hardware #G x36pcs 11 / 12...
- Page 12 ASSEMBLY INSTRUCTIONS 12 / 12...
