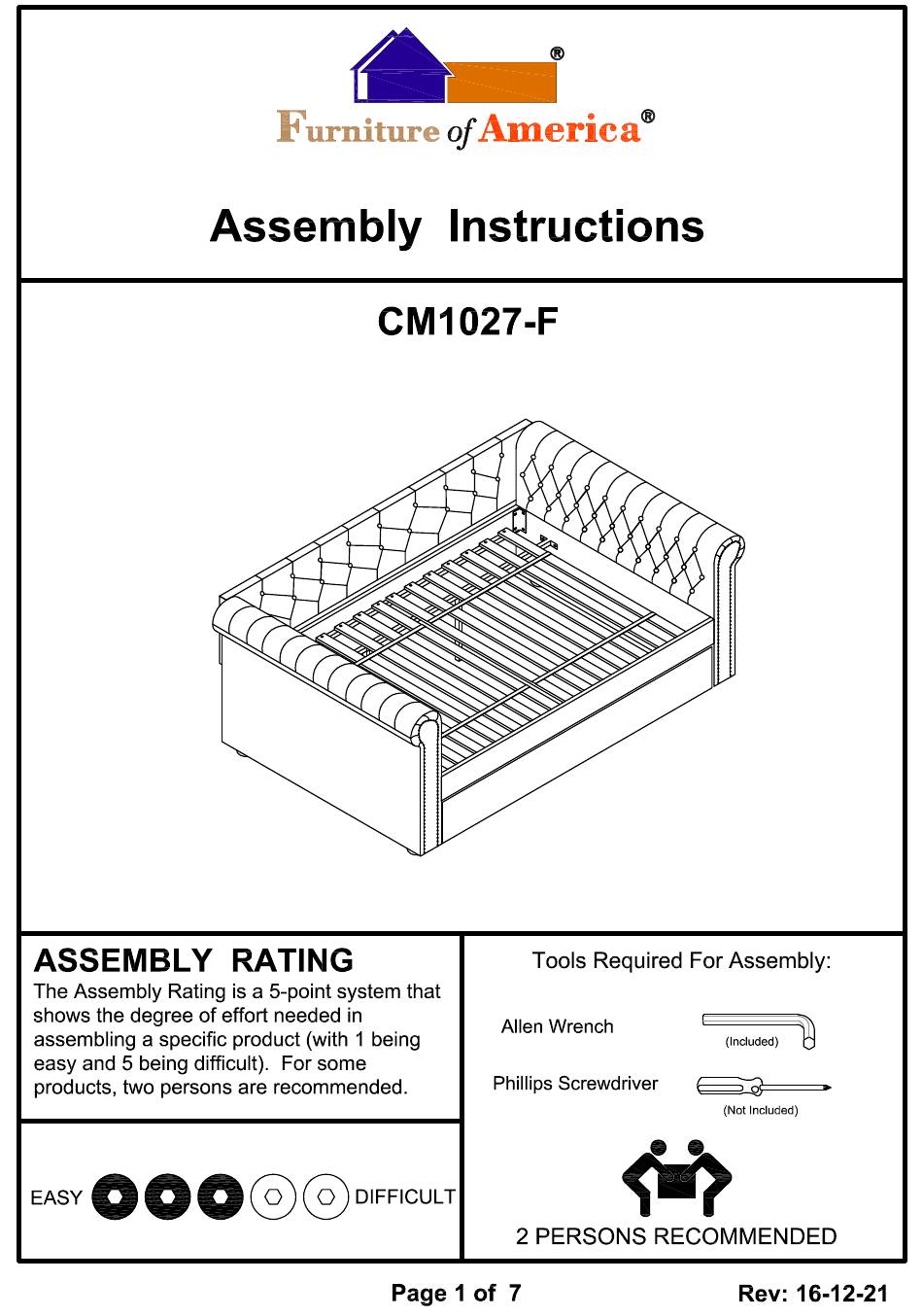

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Prepare 16 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#H,I). Align back/ front rail (#5,6) to the end of the left/right arm (#1,2), then align bracket (#A) to the holes of the rails (#5,6) and arms (#1,2).
- Page 6 Prepare 2 bolts assembly by inserting washer (#F) onto bolts (#J). Align support legs (#9) to the holes of the support rail (#8). Secure with bolts (#J). Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#G). Align back rest (#3) to the holes of the arms (#1,2).
- Page 7 Align middle slat (#7) to the center of the daybed, then align slats (#4) next to the middle slat (#7). Secure with screws (#K). Assembly Completed...
- Page 8 For more information contact our team: service.ec@foagroup.com...
- Page 11 Prepare 16 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#E). Align left and right panels (#3) to the side of the trundle front and back panel (#1,2). Align the brackets (#A) to the holes of the panels, then secure with bolts (#E).
- Page 12 Secure slats to trundle with screw (#F). Assembly Completed...
