Hillsdale Furniture HILLAMATIC 90013 Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly is required. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (5) Allen Bolts M6 x 56mm
B (4) Allen Bolts M6 x 37mm
C (1) Allen Wrench
D (9) Hex Nuts
E (18) Flat Washers
F (1) Hex Wrench
MAIN FIGURE
FIGURE B
D
J
E
B
K
E
FIGURE C
Arrows should be
pointing up when
the support deck is
fully assembled.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for
polishing, as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
PARTS LIST
G (2) Bed Frames
H (3) Frame Connectors
J (2) Large Casters
K (4) Small Casters
G
H
J
H
G
This illustration shows
the frame upside down.
G

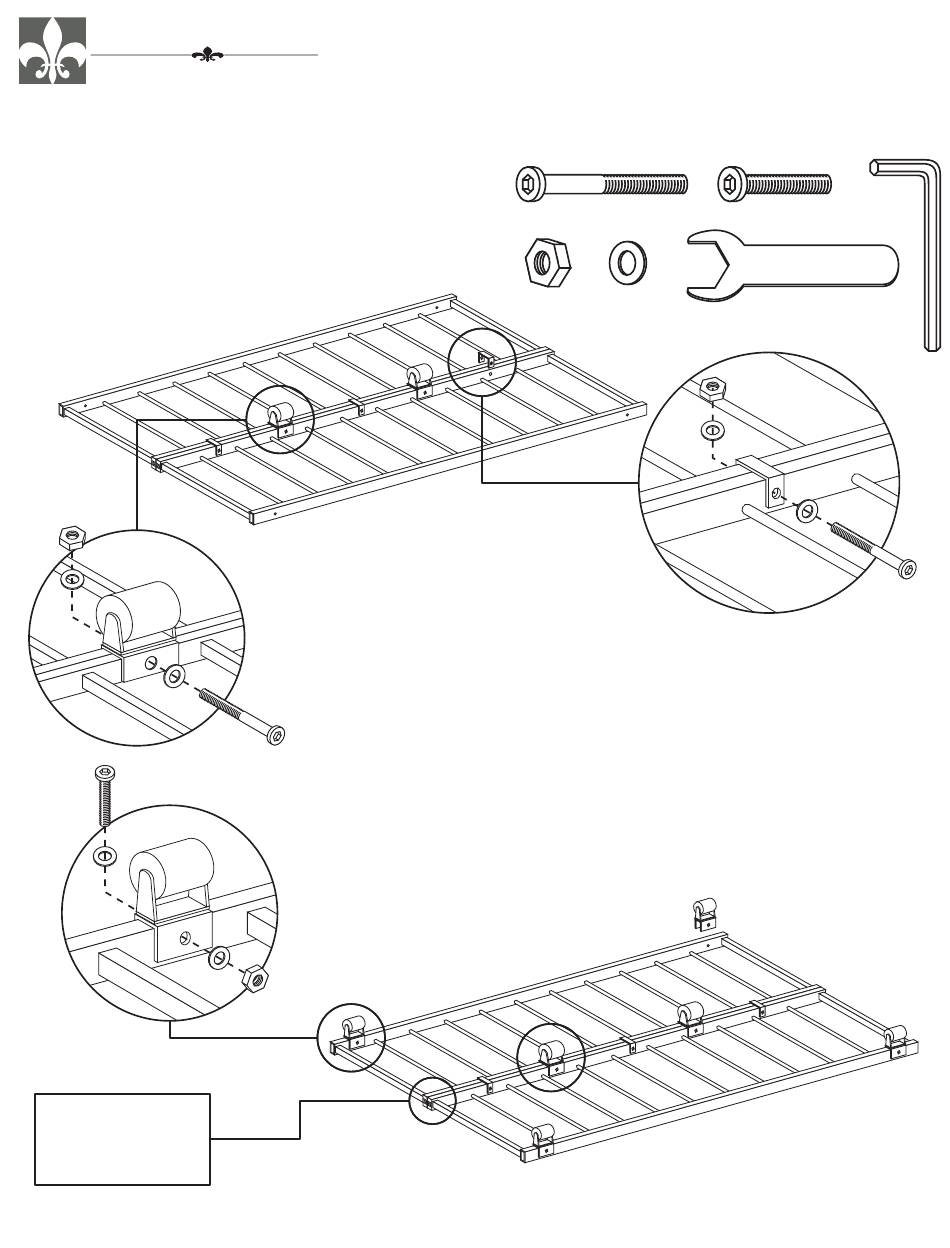

STEP 1
Begin assembly by attaching each Bed Frame (G) together by aligning the
E
holes and securing with the 3 Connectors (H) and 2 Large Casters (J). Fit
together and secure in place with 1 Allen Bolt (A), 1 Flat Washer (E), on the
A
other side 1 Flat Washer (E) & 1 Hex Nut (D). Tighten all bolts and nuts
using the Allen and Hex Wrenches (C & F) that have been provided. See
Figures A & B.
STEP 2
Attach each Small Caster (K) to the end of each Bed Frame (G) by aligning
holes and securing with 1 Allen Bolt (B), 1 Flat Washer (E) from the outside
and 1 Flat Washer (E) & 1 Hex Nut (D) on the inside. Tighten all bolts and
nuts. The assembly is now complete.
G
E
D
K
HILLAMATIC
ROLL OUT TRUNDLE
Model #90013 Metal Trundle Frame
A
D
J
H
FIGURE A
a
MAIN FIGURE
G
K
B
E F
D
E
H
K
G
Date:
02-17-09
C
G
G
E
A
K
