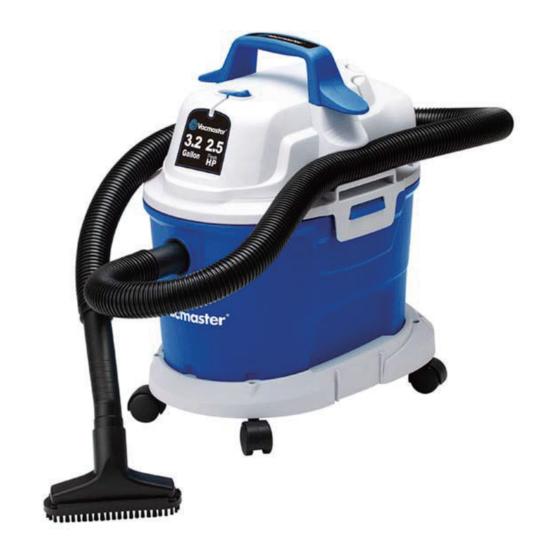

Wet/Dry Vacuum
Operator's Manual
3.2Gal / 12L
Model No.
VHB305M
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Replacement Filters &
Cleva North America, Inc.
Accessories available at:
601 Regent Park Court
Vacmaster.com
Greenville, SC 29607

Advertisement

Table of Contents
loading

Related Manuals for Vacmaster VHB305M

Summary of Contents for Vacmaster VHB305M

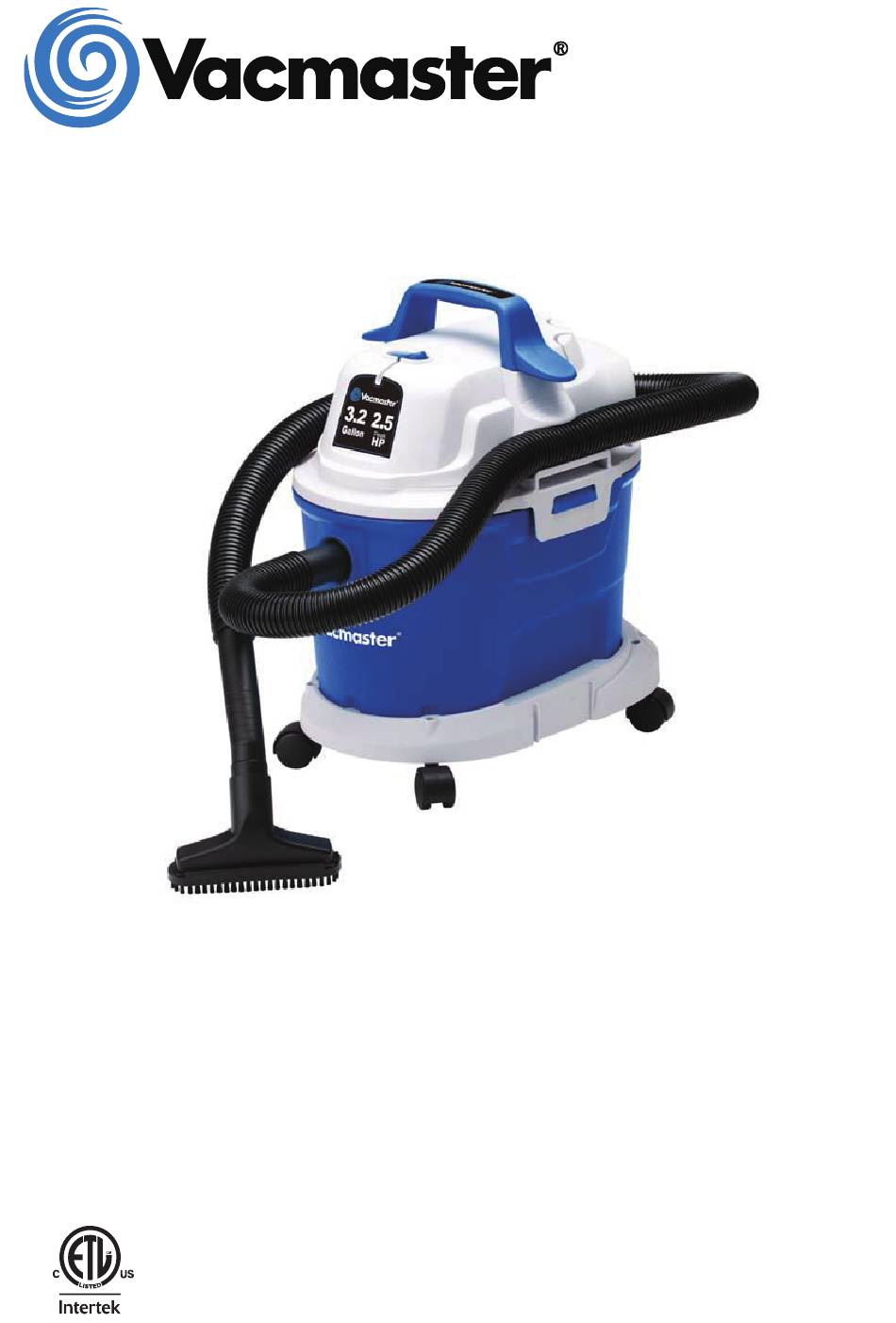

  • Page 1 Wet/Dry Vacuum Operator’s Manual 3.2Gal / 12L Model No. VHB305M FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Replacement Filters & Cleva North America, Inc. Accessories available at: 601 Regent Park Court Vacmaster.com...

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works.

  • Page 4: Double Insulation Instructions

    When using as blower: • Direct air discharge only at work area. • Do not use Wet/Dry Vac as a sprayer. • Do not direct air at bystanders. • Keep children away when blowing. • Use safety goggles. SAVE THESE INSTRUCTIONS DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.

  • Page 5: Extension Cords

    EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner.

  • Page 6: Unpacking & Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List Description ......Q t y. Vac Assembly ......1 Hose..........1 Base..........1...

  • Page 7: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING : DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet (fig.1). 2.

  • Page 8: Dry Vacuuming Operation

    13. Align the two screw holes so that they are over a stud and secure the mounting support to the wall stud, as shown, with the two screws provided (fig.14). 14. Place the wet and dry vacuum cleaner into the support (fig.15). POLARIZED PLUG To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider than the other).

  • Page 9: Liquid Vacuuming Operation

    6. Plug in the power cord into the outlet (fig.7) . 7. Turn the motor on by flipping the switch to the ‘I’ ON position and begin vacuuming (fig.8) . 8. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord from the outlet.

  • Page 10: Blower Operation

    4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet (fig. 6) 5. Turn the motor on by flipping the switch to the ‘I’ ON position (fig.7). 6. After use, empty the collection tank, clean and dry the inside and outside before storage. IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid;...

  • Page 11: Maintenance

    MAINTENANCE 1. Verify that the power cord is disconnected from the outlet (fig.1). 2. Disconnect the hose from the vacuum (fig.2). 3. Undo the latches and remove the power head from the collection tank (fig. 3). 4. Clear all dirt or debris from the collection tank and hose (fig.4). 5.

  • Page 12: Installing &Cleaning Foam Sleeve Filter

    3. Slide reusable cloth filter down over the filter cage making sure the whole cage is covered (fig.2 & 3) . 4. Replace the power head on to the collection tank. REMOVING AND CLEANING REUSABLE CLOTH FILTER 1. With the removed power head in the upside down position, carefully remove foam sleeve filter (fig.

  • Page 13: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION 1) Check power supply – cord, Vacuum will not operate 1) No power supply. breakers, fuses. 2) Unplug and check the power 2) Faulty power cord. cord.

  • Page 14: Exploded View

    EXPLODED VIEW...

  • Page 15: Parts List

    PARTS LIST PART PART NUMBER DESCRIPTION QUANTITY VH57PF.11.00.13 Handle VH80PF.10.00 Power Head Assembly TVQTZS.04.YZ Float VH50P1.10.06 Filter Cage FV9202.02.01.X1.01 Hook VH57PF.20.01.X1.01 Container VH57PF.20.02.X1.01 Base TVQTJL.12.00 Caster V1CT Crevice Tool V1UB Utility Nozzle FV7822.09.00.18 Hose VFF21 Foam Filter VRC2 Cloth Filter V1RB Round Dust Brush V1EW...
