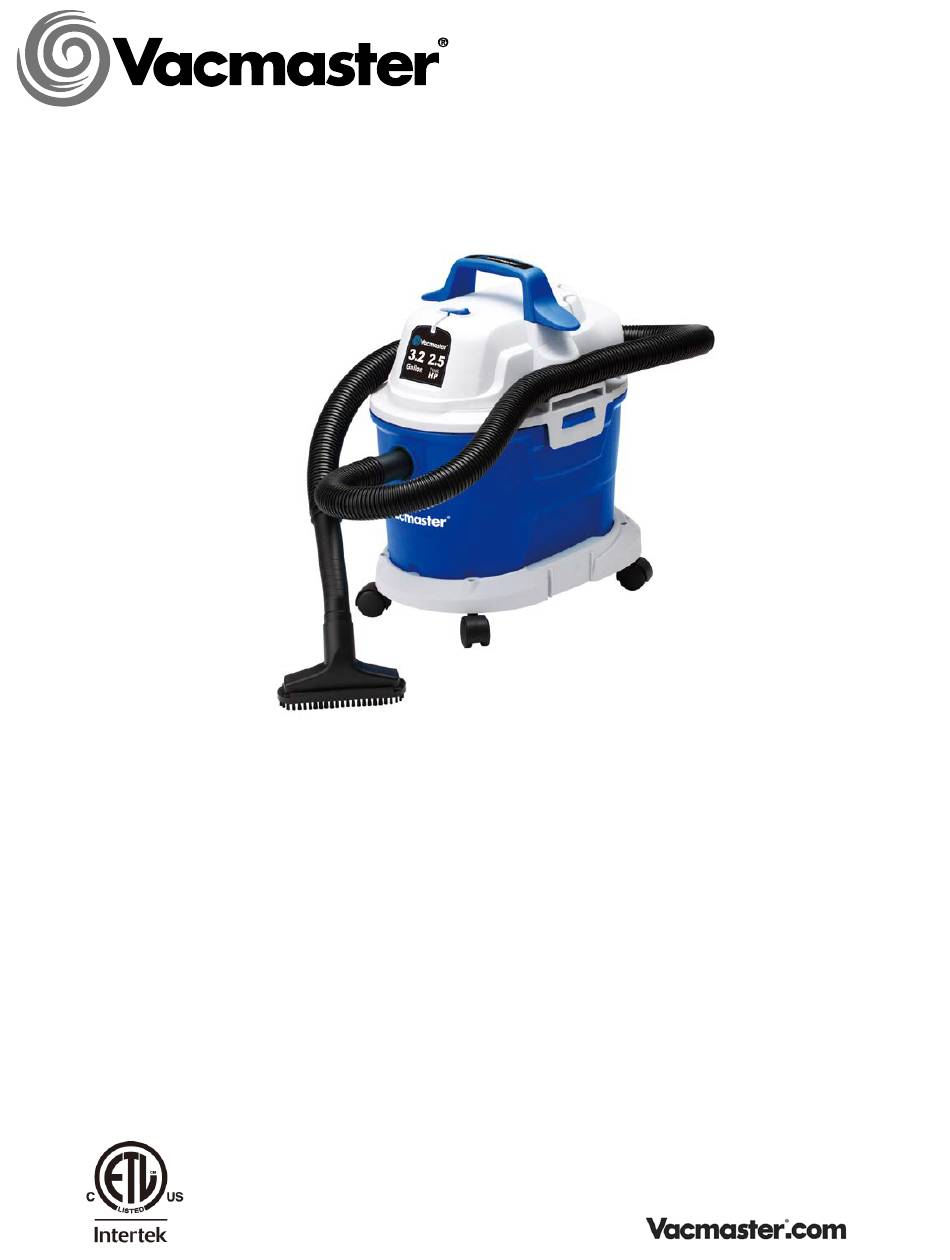

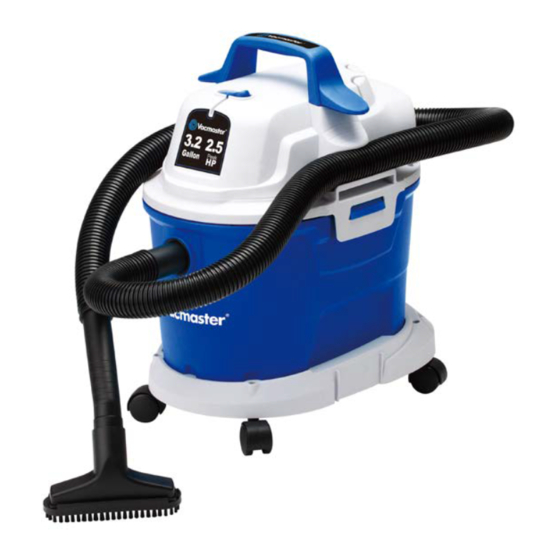

Wet/Dry Vacuums
Operator's Manual
3.2Gal / 12 L
Model No.
VHB305M 0101
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
www.vacmaster.com
Replacement Filters &
Suzhou Cleva Electric Appliance Co., Ltd.
Accessories available at:
NO.8 Ting Rong Street
215122 Suzhou - China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VHB305M 0101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vacmaster VHB305M 0101

  • Page 1 Wet/Dry Vacuums Operator’s Manual 3.2Gal / 12 L Model No. VHB305M 0101 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. www.vacmaster.com Replacement Filters & Suzhou Cleva Electric Appliance Co., Ltd. Accessories available at: NO.8 Ting Rong Street...
  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS WARRANTY We take pride in producing a high quality, durable product. This Vacmaster product carries a limited two (2) ® year warranty against defects in workmanship and materials from date of purchase under normal household use.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works.
  • Page 4: Double Insulation Instructions

    DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.
  • Page 5: Unpacking And Checking Carton Contents

    UNPACKING AND CHECKING CARTON CONTENTS Remove entire contents of carton. Check each item against the carton contents. Carton Contents List Description ........Qty Vac Assembly ........1 Hose ...........1 Base ..........1 Casters ..........4 Utility Nozzle ........1 Crevice Tool ........1 Floor/Squeegee Nozzle ......1 Round Dust Brush ......1 6 Screws (Bag) ........1 Extension Wands ........3...
  • Page 6: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screwdriver is required. WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet. (fig.1) 2.
  • Page 7: Dry Vacuuming Operation

    POLARIZED PLUG To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
  • Page 8: Liquid Vacuuming Operation

    LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘IMPORTANT SAFETY INSTRUCTIONS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO;...
  • Page 9: Blowing Operation

    BLOWING OPERATION This Wet/Dry Vac has blowing capabilities only when the hose is inserted into the blowing port. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER. WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
  • Page 10: Installing &Cleaning Reusable Cloth Filter

    NOTICE! The filter included is made of high quality material designed to stop small dust particles. The filter should be used for dry pick-up only. A dry filter is necessary to pick up dust. If the dust filter is wet, it will clog quickly and be very difficult to clean.
  • Page 11: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-UNPLUG BEFORE TROUBLESHOOTING. Symptom Possible Causes Corrective Action 1) No power supply. 1) Check power supply – cord, breakers, fuses. 2) Faulty power cord. 2) Unplug and check the power Vacuum will not operate. cord.
  • Page 12: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST PART PART NUMBER DESCRIPTION QUANTITY Handle assembly 551098104 Power Head Assembly 551012115 Water seal cup assembly 551012116 Filter cage Mounting rack assembly 551098106 Tank 551012104 Suction seat 551357103 Deck Screw ST3.9*16 551017125 551091105 Small front caster 551098111 Rack holder assembly 551004113...
