Replacing The System Board; Procedure - Dell Inspiron 24 5000 Service Manual

Identifier
Status
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your
your computer. For more safety best practices, see the Regulatory Compliance home page at
regulatory_compliance.
NOTE: Your computer's Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program
after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must
make the appropriate changes again after you replace the system board.
Identifier
Status

Procedure

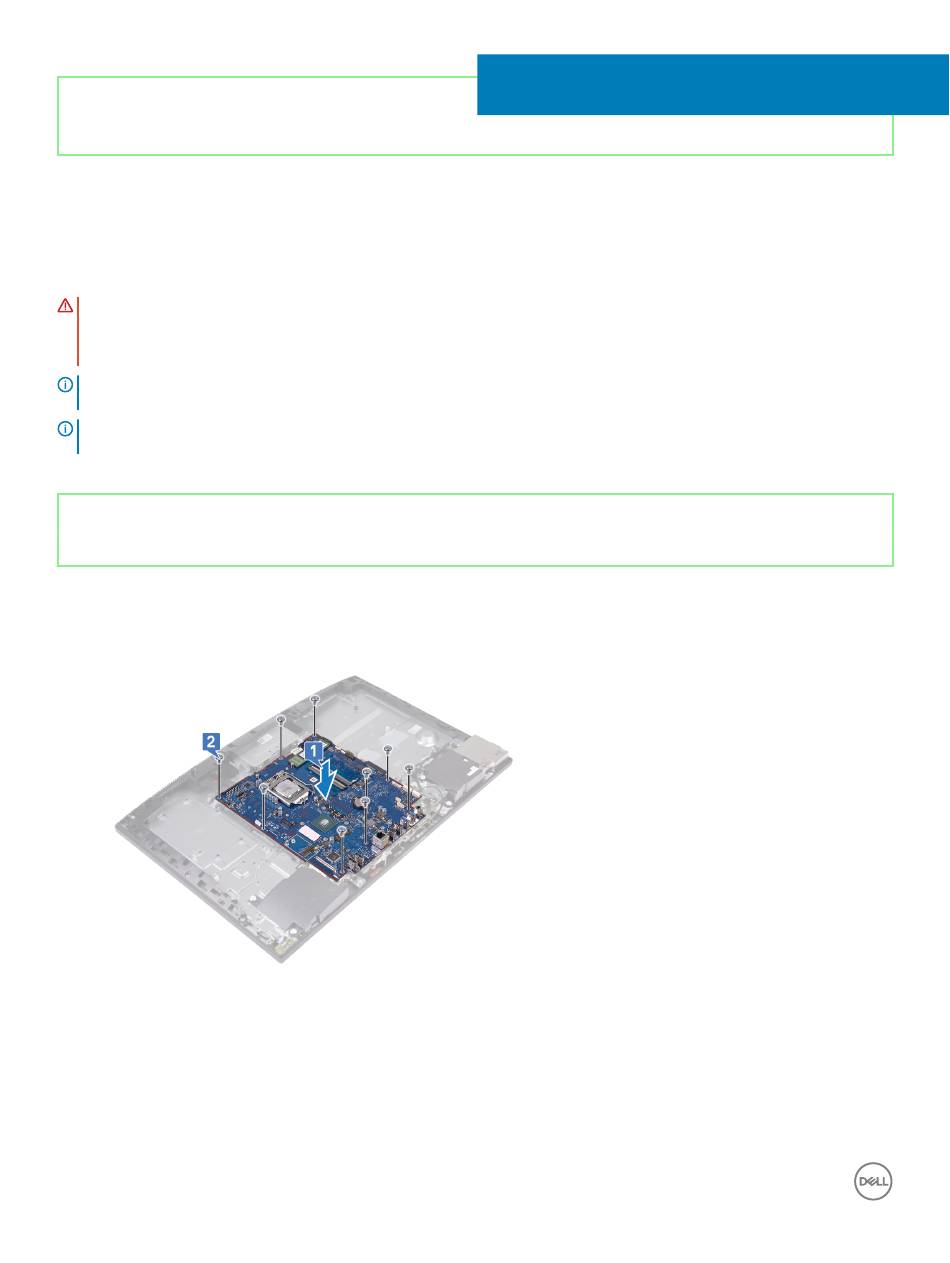

1 Align the screw holes on the system board with the screw holes on the display-assembly base.
2 Replace the nine screws (M3x5) that secure the system board to the display-assembly base.
3 Connect the power-adapter cable to the system board.
4 Connect the display-backlit cable to the system board.
5 Connect the camera cable to the system board.
6 Connect the side-I/O cable to the system board.
7 Connect the side-I/O power cable to the system board.
8 Connect the headset-port board cable to the system board.
9 Connect the speaker cable to the system board.
88

Replacing the system board

GUID-67274E98-E2F1-4B7B-A903-F38BA6B62028
Released
Replacing the system board
computer. After working inside your computer, follow the instructions in
GUID-42EB252F-9330-4CCE-82DE-75948F756EDF
Released
45
After working inside
